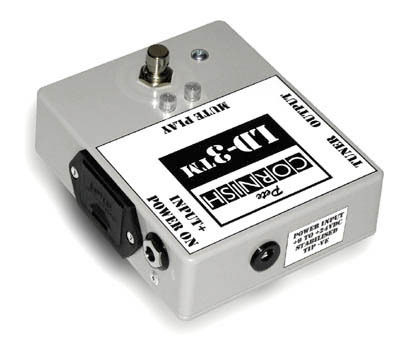

Pete Cornish LD-3 Line Driver

TWO CORNISH PEDALS TOTAL TO A CUSTOMER !! PLZ DO NOT EBAY FOR PROFIT !! THERE TO BE USED !!


Our low noise discrete component Class A
pre-amplifier has been specifically designed to overcome the problems
often encountered with amplification of Electric Instruments fitted with
magnetic transducers. The usual cause of these problems is the mismatch
of the impedance in the electrical circuit between the pickup and
subsequent equipment: this mismatch has been completely eliminated with
the introduction of our LD-3™ Line Driver/mute/Tuner Feed unit.


The input impedance is identical to a high quality tube
amplifier and our Class A Pre-amplifier also features a highly effective
RF filter which will help prevent interference from nearby radio
transmitters.


The pickup output should be connected directly to the
Line Driver input with a short, low loss, screened cable; the Line
Driver output can now be fed to any effects or volume pedals (if used)
and then on to the amplifier, using fully screened cables, of any
length, throughout.


Also fitted is an auxiliary output, which may be used to
feed a signal to a Tuner; this signal is identical to the main Output
signal but has additional isolation components to ensure that
interference signals, which may be generated in a tuner, are not fed
back to the amplifier. The Tuner Feed signal is permanently active.


The heavy-duty footswitch controls the signal sent to
the main “OUTPUT” jack and provides a complete shutdown of the audio
signal path when set to “MUTE”


FEATURES:


Triple purpose: Line Driver, Tuner Feed and Mute in one convenient package: compact size housing 100 x 120 x 36mm


Each unit is hand built, wired and tested by Pete and Lynda Cornish.


Heavy Duty all-metal footswitch with Daylight Visible LED's.


Easy battery is replaceable via the removable
“drawer”. The battery is switched on when you insert the “INPUT / PWR
ON” jack and to ensure long battery life unplug this lead when the unit
is not in use. If the unit is not to be used for a long length of time,
or to be adapter powered, we recommend that you remove the battery.
Preferred battery types are MN1604.


Also fitted is an input for a DC adaptor: the size of
the coax connector is 5.5/2.1mm and the center pin is negative (-VE).
The adapter should be noise free, fully stabilized at 9V DC and capable
of supplying 20mA. We recommend the use of Voodoo Lab Pedal Power 2 Plus
adapter as meeting the above criteria and cannot accept any liability
for damage caused to this unit by the use of, or to, any other type of
DC adapter. An adapter proving an output of an AC voltage should NOT be used. If only a single unit is to be powered the BOSS PSA series may be more cost effective and is also recommended.


IMPORTANT NOTE:


This unit is capable of being used with any stabilized, noise free supply voltage between 9Vdc and 24Vdc.


Using a 9Vdc adapter the performance will be identical to when Battery powered.


Using a fully smoothed and regulated AC/DC adaptor
with an output voltage of 24vDC Maximum, and capable of supplying 20mA,
the signal performance of the unit will be as show below.


Please do not use an adaptor with a higher output
voltage than the specified 24vDC maximum, or of reversed polarity, as it
may damage the LD-3™. An adapter with an AC voltage output should NOT be used as it will permanently damage the LD-3™. Damage caused by the use of the incorrect adapters mentioned above will not be covered under the terms of our warranty.
