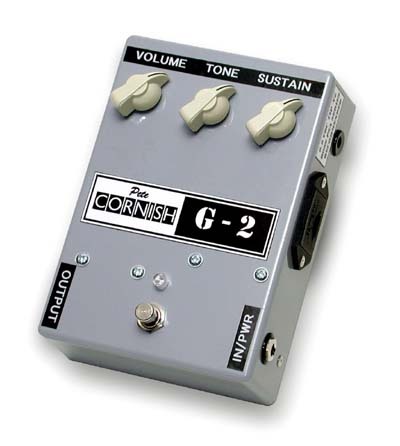

Pete Cornish G-2

TWO CORNISH PEDALS TOTAL TO A CUSTOMER !! PLZ DO NOT EBAY FOR PROFIT !! THERE TO BE USED !!


The Pete Cornish G-2 has been hailed as the most original sounding
distortion unit available to guitarists in the Rock Arena. It has a four
stage overdriven discrete transistor Class A circuit with additional
Germanium components that generate much warmer sounding harmonics than
anything else on the market. Within the huge tone generated by this
unit, the original guitar sound and dynamics are present creating a much
more musical effect than any other distortion pedal. The input to this
unique device is our universally acclaimed High Impedance, Unity Gain,
Class A, Buffer Preamp with it's superior RFI rejecting capability (to
eliminate Radio Station interference) and Low Impedance Audio output,
allowing the use of extended cable runs from the G-2 in bypass mode. The
fixed High Impedance load presented to the Guitar allows the pickups to
operate at their optimum, even when several effects units are connected
after the G-2. The Unity Gain Buffer also prevents "Ghost Distortion"
being audible in Bypass Mode. This effect unit gets the most benefit
from being fed into a clean, full frequency response amplifier and I
recommend that when you receive your pedal you connect it up without
anything else in line, just Guitar/Pedal/Amp, and discover the way the
controls interact, both with themselves and the guitar/amp controls.
Then adding the rest of your effects, you may find that you need to make
slight adjustments to these as they are now being fed with a constant
signal when the G-2 is in Bypass Mode. FEATURES:


High Impedance RFI rejecting input and bypass buffer.
Each unit is hand built, wired and tested by Pete and Lynda Cornish.
Housed in a Rugged Die-cast box with ‘Chicken-Head' pointer knobs.
Heavy Duty all-metal footswitch with Hi-Brite, low power consumption LED.
Easy battery replacement via the ‘drawer'. The battery is switched
on when you insert the “IN/PWR” jack and to ensure long battery life
unplug this lead when the unit is not in use. If the unit is not to be
used for a long length of time we recommend that you remove the battery.
Preferred battery type is Alkaline. The power consumption is very low:
only 3mA in bypass mode and 4mA when the activated thus ensuring
extended battery life.
Also fitted is an input for a DC adaptor: the size of the coax
connector is 5.5/2.1mm and the centre pin is negative (-VE). The voltage
rating of the adaptor should be noise free, fully stabilised at 9.6V
and capable of supplying 20mA. We recommend the use of the BOSS PSA
series adaptors (PSA-100/110/220 or 240 depending on your local AC
supply voltage) as meeting the above criteria and cannot accept any
liability for damage caused to this unit by the use of any other type of
AC/DC adaptor.
