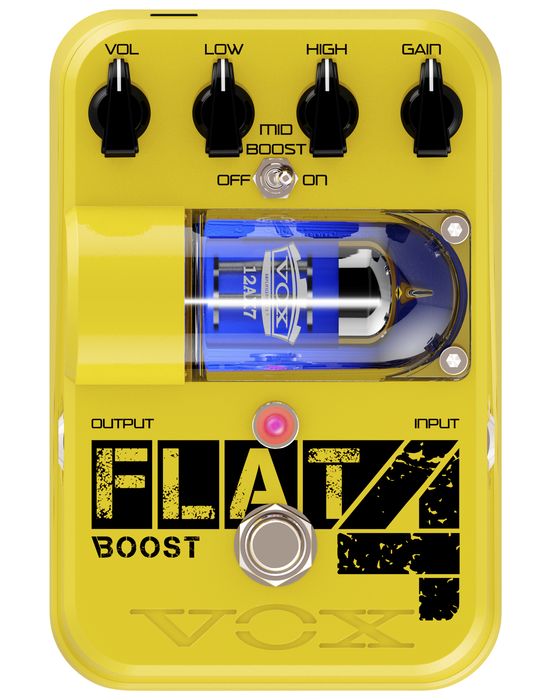

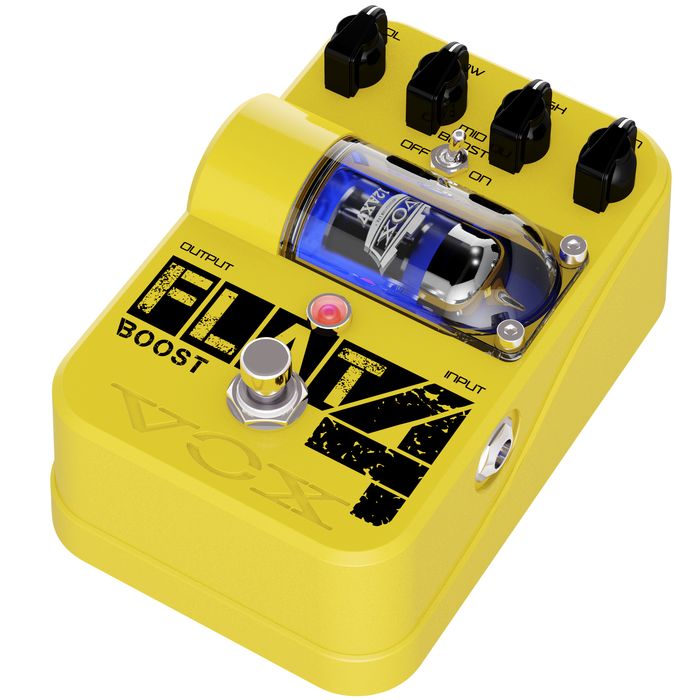

Vox Tone Garage Flat 4 Boost

Vox Tone Garage Flat 4 Boost

A versatile full-range booster
This vacuum tube booster can be used for a mid-boost, treble-boost, and overdrive, in addition to a full-range boost. Its Baxandall tone circuit allows adjustment from the flat position to the desired boost or cut range. Raising the gain will gradually apply a low-cut, giving you an overdrive sound that's strongly reminiscent of sought-after vintage tones. An independent mid-boost switch lets you switch the response of the mid-range, which is ideal for playing lead. This is a great unit for blues guitarists who wish to highlight their picking nuances.


Newly-developed Hi-Volt technology that overturns expectations for compact effect units
Hi-Volt technology enables the vacuum tube to operate at 200V while still running on a battery. This enables a true tube-driven sound that overturns your expectations for a compact effect unit.


What is Hi-Volt?
VOX has revealed a new vacuum tube circuit technology called Hi-Volt. It delivers high voltage (200V) to a 12AX7 vacuum tube by using 6x AA batteries or the DC9V power supply.


The discrete circuit works at 20V, which is still considered high voltage operation compared to other general effects products. The result is a natural and dynamic tone which is similar to that of a vacuum tube amplifier. Even though vacuum tubes are considered big by modern component size standards, our engineers were able to keep these pedals small, so you don’t have to worry about them taking up too much space on your pedal board.


Gain control that lets you vary the character of your sound
The transistor amplification circuit has also received a good deal of consideration. We've designed the gain control so that adjusting its position does not simply change the amplitude, but will also change the tonal character in a subtle way. From zero to max, it yields an array of highly usable and natural overdrive tones.


Carefully designed power supply circuit that extends vacuum tube lifespan
Since high current flows through a vacuum tube when the power is turned on, we have provided a heater current slow start circuit that extends the lifespan of the vacuum tube and also avoids malfunctions for the AC adapter.

Vox Tone Garage Flat 4 Boost Features:

Discrete circuitry - the result of a relentless design philosophy
True bypass design provides tonal confidence even when the effect is off
Tough die-cast body that stands up to the rigors of the road
Newly developed Hi-Volt technology allows the tube to operate at 200V, even on battery power
Gain control lets you adjust the tonal character
Heater current’s slow start circuit ensures vacuum tube longevity
Full range booster that delivers true vacuum tube sound
An independent mid-boost switch lets you switch the response of the mid-range
Input impedance: 1M Ω
Output impedance: 2.2k Ω
Vacuum tube: ECC83 / 12AX7
Connections: INPUT jack (guitar input), OUTPUT jack (line output)
Power: AA battery x 6
AC adapter: DC 9V (Option)
Vacuum tube operating voltage: 200 V
Consumption current: 240 mA
Battery Life: Approximately 7 hours
Dimensions: (W x D x H): 87 x 132 x 63 / mm, 3.43 x 5.20 x 2.48 / inch
Weight: 420 g / 14.81 oz (not including battery)
Accessories: AA alkaline battery x 6 (for verifying operation)
Options: AC Adapter
