Shure PSM400 SE115-CL Hardwired Pack

Shure


Provides simple configuration of a personal monitor mix in high fidelity.

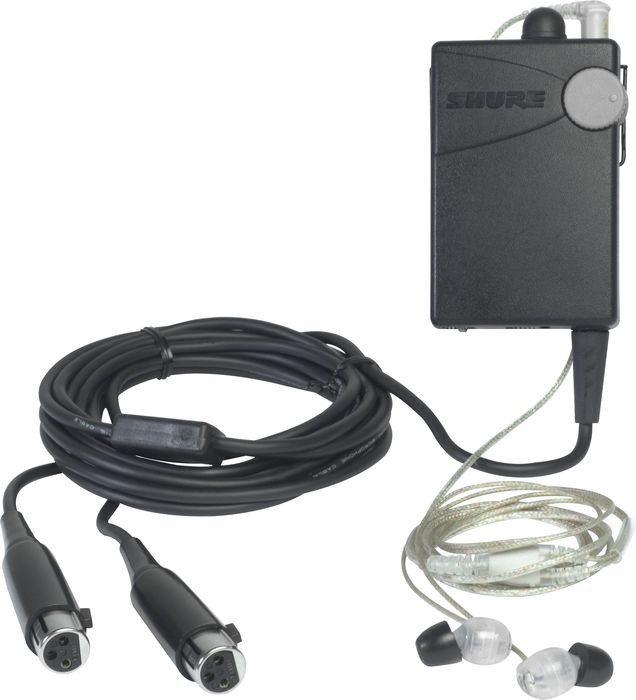

The Shure PSM400 SE115-CL Hardwired Pack includes
a P4M personal monitor mixer, a P4HW personal monitor bodypack and a
set of SE115-CL noise canceling earphones. This pack provides simple
configuration of a monitor mix, enabling the user to customize an
individual mix in a multiple mix environment.

P4M four channel personal monitor mixer
The
P4M is a highly versatile four-channel, two-bus stereo mic/line mixer
designed to optimize use of personal (in-ear) monitors. It features four
balanced mic/line inputs, each with level and panning controls.
Corresponding XLR split outputs allow input signals to pass through the
unit unaffected, while providing an independent mix.

P4HW personal monitor bodypack
Three monitoring modes are available - mono, stereo, and MixMode.
•Mono: The bodypack receives one signal from the mixer and sends that signal to both earphones.
•Stereo: The
bodypack receives two signals (L and R) from the mixer and sends the
signals to the left and right earphones, respectively. The balance knob
adjusts the balance between the left and right earphones.
•MixMode: Allows
the performer to easily adjust the monitor mix during the performance.
In Mix- Mode, the bodypack receives two signals, such as a band mix and a
vocal mix. The balance knob adjusts the mix of these two signals. The
mixed signal is sent to both the left and right earphones. For example,
if the band is overpowering the vocals in the mix, the vocal levels can
be increased and the band mix level decreased by simply adjusting the
balance knob.

SE115-CL sound isolating earphones

The
compact SE115-CL is a perfect introduction to the stunning performance
of Shure earphones. Second Generation Dynamic MicroDrivers deliver
warm, detailed sound with resonant bass. This clear model has a 64-inch
fixed cable making it ideal for stage use or other low-profile
applications.




Features
P4M

Frequency Response: (Ref 1 kHz, controls centered) 20 Hz to 20 kHz ± 2 dB
1/2 rackspace
4 level controls
4 balance controls
4 XLR/1/4" mic/line inputs
2 - 1/4" TRS aux inputs
4 split controls
2 XLR/1/4" TRS mix outputs
External power supply

P4HW

Attached input cable, High-impact plastic chassis
Operating Controls: Operating mode (Stereo, Mono, MixMode), Volume
& Balance knobs, Defeatable limiter, High-frequency boost, -15 db
Pad
Backlit LCD Indicators: Battery life, Input level, Operating mode

SE115-CL

Speaker Type: Dynamic MicroDriver II
Sensitivity (1mW): 105 dB SPL/mW
Impedance (1kHz): 16 Ω
Frequency Range: 22Hz – 17.5kHz
Cable Length: 64 inch fixed cable




If you play drums or keys or don't want to go wireless, order yours today.





PSM400 SE115-CL Hardwired Pack Specifications:


Frequency Response: 20 to 20,000 Hz
Total Harmonic Distortion: < .1% (measured at -10 dBu out)
Channel Separation: 35 dB (minimum)
Signal-to-noise ratio: 85 dB (minimum)
Maximum Output Level: +5 dBu at 1% THD
Maximum Input Level: +7 dBu, input pad OFF
+22 dBu, input pad ON
Actual Input Impedance: > 40 kilohms
Audio Output Connector: 3.5 mm stereo (left=tip, right=ring, ground=sleeve)
Power Requirements: 9 V Alkaline battery
Battery Life: Up to 8 hours, volume dependant
Phantom Power Protection: Up to 60 VDC
