Apogee Digital Interconnects 110 Ohm Digital Cable DA-16 AES

Breakout/interface cables for specific Apogee convertor products.




A number of specialized breakout and interface
cables are available from Apogee. These are typically designed for
Apogee converter products in which multiway connectors are used to get a
large number of inputs or outputs into a single connector. At the other
end of the cable, usually 1m (3.28') in length, will be standard
connectors, such as XLRs.

AES-16-DIGI-IFC:
For use with: Connecting the AD-16 and the DA-16 to the Digidesign 192 Digital
Format: AES/EBU In/Out
A
16-channel AES digital Input/Output cable for Digi HD Systems. The
AES-16-DIGI-IFC is needed to connect Apogee's AD-16 and DA-16 to the
Digidesign 192 Digital. The AES-16-DIGI-IFC is a special cable designed
specifically for this purpose. Each connector is labeled to indicate the
unit to which it should be connected. There are a total of four DB-25
connectors on this cable. One goes to the AD-16 AES output, one goes to
the DA-16 AES input, and two connectors are for the 192 Digital. You
will need two the digital option cards for the DA-16 to use 16 channels
of AES.

AES-8-DIGI-IFC:
For use with: Rosetta 800
Format: AES In/Out, Yamaha Pin Out
DB 25 Male To 4-XLRM/4XLRF
An
8-channel AES digital Input/Output Cable for Digi HD Systems. Eight
channel AES3 input/output connection with 4 Neutrik XLR male and 4
Neutrik XLR female connectors to a DB-25 multipin connector with a metal
shell for improved grounding and RF rejection. This cable provides 8
channels of AES input and output as per the AES standard. Provides 4
AES/EBU XLR inputs and 4 AES/EBU XLR outputs to a DB-25 multipin
connector for Rosetta 800 and any other device that supports the Yamaha 8
channel digital In/Out wiring format.

AES8-IFC:
For use with: Rosetta 800
Format: AES/EBU In/Out
Eight
channels of AES/EBU input/output connection with 4 Neutrik XLR male and
4 Neutrik XLR female connectors to a DB-25 multipin connector with a
metal shell for improved grounding and RF rejection. This cable provides
8 channels of AES input and output as per the AES standard. Thumbscrews
are 2.6mm. Provides 4 AES/EBU XLR inputs and 4 AES/EBU XLR outputs to a
DB-25 multipin connector for the Rosetta 800 and any other device that
supports the Yamaha 8 channel digital In/Out wiring format.

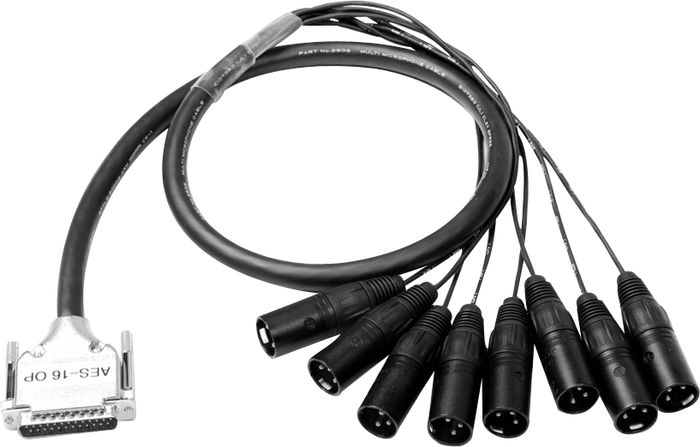

AD16-AES-IFC:
For use with: AD-16X
Format: AES/EBU In/Out
Sixteen
channel AES/EBU output connection with 8 Neutrik XLR male connectors to
a DB-25 multipin connector with a metal shell for improved grounding
and RF rejection. This cable provides 16 channels of AES output as per
the AES standard. Thumbscrews are 2.6mm. Provides 8 AES/EBU XLR outputs
to a DB-25 multipin connector for the AD-16X. Provides 16 channels of
AES/EBU output.

DA16-AES-IFC:
For use with: DA-16X
Format: AES/EBU In/Out
Sixteen
channel AES/EBU input connection with 8 Neutrik XLR female connectors
to a DB-25 multipin connector with a metal shell for improved grounding
and RF rejection. This cable provides 16 channels of AES input as per
the AES standard. Thumbscrews are 2.6mm. Provides 8 AES/EBU XLR inputs
to a DB-25 multipin connector for the DA-16X.






Got to many cables coming in and out of your Apogee converter? Pick
up one of these breakout/interface cables to organize that mess into one
connector.
