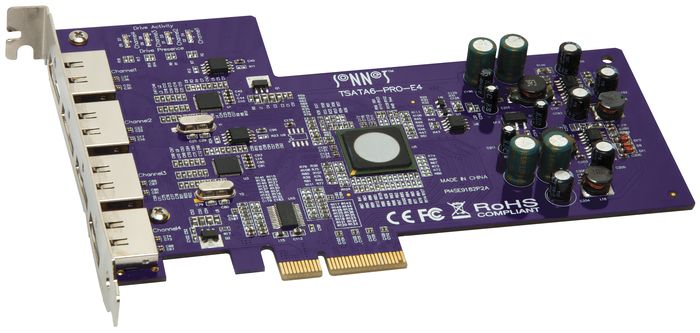

Sonnet Tempo SATA Pro 6Gb PCIe 2.0 - 4-port eSATA Host Controller Card

Sonnet


4-Port 6 Gb/s SATA solution for Mac & PC desktops with PCIe slots.




Why choose an eSATA card? External storage and
professional SSD readers often have two or more interfaces from which to
choose, including FireWire®, USB, and eSATA. Your computer has USB
ports, may have FireWire ports, and maybe even a Thunderbolt port, too.
So if you can just plug into your computer's existing ports, why
consider an eSATA card? Performance and cost. Consider the facts that
the 6 Gb/s eSATA interface offers superior throughput to that of all
FireWire and USB interfaces, and Thunderbolt storage systems carry a
price premium over eSATA storage systems. Sonnet's Tempo SATA Pro 6Gb
4-Port card is a cost-effective way to add four high-performance
bootable eSATA ports to your computer so you can take advantage of this
fast interface.

Sonnet's Tempo SATA Pro 6Gb 4-Port's fast, 6 Gb/s
eSATA interface easily handles the increased bandwidth requirements of 6
Gb/s SSDs. Built around a second generation 6Gb SATA chipset, it offers
greatly improved performance over older 6 Gb eSATA cards and is capable
of transferring files from a single SSD at up to 500 MB/s. Even greater
performance (up to 1,300 MB/s!) is possible when you connect four SSDs
and format them as a RAID 0 set. Increased onboard cache enables this
Sonnet controller to perform even better in the latest computers as well
as in Sonnet's Echo™ Express Thunderbolt Expansion Chassis for PCIe
cards or xMac™ mini Server.




Features

Cost-effective solution for adding high-performance 6 Gb/s eSATA ports to your Mac Pro or desktop PC
PCI Express 2.0 x4 host bus interface and high-performance SATA controller
Superior performance with aggregate data transfers speeds up to 1300 MB/sec
Supports OS X and Windows RAID features
Supports drive hot-swapping under OS X®
Supports booting from attached drives OS X and Windows 7 and 8 (see Tech Specs for details)
Supports ATAPI (DVD-ROM) drives
AHCI compliant—no drivers required
Supports S.M.A.R.T. data reporting




Add eSATA connectivity to your Mac or PC today!








Tempo SATA Pro 6Gb PCIe 2.0 - 4-port eSATA Host Controller Card Specifications:


Mac Compatibility
Mac Pro
Xserve (with PCIe slots)6
Power Mac® G5 (with PCIe slots)
OS X 10.5+
OS X Server 10.5+
OS X Mountain Lion compatible
Windows Compatibility
PC (with PCIe slots)(3)
Windows® 8
Windows 7
Windows Vista
Hardware
Warranty 5-year
Bus Interface PCI Express 2.0 x4
External Connectors Four locking eSATA
Drives Supported Up to 16(1)
Data Transfer Rate Up to 1,300MB/sec(2)
Drive Types Supported SATA 6 Gb/s, SATA 3 Gb/s, and SATA 1.5 Gb/s
Advanced Features
Supports ATAPI (CD/DVD) drives
Supports port multipliers under Windows 8, 7, and Vista
Supports S.M.A.R.T. status data reporting
Supports Spread Spectrum Clocking for compatibility with all SATA drives and for lower EMI emissions
RoHS Compliant Yes
Package Contents
Tempo SATA Pro 6Gb 4-Port host controller card
Documentation
