Astatic by CAD Gooseneck Cardioid Extended Frequency Condenser Mic

Ideal podium mic for houses of worship and meeting rooms.




The Astatic 910B, 915B and 920B are low-noise,
cardioid, condenser, mini-gooseneck microphones. They are ideal for use
in houses of worship, government, corporate meeting rooms and public
address. Their wide, smooth frequency response characteristics provide
natural, articulate and transparent sound. The microphone's cardioid
polar pattern minimizes annoying feedback when used close to sound
reinforcement speakers and monitors, while reducing the pickup of
unwanted off-axis sources. Their advanced, transformless electronics are
self-contained to simplify installation.

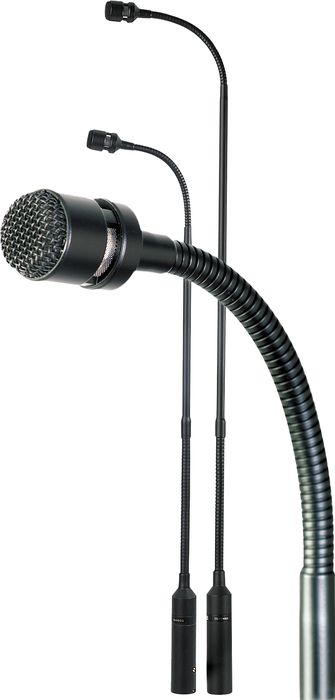

The Astatic 910B, 915B
and 920B microphones include a solid center section with flexible
goosenecks at the top and bottom. The top gooseneck is 1/4" [6mm] in
diameter and the bottom gooseneck is 19/32" [8mm] in diameter. The 910B
mic utilizes a single 1/4" [6mm] diameter gooseneck. The goosenecks are
well-lubricated, silent in operation while maintaining strong positional
memory. The overall length of the 910B is 10 15/16" [262mm], the 915B
is 15 9/16" [395mm] and the 920B is 20 7/16" [519mm]. The durable
matte-black non-reflective paint assures an unobtrusive installation.
The foam windscreen is included. Standard P12, P24, or P48 phantom power
is required.




Features

Silent, durable, flex pipe design with strong positioning memory
Wide, smooth frequency response
Quick-mount format
Balanced transformerless output circuitry
Non-reflective matte-black finish




Easy positioning and smooth response make it perfect for public address applications. Order today.








Gooseneck Cardioid Extended Frequency Condenser Mic Specifications:


Operating Principle: Condenser
Polar Pattern: Cardioid
Frequency Response: 150Hz - 20kHz
Impedance: 440 ohms
Self Noise: 26dBA
Max SPL: 132dB, 1% THD
Power Requirements: P12, P24, P48, 5mA
Polarity: Positive pressure on diaphragm corresponds to positive voltage on pin 2 relative to pin 3
Finish: Durable matte-black urethane
Net Weight [Mass]: 915B: 4.2 oz [120 g]

Optional Accessories
GSM-1: Shock mount
FM-1A: Flange with 3-pin female XLR stem mount
FM-2A: Locking flange mount with 3-pin female XLR

Architects' and Engineers' Specification
The
microphone will be a mini-gooseneck condenser type. The frequency
response will be 150Hz - 20KHz. The microphone will have a cardioid
polar pattern. The sensitivity of the microphone will be -32dBV (25mV) @
1Pa. The microphone will have a 3-pin male XLR connector which also
contains the transformerless electronic circuitry. The microphone will
operate from standard P12, P24, or P48 phantom power. The dimensions of
the microphone will be 19/32" [15mm] in diameter for the head, and 3/4"
[19mm] in diameter for the connector. The upper gooseneck of the 915B
will be 1/4" [6mm] in diameter. The lower gooseneck of the 915B will be
5/16" [8mm] in diameter. The overall length will be 15-9/16" [395mm] for
the 915B. The net weight will be 4.2oz [120g] for the 915B. The 915B
will have a durable matte-black urethane finish. A foam windscreen will
be supplied as an accessory.
