Astatic by CAD AMC Omni Dynamic Mic With Push-to-Talk Switches

Éxtremely rugged and reliable, made to provide years of service.

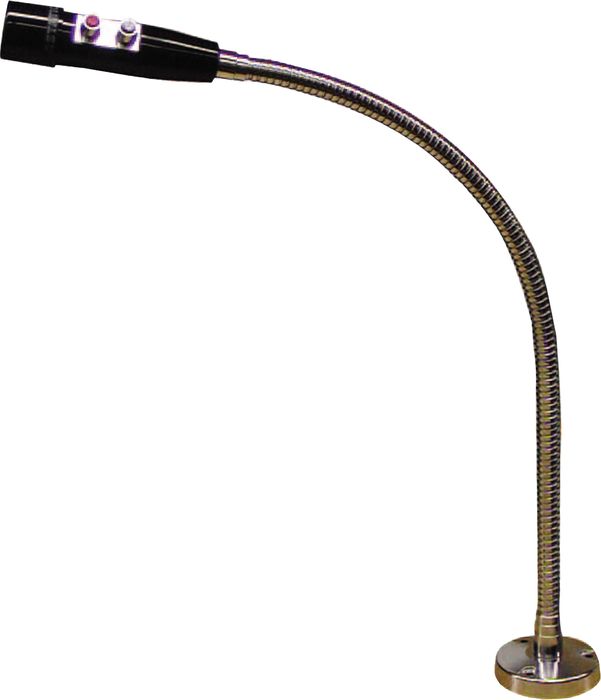

The Astatic AMC105-2 is a dual-zone
omnidirectional microphone designed especially for fixed or gooseneck
mounting in quality sound installations. A smooth, wide band frequency
response with a slight presence boost at 2kHz, gives a natural, crisp,
highly intelligible sound. Two DPDT sealed micro switches, with
color-coded buttons for easy identification, permits paging in two
areas, and an all-call feature is obtained by depressing both buttons
simultaneously. The AMC105-2 microphone is extremely rugged and
reliable, and will stand up under the most strenuous handling conditions
to provide years of dependable service.

The dynamic mic is
supplied with 5/8" 27-thread mounting, 7' of rugged, synthetic jacketed
four-conductor, two-shielded cable. Black Cycolac cap, chrome-plated
screen and black Cycolac housing. A removable set screw is used to
secure the front cap to the microphone housing and microphone to the
gooseneck.






Crisp, clear speech reproduction at a cost-effective price. Order today.








AMC Omni Dynamic Mic With Push-to-Talk Switches Specifications:


Low-impedance, wired normally open
19" heavy-duty gooseneck
2-3/4" heavy-duty flange
Operating Principle: Moving Coil Dynamic
Directional Pattern: Omnidirectional
Frequency Response: 150Hz - 10KHz
Sensitivity: -56 dBV (1.6 mV) @ 1 Pa
Impedance: 550 ohms
Output Level: -76 dB (0dB = 1 volt / microbar) ,1.58mV/PA
Cable: 7' of four-connector, two-shielded, permanently attached, rugged jacketed cable
Switch: DPDT professional sealed micro switches, operated with simple push buttons
Dimensions: 1-3/8" diameter x 4-9/16"
Weight: 7oz.
Finish: Black Cycolac cap, chrome plated screen, black cycolac housing
Phasing:
Positive pressure (movement of the diaphragm inward) will generate a
positive voltage on the red cable lead with respect to the black cable
lead
Cable connections: Connect cable leads red and black to
balanced line input, white and shield (red button) for relay control for
one zone, green and shield (black button) for relay control for the
other zone
