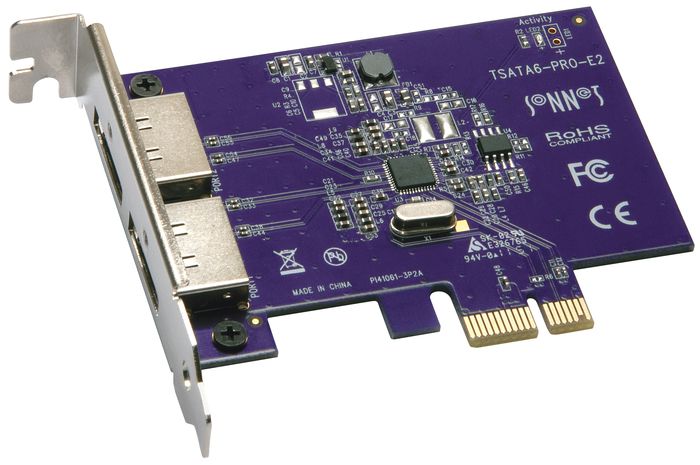

Sonnet Tempo SATA Pro 6Gb PCIe 2.0 - 2-Port eSATA Host Controller Card

Sonnet


2-Port 6 Gb/s SATA solution for Mac & PC desktops with PCIe slots.




Why choose an eSATA Card? If you're planning to
connect external storage to your computer, there's a good chance the
enclosure will have two or more interfaces from which to choose,
including USB, FireWire, and eSATA. Your computer has USB ports, may
have FireWire ports, and maybe even a Thunderbolt™ port, too. So if you
can just plug into your computer's existing ports, why consider an eSATA
card? Consider the facts that the 6 Gb/s eSATA interface offers
superior performance to that of FireWire 800 and all USB interfaces, and
Thunderbolt storage systems carry a price premium over eSATA storage
systems. Sonnet's Tempo SATA Pro 6Gb PCIe 2.0 card is cost-effective
solution for adding two high-performance eSATA ports to your computer so
you can take advantage of this speedy interface.

Improved Performance
Tempo
SATA Pro 6Gb PCIe 2.0 is versatile. Its fast, 6 Gb/s eSATA interface is
well suited to deal with the increased bandwidth requirements of 6 Gb/s
SSDs. Built around a second generation 6Gb chipset, it offers greatly
improved performance over older 6 Gb/s eSATA cards and is capable of
transferring files at up to 375 MB/s! This Sonnet controller also
performs better in the latest computers, Sonnet's Echo™ Express
Thunderbolt Expansion Chassis for PCIe Cards, and Sonnet's xMac™ mini
Server 1U Rackmount PCIe Expansion System with Thunderbolt Ports.




Features

Cost-effective solution for adding two high-performance 6 Gb/s eSATA
ports to your Mac Pro, desktop PC, or server with PCI Express 2.0 slots
Supports single SATA drive enclosures and multi-bay SATA drive enclosures (see Technical Specifications)
Superior performance with data transfers up to 375 MB/s
Perfect for use in Sonnet's Echo Express Thunderbolt Expansion Chassis for PCIe Cards
Supports drive hot-swapping under OS X
Supports booting from attached drives under Microsoft Windows® 7
AHCI compliant—no drivers required




Add eSATA connectivity to your Mac or PC today!








Tempo SATA Pro 6Gb PCIe 2.0 - 2-Port eSATA Host Controller Card Specifications:


Mac Compatibility
Mac Pro
Xserve (with PCIe slots)(2)
Power Mac® G5 (with PCIe slots)
OS X 10.5+
OS X Server 10.5+
OS X Mountain Lion compatible
Windows Compatibility
PC (with PCIe slots)
Windows® 8
Windows 7
Windows Vista®
Windows Server 2012
Windows Server 2008 R2
Hardware
Warranty 5-year
Bus Interface PCI Express 2.0 x1
External Connectors Two locking eSATA
Drives Supported Up to 8(1)
Data Transfer Rate Up to 375 MB/s
Drive Types Supported SATA 6 Gb/s, SATA 3 Gb/s, and SATA 1.5 Gb/s
Advanced Features
Supports booting from attached drives under Windows 7
Supports drive hot-swapping under OS X
Supports ATAPI (CD/DVD/Blu-ray) drives
Supports port multipliers under Windows 7 and Vista
Supports S.M.A.R.T. status data reporting
Supports Spread Spectrum Clocking for compatibility with all SATA drives and lower EMI emissions
RoHS Compliant Yes
Package Contents
Tempo SATA Pro 6Gb 2-Port host controller card
Half-height bracket
Documentation
