Shure PSM 200 Wireless Personal Monitoring System with SE215 Earphones

Shure


Affordable in ear monitors with excellent sound quality.




PSM 200 Monitors are the personal monitor price
breakthrough performers have been waiting for and a practical
alternative to floor wedges for performers who want to start out In Ear
and stay there. Featuring smart, versatile components that grow with you
as your needs change, PSM 200 is the personal monitoring breakthrough
for entry-level performers. In ear is now in reach.

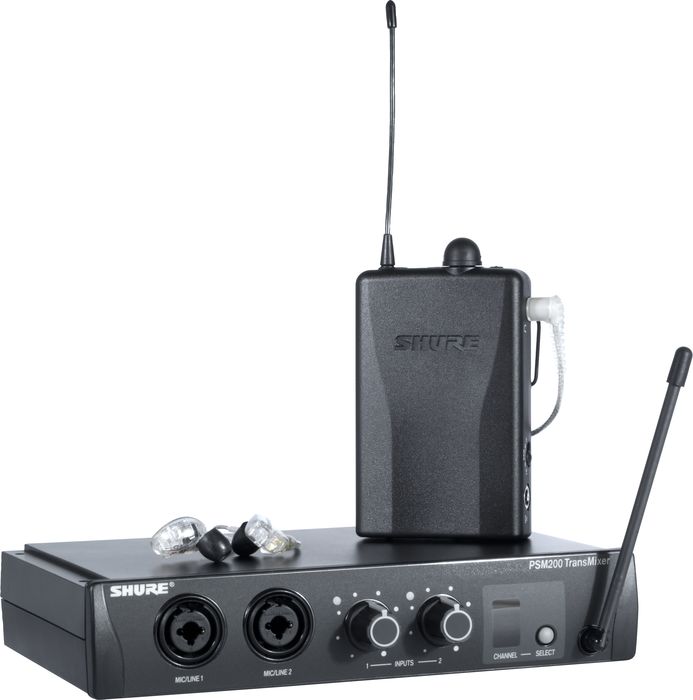

PSM 200
Wireless Personal Monitoring System Includes the Shure P2R Hybrid
Bodypack Receiver and the Shure P2T Wireless TransMixer. Package
includes the Shure SE215 Earphones.

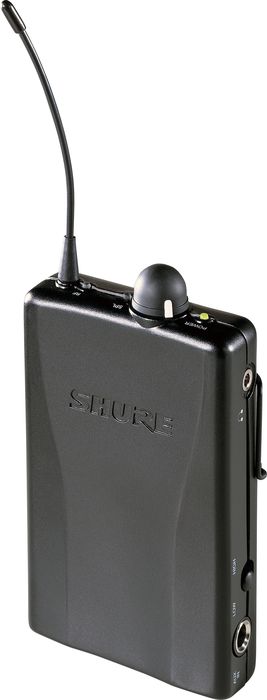

P2R Hybrid Bodypack Receiver
The
P2R Hybrid Bodypack Receiver is the world's first bodypack receiver to
function as a wired receiver, a wireless receiver, or both at the same
time. This and other unique features, along with excellent sound
quality, make the P2R an exceptional value.

P2T Wireless TransMixer
The
P2T Wireless TransMixer is another breakthrough design for personal
monitoring. It allows the user to connect two line-level or mic-level
inputs directly into the transmitter. The two signals can then be mixed
independently. You can connect microphones or instruments directly to
the inputs or use line outputs from a mixing console. In short, no
matter what the output device, you can probably plug it into the
TransMixer.

SE215 Earphones
Featuring a
Dynamic MicroDriver, the SE215 delivers detailed sound with enhanced
bass. A detachable cable with formable wire enables easy replacement and
a secure, comfortable fit onstage or on-the-go. Sound Isolating sleeves
in multiple sizes provide up to 37 dB of isolation and a customized
fit. Evolved from personal monitor technology that's been road-tested by
pro musicians, the SE215 offers detailed sound for personal listening
or professional monitoring.




Features
P2R Hybrid Bodypack Receiver

Operates as a wired or wireless bodypack, or both simultaneously
Frequency locator
Built-in headphone limiter
Integrated cable management
High-impact plastic chassis
1/4" Line input jack with high/low gain switch

P2T Wireless TransMixer

Built-in audio limiter
Front mounted antenna
Two mic/line input channels for mix control
1/2 Rack space

SE215 Earphones

Detailed sound with enhanced bass
sound isolating design
Unmatched personalization and comfort
Single dynamic microdriver
Detachable cable with wireform fit
2-year limited warranty
Includes fit kit with sound isolating sleeves
Comes with soft-zip carrying case




Kick your performances up a notch!







PSM 200 Wireless Personal Monitoring System with SE215 Earphones Specifications:

P2R Hybrid Bodypack Receiver
Operating Controls: Volume knob, Frequency select
LED Indicators: Power, RF reception, Frequency, Limiter, Low battery
RF Sensitivity: -109 dBm typical
Squelch Threshold: -102 dBm typical
Antenna: Attached Whip
Audio Input Connector: Connector Type: 1/4-inch Mono
Impedance: 1 megohm
Maximum Input Level: LO = +0 dBu; HI = ¬10 dBu
Frequency Response: 30 Hz to 20 kHz (+/-3 dB); earphone dependent
Power Requirements: 9 V alkaline battery, Duracell® type MN1604 recommended
Battery Life: Volume Dependent
- Wired (RF Off): 6 hours
- Wireless (RF On): 4 hours
Audio Output Connector: 1/8 inch (3.5 mm)
Minimum Load Impedance: 8 ohms
Net Weight: 100 g (3.52 oz.), less battery
Overall Dimensions: 122 mm x 73 mm x 32 mm (4.809 in. x 2.875 in. x 1.251 in.)

P2T Wireless TransMixer
LED Indicators: Tri-color input level, Frequency
Operating Controls: Input level control, Frequency select
Inputs: Two Mic/line, XLR-1/4 in. combo input channels
Outputs: Two XLR split outputs
RF Output Power: 30 mW (+15 dBm) typical conducted (country dependent)
Modulation Limiter: Internal peak limiter (>10:1 hard knee compression)
Antenna: 1/4 Wavelength, semi-rigid, PCB Mount
P2T Audio Input:
Connector Type: XLR-1/4-inch combo
Configuration: electronically balanced
Actual Impedance: 1 kilohm
Nominal Input Level: ¬25 dBu @ 1/2 volume (12 o'clock)
Maximum Input Level: ¬5 dBu @ 1/2 volume (12 o'clock)
Pin Assignments:
- XLR: 2=hot; 3=cold, 1=ground
- 1/4: Tip = hot, Ring = cold, Sleeve=ground
Phantom Power Protection: Yes: Up to 52 VDC
Current: 170 mA maximum
Dimensions: 220 mm x 140 mm x 40 mm (8.6 in. x 5.6 in. x 1.7 in.)
Net Weight: 370 g (13 oz.)

P2T Audio Outputs:
Passive connection parallel with input: Connector Type: XLR
Configuration: electronically balanced
Pin Assignments: 2 = hot ; 3 = cold, 1 = ground
Phantom Power Protection Yes: Up to 52 Vdc
Power Requirements
Operating voltage 12-18 VDC
Supplied with one of the following external power supplies:
Model PS20: 120 VAC, 60 Hz input
Model PS20E, Model PS20UK: 230 VAC, 50/60 Hz input

SE215 Earphones
Speaker Type: Single Dynamic MicroDriver
Sensitivity (1kHz): 107 dB SPL/mW
Impedance (1kHz): 20 Ω
Noise Attenuation: Up to 37 dB
Frequency Range: 22Hz – 17.5kHz
Input Connector: Gold-plated 3.5 mm (1/8”)
Cable: 64” Detachable (at ear) with wireform fit
Color: Clear
