Audio-Technica ATW-901/H92 System 9 VHF Wireless Headset Microphone System 169.505 - 171.905 MHz

Audio-Technica


Headset with transmitter and receiver.




Long an innovator in wireless technologies, AT's
System 9 series reflects a dedication to the art and science of wireless

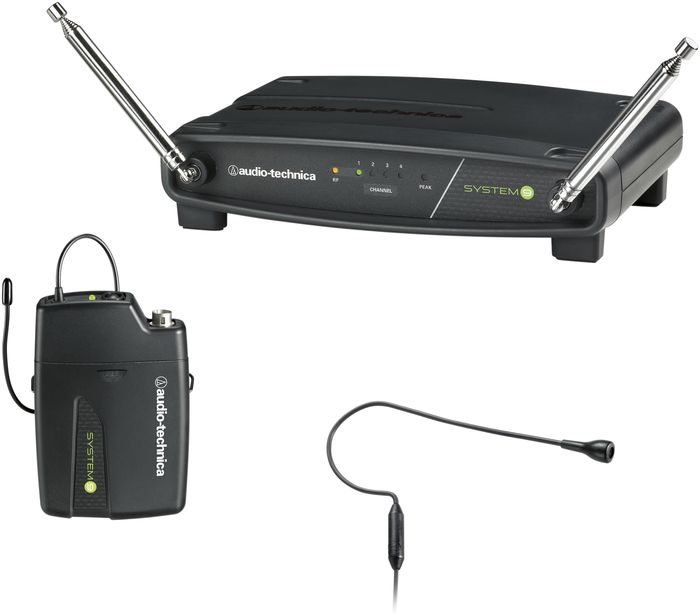

audio. The ATW-901/H92 consists of an ATW-R900 receiver and ATW-T901
UniPak® transmitter with PRO 92cW headworn microphone. Audio-Technica's
System 9 is a four-channel frequency-agile wireless system designed to
provide rock-solid performance along with easy setup and clear, natural
sound quality. Featuring sleek, stackable, contemporary styling, System 9
is available in handheld, headworn, guitar, lavalier and body-pack
configurations. The system offers four compatible user-switchable VHF
channels (169.505, 170.245, 171.045, and 171.905 MHz).

Each
System 9 configuration includes the ATW-R900 receiver and either a
body-pack transmitter or handheld microphone/transmitter. The ATW-R900
is a non-diversity, single-channel receiver with advanced dipole antenna
design for extended operating range, which improves operation by
providing a ground element in addition to the usual signal element. The
ATW-R900 also offers volume control along with AF Peak, RF and Power
indicator lights.




Features

Clear sound
Four channels to choose from
200' range
Affordable




Experience the freedom of wireless performance.







ATW-901/H92 System 9 VHF Wireless Headset Microphone System Specifications:

OVERALL SYSTEM SPECIFICATIONS
Operating Frequencies: VHF high band, 169 MHz to 172 MHz
Modulation Mode: FM
Maximum Deviation: +/-10 kHz
Dynamic Range: >/=90 dB (A-weighted), typical
Total Harmonic Distortion: <1% (at 1 kHz, +/-10 kHz deviation)
Operating Range: 200' (60 m) typical
Open range environment with no interfering signals
Operating Temperature Range: 40° F (4° C) to 110° F (43° C)
Battery performance may be reduced at very low temperatures
Frequency Response: 80 Hz to 13 kHz

RECEIVER SPECIFICATIONS
Receiving System: Non-diversity, single-channel, dual antenna system
Image Rejection: 50 dB minimum
RF Sensitivity: 20 dBuV at 60 dB S/N ratio (50 ohms termination)
Audio Output: Nominal Output Level
XLR, balanced: 350 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load)
1/4" (6.3 mm), unbalanced: 700 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load)
Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
Dimensions: 7.48" (190.0 mm) W x 1.82" (46.2 mm) H x 5.06" (128.5 mm) D
Net Weight: 12.0 oz (337 grams)
Accessory Included: Power supply

BODY-PACK TRANSMITTER SPECIFICATIONS
RF Power Output: 10 mW
Spurious Emissions: Following federal and national regulations
Input Connections: Four-pin Locking Connector
Pin 1: GND
Pin 2: INST INPUT
Pin 3: MIC INPUT
Pin 4: DC BIAS +9V
Batteries: Two 1.5V AA
not included
Battery Life: 8 hours (alkaline)
Depending on battery type and use pattern
Dimensions: 2.76" (70.2 mm) W x 4.08" (103.7 mm) H x 0.98" (24.9 mm) D
Net Weight: 2.8 oz (80.0 grams) without batteries
