Sennheiser KR402 High Tech Ultra-light Powered Line Array

Top quality sound reinforcement.

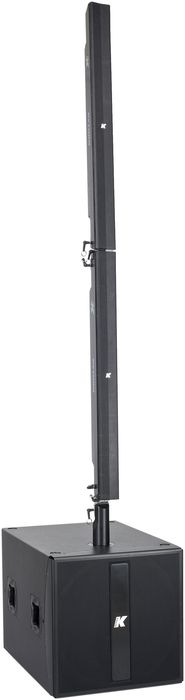

The K-Array KR402 system consists of two KP102
line arrays and two KMT21 subwoofer boxes. It is a powerful system that
can address medium to large-size rooms with ease and most of all with
impeccable fidelity.

Both sides of the system feature two
channels of class D amplification housed in the sub-woofer. The rear
panel provides input for a balanced line signal, a balanced microphone
signal with phantom power, and digital signals in AES/EBU protocol, also
on an XLR for ease of cabling.

An integrated touch screen
provides intuitive managing and editing of powerful DSP controlling:
Input and output levels, internally generated test signal, In/Out
routing, subwoofer delay (up to 12 ms.), speakon output to the Mid-H
element with delay (up to 12 ms.), and overall system delay (up to 330
ms.) All DSP functions, including EQ can be controlled with remote
managing software via USB or RS485, again, conveniently on a standard
XLR. There are 40 different DSP presets, specifically made by K-array to
optimize the systems’ performance for the variety of device
configuration available.

In addition the user can also create,
save, and store his/her own personal presets on the module. The unique
four-corner port configuration gives symmetrical back loading to the sub
speaker for extended bass response with very low distortion. This also
gives incredible structural strength to the cabinet despite its light
weight. Pocket handles in the sub and an M20 thread mount position for
attaching mid-high speakers, with a variety of mounting and rigging
hardware options make the latest additions to the K-array Redline Series
very versatile in almost any application and in every type of venue.

KR402
features a pair of KMT21 (21”) subs each with 2 channels of 2400 Watts
matched to two KP102 Mid-High arrays. A coupling assembly allows the
speakers to be mounted side-by-side, giving the ability to vary the
vertical dispersion pattern for narrow to wide coverage.






Order today for uncompromising live sound presentation.







KR402 High Tech Ultra-light Powered Line Array Specifications:

Specifications per component: KP102 / KMT21
Speaker power handling : 720W / 1800W
Max power : 1200W / 2800W
Impedance : selectable / 4 Ohms
Frequency range : 100 Hz – 20 KhZ / 30 Hz – 150Hz +/- 3dB (preset relating)
SPL 1W / 1mt : 99 dB / 102 dB
Maximum SPL: 128 dB continuoua – 134 dB peak / 132 dB cont – 138 dB peak
Horizontal : 90 degree / omni
Vertical: 7 – 30 selectable / omni
Crossover Type: External crossover required / DSP controlled
Crossover Frequency: High pass @ 100 Hz 25 dB/oct suggested minimum / 150 Hz
Full Range: 12 x 3.15 Neodymium magnet with 1” voice coil / 1 x 21” Neodymium speaker with 3” voice coil
Vertical pattern Spot – flood / NA
Impedance: 4 Ohms – 16 Ohms
Analog Connectors : 2 x 4pin Speakon / 2 Male and 2 female 3-pin balanced XLR
Digital Connectors: NA / 1 male and 1 female 3-pin XLR
Remote Control Connectors: NA / 1 x male + female XLR parallel / 1 USB B Jack serial
Power Input Connectors: NA / 2 x PowerCon IN/OUT
Amplifier Type: NA / C;ass D – DSP controlled
Subwoofer power: 2400 W @ 4 Ohms
Satellite power output: 2400 W @ 4 Ohms
Protection: NA / Dynamic limiter, over temp, over current, short circuits
AC Power Operating range: NA / 85 – 268 Vac Hz (Auto switch)
P. nom: NA / 1500 W
Minimum operation voltage: NA / 85 Vac
Maximum operation voltage: NA / 268 Vac
Dimensions: 3.19” x 39.4” x 2.32” / 21.85” x 21.85”
Weight: 10.14 lb. / 108 lb.





*Estimate Shipping between 5 - 12 weeks, or please call (083) 497-2227 for a faster air freight service with special price rate.
