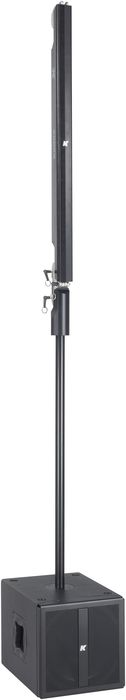

Sennheiser KR102 High Tech Ultra-light Powered Line Array

Impeccable audio in a portable format.




KR102 features a pair of KMT12 (12”) subs each
with 2 channels of 1,000 Watts matched to a KK102 with 16 x 2” Neodymium
speaker elements. This is a compact, lightweight system with exacting
audio performance. The ultimate in clarity, presence and reliability.

An
integrated touch screen provides intuitive managing and editing of
powerful DSP controlling: Input and output levels, internally generated
test signal, In/Out routing, speakon output delay (up to 12 ms.),
subwoofer delay (up to 12 ms.), overall system delay (up to 330 ms.) All
DSP functions, including EQ can be controlled with remote managing
software via USB or RS485, again conveniently on a standard XLR.

There
are 40 different DSP preset slots available, part of which specifically
made by K-array to optimize the system performance of the variety of
device configurations available. In addition the user can also create,
save, store and recall his/her own personal presets on the module. The
unique four-corner port configuration gives symmetrical back loading to
the speaker for extended bass response with very low distortion. This
also gives incredible structural strength to the cabinet despite its
light weight. Pocket handles and an M20 thread mount position for
attaching mid-high speakers, with a variety of mounting and rigging
hardware options make the latest additions to the K-array Redline Series
very versatile in almost any application and in every type of venue.




Features

High power 128 dB continuos, 134 dB peak
Fitted with integral handles
Line array emission wavefront
DSP on-board with dedicated presets
Ultra fast set-up and dismantling system
Analog and digital AES-EBU inputs




Order today for crystal clear sound reinforcement.







KR102 High Tech Ultra-light Powered Line Array Specifications:

Specifications per component: KK102 / KMT12
Speaker power handling : 400W / 700W
Max power : 800W / 1200W
Impedance : selectable / 8 Ohms
Frequency range : 150 Hz – 20 KhZ / 40 Hz – 150Hz +/- 3dB (preset relating)
SPL 1W / 1mt : 98 dB / 99 dB
Maximum SPL: 124 dB continuoua – 128 dB peak / 132 dB cont – 138 dB peak
Horizontal : 110 degree / omni
Vertical: 7 – 35 selectable / omni
Crossover Type: External crossover required / DSP controlled
Crossover Frequency: High pass @ 150 Hz 25 dB/oct suggested minimum / 150 Hz
Full Range: 16 x 2” Neodymium magnet with .75” voice coil / 1 x 12” Neodymium speaker with 3” voice coil
Vertical pattern Spot – flood / NA
Impedance: 4 Ohms – 32 Ohms
Analog Connectors : 2 x 4pin Speakon / 2 Male and 2 female 3-pin balanced XLR
Digital Connectors: NA / 1 male and 1 female 3-pin XLR
Remote Control Connectors: NA / 1 x male + female XLR parallel / 1 USB B Jack serial
Power Input Connectors: NA / 2 x PowerCon IN/OUT
Amplifier Type: NA / Class D – DSP controlled
Subwoofer power: 1000 W @ 8 Ohms
Satellite power output: 1000 W @ 8 Ohms
Protection: NA / Dynamic limiter, over temp, over current, short circuits
AC Power Operating range: NA / 85 – 130 Vac Hz (Auto switch)
P. nom: NA / 5.5A 115 Vac – 2.9A 230 Vac
Minimum operation voltage: NA / 85 Vac – Vac 190
Maximum operation voltage: NA / 130 Vac - 240Vac
Dimensions: 3.19” x 39.4” x 2.32” / 12.9” x 17.13”
Weight: 10.14 lb. / 34lb.





*Estimate Shipping between 5 - 12 weeks, or please call (083) 497-2227 for a faster air freight service with special price rate.
