Glyph Triplicator Backup Appliance

Copy and back-up data to multiple drives in a single action.




Triplicator makes your job easier. When you need
to copy your critical data to multiple drives, Triplicator saves you
time and energy by doing the copies in a single action. When you copy
data through the Triplicator, identical data will be copied to all of
the target drives. Perfect for any production workflow when you need
on-site backups of your valuable data.

Triplicator is easy. Here's how it works:
1. Connect two or three drives to Triplicator's eSATA device ports
2. Connect the Triplicator to your computer via FireWire 800, USB or eSATA
3. Power on drives and Triplicator. LED tells you number of drives attached
4. Copy data - the destination is seen as one drive through the Triplicator

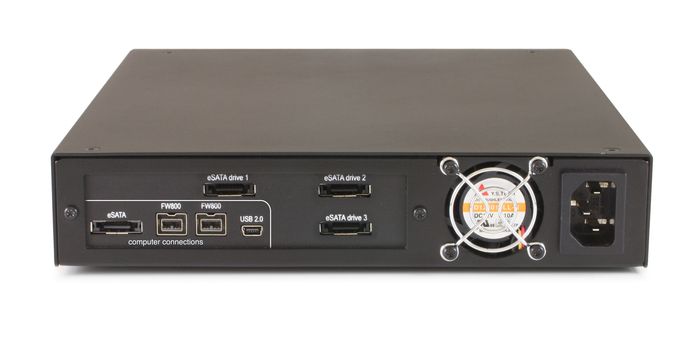

Connections
The
Triplicator can be connected to the computer via eSATA, FireWire or USB
using any of the ports marked "computer connections". The target drives
are connected to the Triplicator via eSATA cables only, using the ports
marked "eSATA drive 1", "eSATA drive 2", etc. The Triplicator supports
any eSATA connected drives, including the Glyph PortaGig 50, PortaGig
62, GT 050Q and GT 062E.

User Interface
Triplicator's
user interface also provides important information during the copy
process. The front panel includes a button designed to guard against
unintended drive initialization. The first time you power on the
Triplicator, the blue LED blinks to indicate that button press is
required. On button press, the drives initialize and the blue LED goes
to solid. After a few seconds a volume will be visible to your computer.
Format this volume using your operating system utility, and you're
ready to go. After the Triplicator has initialized the drives, the red
LED pattern blinks to show the number of attached drives. If no drives
are attached, the LED goes solid red. If a discovered drive disappears
in the course of operation, it goes solid red.

In use
You
can use the Triplicator volume as you would use the volume on any
drive. However, when you copy data to the Triplicator volume, the data
will be copied to all target drives at the same time. Once you are done
working with the drives, you can unmount the volume just like any
external drive, and connect the target drives individually to a
computer. You will see that the same data is on each drive.

Drive capacities
It
is best, but not necessary, for all of the drive capacities to be the
same. If you connect three 500GB drives, the volume will be 500GB,
because the same data is copied to all drives. If you connect two 500GB
drives and one 250GB drive, the capacity will be equal to the smallest
drive, so total capacity will be 250GB.

Remount functionality
After
you have created a Triplicator drive set and copied data to the drives,
the Triplicator and drives can be powered off and on. On power up, the
Triplicator will discover and mount the previously created drive set.
This allows you to work with the Triplicator as you would any other
drive, while at the same time having your data present on up to three
hard drives.

Nobody likes wall-warts
They are
easily misplaced, or accidentally unplugged from the enclosure, and
take up valuable outlet space. The Triplicator uses an industry-standard
power cord and pro-quality internal power supply for the most efficient
and reliable power source possible.

A cool drive is a healthy drive
The
Triplicator uses a quiet internal fan for maximum airflow and proper
cooling. The case is designed with front-panel ventilation holes to draw
cool air in, while exhausting warm air out the back - critical to the
performance and reliability of the components.




Features

Save time and energy by coping files to multiple drives in one single action
Connect to the computer via eSATA, FireWire or USB
Supports any eSATA drives, including PortaGig 50, PortaGig 62, GT 050Q and GT 062E
Informative user interface
Industry-standard power cord and pro-quality internal power supply
Quiet internal fan for maximum airflow and proper cooling




Never lose your work, get three times the back up today.




Triplicator Backup Appliance Specifications:

Host computer connectivity:
eSATA - One port
FireWire 800 (IEEE 1394b) - Two 9-pin ports
USB 2.0 Hi-speed (device-side) port
Target drive connectivity:
eSATA - Three ports
Maximum transfer rate (eSATA port)
3 Gbit/s (300MB/sec)
Dimensions (WxHxD)
Product: 8.6" x 1.7" x 9.5"
Packaging: 15" x 4.2" x 13.1"
Weight
Product: 3lb. / 1.4 kg
With pkg: 7.2lb. / 3.3 kg
Power Supply: Internal Universal 100-240v 50/60Hz
Compatible Operating Systems:
Mac OS 8.6, 9.X, 10.X
Microsoft Windows 98SE, ME, 2000, XP, Vista, 7
Inside The Box:
9-Pin FireWire 800 Cable
IEC Power Cable
Three eSATA cables (1.5ft) for target drive connection
One eSATA cable (3ft.) for host connection
Warranty:
Full 3 Years
1Year Advance Replace (U.S. 48 States only)
