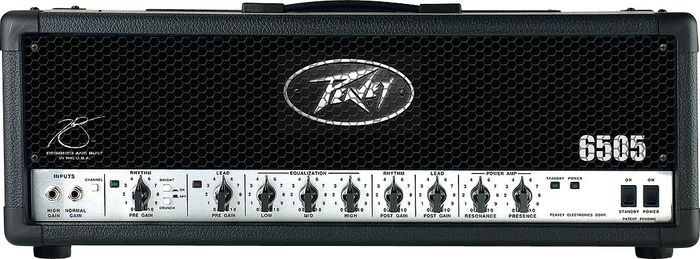

Peavey 6505 120W Guitar Amp Head

A classic voice in American rock.






The Peavey 6505 120W Guitar Amp Head serves up 120W of pile-driving power for muscular crunch and soaring sustain. Equipped with 5 - 12AX7s in the preamp and 4 - 6L6s in the power amp. Includes footswitchable lead/rhythm channel select, effects loop, 3-band EQ, plus resonance and presence controls on each channel. Rhythm channel includes pre/post gain controls and bright/crunch switches. Lead channel includes pre/post gain controls only. Preamp output. Footswitch included. 4, 8, or 16 ohms.

The 6505 Series guitar amplifiers are named in celebration of Peavey's first 40 years, (1965-2005.) While known as the 5150 Series, these amps became the undisputed go-to guitar amps for scores of rock, hardcore, and metal bands because of their raw tone, relentless power, and road-proven reliability.

Made in the USA.


Peavey 6505 120W Guitar Amp Head Features:


120W
Preamp: 5 - 12AX7s
Power amp: 4 - 6L6s
Footswitchable lead/rhythm channels
Effects loop
3-band EQ
Resonance and presence controls
4, 8, or 16 ohms

Made in the USA


It's the super-rock amp head with the goods to deliver for any style or sound. Order today.


Peavey 6505 Head Specifications


Power Amplifier Section
Rated Power and Load: 120 W RMS into 16, 8, or 4 ohms
Power @ Clipping (Typically @ 5% THD, 1 kHz, 120 V AC line): 130 W RMS into 16, 8, or 4 ohms
(Bias must be reduced to measure)
Frequency Response: +0, -3 dB, 50 Hz to 20 kHz, @ 100 W RMS into 8 ohms
Hum & Noise: Greater than 75 dB below rated power
Power Amp EQ:

Active Presence: +10 dB @ 2 kHz
Active Resonance: + 10 dB @ cabinet resonant frequency


Power Consumption: 400 watts 50/60 Hz, 120 V AC (Domestic)
Preamp Section
The following specs are measured @ 1 kHz with the controls preset as follows:
Low & High EQ @ 10
Mid EQ @ 0
Bright out
Lead & Rhythm Posts @ 10
Presence & Resonance @ 0 dB
Nominal levels with Pre Gains @ 5
Minimum levels with Pre Gains @ 10
Preamp High Gain Input: Impedance: Very High-Z, 470K ohms
Lead Channel (with channel select in):

Nominal Input Level: -80 dBV, .1 mV RMS
Minimum Input Level: -92 dBV, .025 mV RMS


Clean Channel (with channel select out):

Nominal Input Level: -34 dBV, 20 mV RMS
Minimum Input Level: -50 dBV, 3 mV RMS
Maximum Input Level: 0 dBV, 1.0 V RMS
(Subtract 16 dB with Crunch switch in)


Preamp Low Gain Input (-6 dB pad):

Impedance: High-Z, 44K ohms
All levels are increased by +6 dB




Effects Send
Load Impedance: 47K ohms or greater
Nominal Output: -10 dBV, 300 mV RMS


Effects Return
Impedance: Very High-Z, 470K ohms
Designed Level: -10 dBV, 300 mV RMS


Preamp Output
Load Impedance: 47K ohms or greater
Nominal Output: +10 dBV, 3 V RMS


Remote Footswitch
Special 2 button unit with LED indicators (supplied)
Channel select & Effects loop bypass


System Hum & Noise @ Nominal Level
(Clean channel, 20 Hz to 20 kHz unweighted)
Greater than 74 dB below rated power


Equalization
Custom Low, Mid & High passive type EQ Push Bright (Rhythm channel only)
+6 dB @ 2 kHz
Push Crunch (Rhythm channel only) Increases gain


Dimensions
10 inches (H) x 26.625 inches (W) x 11.75 inches (D)
254 mm x 676.275 mm x 756.92 mm
Weight: 48.3 lbs. (21.9 kg)
