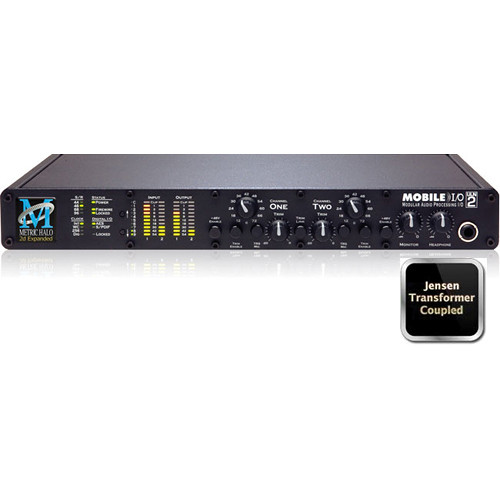

Metric Halo ULN-2 Expanded FireWire Audio Interface with Jensen Transformers

The ULN-2 Expanded from Metric Halo is a portable FireWire-based multi-format audio converter, interface, and processor design for professional applications. The unit offers 2 balanced analog inputs on Neutrik XLR/TRS combo connectors, each of which has a pro-quality Jensen transformer. The unit has AES/EBU and S/PDIF digital I/O connectors, plus 8 channels of ADAT optical I/O with switchable TOSLINK support. It also has 2 balanced 1/4" analog outputs and 2 balanced 1/4" monitor outputs for connecting to power amps and self-powered monitors. BNC word clock I/O connectors let you keep perfect sync with your other professional audio devices, while a pair of FireWire 400 connectors support connection to a computer at up to 400Mbps.

The unit has extremely low-noise preamps with a lot of gain an an ultra-fast slew rate. 24-bit/96kHz converters are provided on all channels to provide high-quality clean audio. Each of the analog inputs has balanced 1/4" analog sends and returns, letting you use the unit as a stand-alone pre/direct box, as an active splitter, or as an an analog patch. An integrated headphone amp with a dedicated volume control provides convenient private monitoring.

The ULN-2 Expanded has a v.5 configurable mixer that provides mixing and routing with near-zero latency. It also has flexible powering options, thanks to the 4-pin XLR power input, which provides compatibility with a variety of broadcast battery systems. It is also bus-powerable via FireWire for terrific flexibility and mobility. Metric Halo's unique +DSP processing is built-in to provide you with world-class effects without sacrificing your computer's processing power or introducing any additional latency into your monitor path. It also has a preset system and routing memory for stand-alone operation.


Compact and portable design, ideal for professional mobile applications

2 balanced analog inputs on Neutrik XLR/TRS combo connectors, as well as AES/EBU and S/PDIF digital I/O connectors Each analog input has a pro-quality Jensen transformer ADAT optical I/O with switchable TOSLINK support 2 balanced 1/4" analog outputs and 2 balanced 1/4" monitor outputs for connecting to power amps and self-powered monitors. The monitor outputs have a front-panel level control as well BNC word clock I/O connectors let you keep perfect sync with your other professional audio devices A pair of FireWire 400 connectors support connection to a computer at up to 400Mbps Extremely low-noise preamps with a lot of gain and an ultra-fast slew rate 24-bit/96kHz converters are provided on all channels to provide high-quality clean audio Each of the analog inputs has balanced 1/4" analog sends and returns, letting you use the unit as a stand-alone pre/direct box, as an active splitter, or as an analog patch An integrated headphone amp with a dedicated volume control provides convenient private monitoring A v.5 configurable mixer that provides mixing and routing with near-zero latency The 4-pin XLR power input provides compatibility with a variety of broadcast battery systems. The unit is also bus-powerable via FireWire for terrific flexibility and mobility Unique +DSP processing is built-in to provide you with world-class instantiable effects without sacrificing your computer's processing power or introducing any additional latency into your monitor path. It also offers total recall with MIO Console Metric Halo's character processing lets you choose different audio characteristics for every channel with a single click A set of 10 front-panel preset system/routing memories are provided for stand-alone operation OS X drivers with multi-box support







Gain
Stepped Gain Range: +6dB to +72dB in 6dB Steps
Range with Trim: -14dB to +70dB
Max Gain: 72dB


Input Impedance
3.3 kOhms


Total Harmonic Distortion (THD)
0.0005%


IMD
-96dBu


EIN
-130.5dBu (150 Ohm Source)
-132.0dBu (50 Ohm Source)
-134.0dBu (0 Ohm Source)


Frequency Response
18Hz - 20kHz ±0.1dB
8Hz - 50kHz ±1.0dB
3Hz - 100kHz ±3.0dB


Crosstalk
-107dB (Trim Link Engaged)
-132dB (Trim Link Disengaged)


Headroom
20dB Above Digital Clip (Preamp)


Phantom Power
48V Regulated, High Current, Individually Switchable, P48 Test Compliant, Short Circuit/Hot-Swap Protected


Connectors
2 x XLR/TRS Neutrik Combo Analog Inputs
1 x XLR AES/EBU Digital Input
1 x XLR AES/EBU Digital Output
1 x RCA S/PDIF Digital Input
1 x RCA S/PDIF Digital Output
1 x Optical ADAT Digital Input
1 x Optical ADAT Digital Output
2 x FireWire 400 Connectors
2 x BNC Word Clock Connectors (In/Out)
1 x 1/4" Stereo Monitor Output
1 x 1/4" Stereo Analog Output
2 x 1/4" Sends
2 x 1/4" Returns
1 x 4-Pin XLR Power Input
1 x 2.1mm Coaxial DC Power Connector


Controls
Stepped Gain (12 Steps)
Continuous Attenuator on Return
Attenuation Link
Mic/Line Selector Switch
Independent Monitor Volume Controls
Independent Phantom Power Controls


Power
8W @ 9-30VDC


Dimensions (WxDxH)
13.5 x 8.25 x 1.73" (343 x 210 x 44mm)


Weight
4 lbs (1.8kg)
