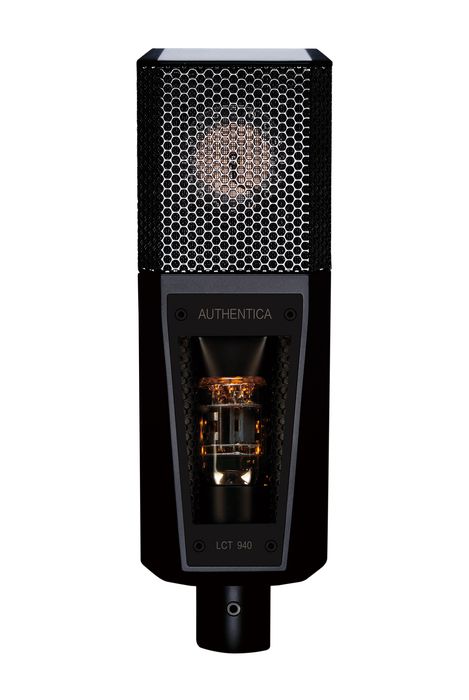

Lewitt Audio Microphones LCT 940 Reference Class Large Diaphragm Tube/FET Condenser Microphone

Lewitt Audio Microphones


Top quality, versatile studio microphone.




Sound professionals naturally rely on a set of
different high-end microphones in order to get the best out of their
sound. But changing microphones and adjusting settings takes valuable
time, the creative flow of a session is interrupted. With its new
Authentica series flagship LCT 940, Lewitt now introduces a microphone
that will revolutionize modern studio recording procedures and help
engineers and artists to react more quickly to a desired change of style
and sound.

The LCT 940 combines the specific characteristics of a
premium large-diaphragm FET condenser microphone and a top-notch tube
microphone in one housing. Basically, users can choose between the two
main settings "FET" and "Tube". These two signal paths have been
incorporated separately and work independently of each other.

"Tube"
delivers the classic, warm and rich tube sound, while "FET" stands for
the clear, exceptionally rich and nuanced sound LEWITT condenser
microphones are renowned for. However, the LCT 940 offers another unique
feature that true recording enthusiasts will swoon over: As the
characteristics of the two main settings can be mixed and merged
continuously variable, the LCT 940 opens up huge creative possibilities
for artists and producers.

Furthermore, the LCT 940 features a
total of nine different polar patterns – the five "standard" polar
patterns omni-directional, cardioid, figure-8, wide- and super-cardioid
and four additional intermediate patterns. The microphone features four
levels of attenuation and four switchable high-pass filters, LEDs and
push buttons for noiseless handling on the PSU. Automatic attenuation
and clipping history round off the outstanding feature list of the LCT
940.

Rich in advanced technological features, the LCT 940 opens
up a new dimension of sound reproduction in demanding professional
studio applications. Its unrivaled set of qualities makes this
microphone a must-have for recording pros who strive for nothing less
than perfection.



Features

Lead and background vocals
Acoustic instruments
Wind instruments
Combines the sonic characteristics of a tube and a FET mic in one
single housing for maximum creative freedom and an undisturbed workflow
Continuously variable switching and merging of tube and FET sound via rotating potentiometer
1-inch externally biased, dual-system capsule with ultra-thin ,
gold-layered low-mass diaphragms combined with a dual triode tube
ensures accurate transient response while providing smooth, warm and
airy tube sound
Nine consistent directional characteristics: cardioid,
omni-directional, figure-8, broad cardioid, supercardioid and four
intermediate patterns: for maximum flexibility in a wide variety of
recording applications
Superior dynamic range of 128 dB-A (Tube) / 135 dB-A (FET) and
exceptionally low self-noise of 12 dB-A (Tube) / 8 dB-A (FET) for
ear-catching realism and distortion-free sonic depth
4-position switchable pre-attenuation pad (0 dB, 6 dB, 12 dB and 18
dB) for handling extremely high sound pressure levels and 4-position
high-pass filter
Illuminated user interface and jog dials for easy handling even in dark environments
Noiseless pushbuttons for quick and easy attenuation and HPF selection
Unique features like clipping history and automatic attenuation provide error-free studio recording and unparalleled ease of use
Solid die-cast metal body with a stylish, oversized tube inspection
window specially coated for maximum protection against electromagnetic
interference
Custom PSU 940 power supply unit with sturdy full-metal housing and brushed, anodized black aluminum front
Extra-large hexagonal ruthenium-galvanized steel mesh grille
provides an open acoustic environment and prevents unwanted internal
reflections
Corrosion-resistant gold-plated 3-pin XLR output connector




Order today and find your new go-to studio favorite.




LCT 940 Reference Class Large Diaphragm Tube/FET Condenser Microphone Specifications:


Acoustical operating principle: pressure gradient transducer, externally polarized
Transducer: 1"
Directional pattern: omni
broad-cardioid
cardioid
super-cardioid
figure-8 and four additional intermediate pattern
selectable on remote control
Frequency range 20 ... 20.000 Hz
Sensitivity 23 mV / Pa (-33 dBV), cardioid
20 mV / Pa (-34 dBV), omni
23 mV / Pa (-33 dBV), figure-8
Signal / noise ratio (FET) 86 dB-A
Signal / noise ratio (Tube) 82 dB-A
Equivalent noise level (FET) 8 dB-A, cardioid (IEC 61672-1)
9 dB-A, omni (IEC 61672-1)
8 dB-A, figure-8 (IEC 61672-1)
Equivalent noise level (Tube) 12 dB-A, cardioid (IEC 61672-1)
13 dB-A, omni (IEC 61672-1)
12 dB-A, figure-8 (IEC 61672-1)
Dynamic range of FET mic. Amp. 135 dB-A
Dynamic range of Tube mic. Amp. 128 dB-A
Max. SPL for 0,5 % THD (FET) 143 dB, 0 dB pre-attenuation
149 dB, 6 dB pre-attenuation
155 dB, 12 dB pre-attenuation
161 dB, 18 dB pre-attenuation
Max. SPL for 0,5% THD (Tube) 140 dB, 0 dB pre-attenuation
146 dB, 6 dB pre-attenuation
152 dB, 12 dB pre-attenuation
158 dB, 18 dB pre-attenuation
Pre-attenuation pad 6 dB
12 dB
18 dB
selectable on remote control
Bass cut filter slope 12 dB / octave at 40 Hz
6 dB / octave at 150 Hz
6 dB / octave at 300 Hz
selectable on remote control
Rated impedance < 200 ohms
Rated load impedance > 1.000 ohms
Supply voltage custom power supply unit
230 V, 50 Hz
110 V, 60 Hz
Current consumption 170 mA
Connector gold plated 11-pin XLR
Cable 8 m (26 ft)
11-pin audio cable
oxygen-free copper
Dimensions (Mic) 192 x 60 x 46 mm
7,5 x 2,4 x 1,8 inch
Dimensions (PSU) 250 x 150 x 70 mm
9,8 x 5,9 x 2,8 inch
Net weight (Mic) 662 g
23,3 oz
Net weight (PSU) 1930 g
68,1 oz
