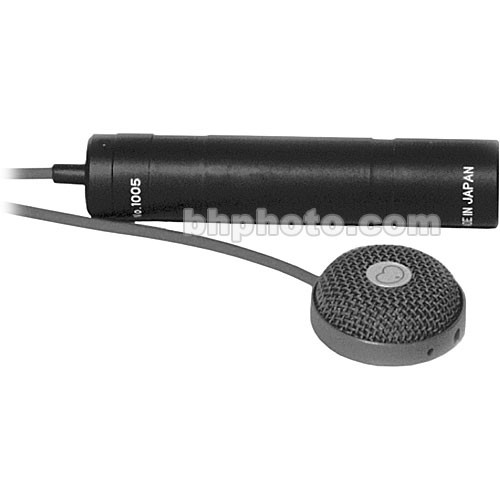

Sanken CUB-01 Miniature Cardioid Boundary Microphone (Gray)

From Sanken, the CUB-01 boundary microphone features a
small profile while delivering a sound synonymous with large diaphragm
microphones. The CUB-01 is an excellent choice for conferences, board
rooms, court rooms, news broadcasts, film and more. The microphone
features a unique square-shaped cardioid capsule which significantly
enlarges the area of the diaphragm. This proprietary design results in a
rich, natural, "full-bodied" sound quality that is often associated
with large diaphragm condenser microphones.


The CUB-01 is easily
installed into any surface with minimal effort and it's miniature
profile renders the microphone inconspicuous. The wide frequency
response effectively reproduces speech, instruments and ambiance. The
cardioid polar pattern effectively minimizes off-axis noise and ambiance
while providing a focused pick up.


Hemispherical - Cardioid Polar Pattern
The CUB-01 features a cardioid pick up pattern at the
upper-hemisphere of the capsule. The result is excellent noise and phase
suppression at the surface while maintaining a generous pick up area at
the top.

Miniature Design
The miniature design results in inconspicuous, low profile microphone placement.

Square Capsule Design
The square diaphragm results in a larger diaphragm area. The
result is a sound quality synonymous with large diaphragm condenser
microphones.

XLR Output Connector
The CUB-01 features a standard 3-pin XLR male output and is powered with 48V phantom power.








Transducer


Back electret condenser



Polar Pattern


Cardioid/front side of hemisphere



Frequency Response


20Hz to 20kHz



Dynamic Range (Typical)


not specified by manufacturer



Signal-to-Noise Ratio


less than 16dB(A-weighted) IEC 179



Maximum Input Sound Level


127 dB SPL (THD 1%, 1kHz)



Power Requirements


48 Volt Phantom Power



Output Impedance


120 Ohms (1kHz), Recommended load impedance more than 5k Ohms.



Output Connectors


3-pin XLR male



Pad


No



Low Frequency Roll-Off


No



Dimensions


.59 x 1.28" (15 x 32.5mm) (Length x Diameter)



Weight


1.58 oz (45 g)
