Audio-Technica ATW-3171b 3000 Series Wireless Dynamic Microphone System

Audio-Technica


A True-Diversity UHF wireless receiver with cardioid handheld mic/transmitter.

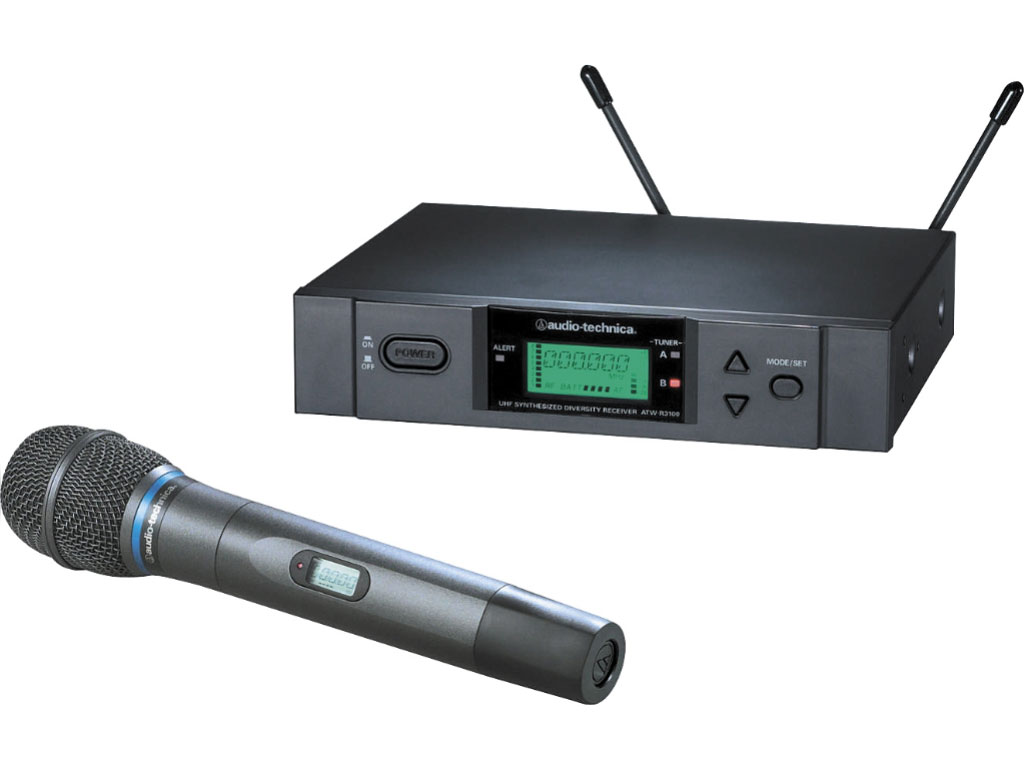

The ATW-3171b Wireless Dynamic Microphone System
is part of Audio-Technica's third-generation 3000 Series. It includes an
Audio-Technica ATW-R3100b receiver and an Audio-Technica ATW-T371b
handheld cardioid condenser microphone/transmitter.

The wireless
system offers 996 selectable UHF frequencies and features for clear
sound and intuitive operation. Audio-Technica has simplified the
selection of usable frequencies, increased system reliability, and
illuminated transmitter screens for clear reads on dark stages. It all
adds up to the luxury of rock-solid, richly detailed high-fidelity
sound.

The Audio-Technica ATW-R3100b receiver is equipped with
automatic frequency scanning for easy setup. It also features true
diversity reception. Two antennas feed two completely independent RF
sections on the same frequency; automatic logic circuitry continuously
compares and selects the superior received signal, providing better
sound quality and reducing the possibility of interference and dropouts.
Soft-touch controls provide convenient access to a variety of
functions, while a backlit LCD information display provides constant
monitoring of system operation, including indication of the
transmitter's battery status. The receiver is half-width for a standard
1U 19" rack mount; rack-mount adapters are included.

The
Audio-Technica ATW-T341b handheld dynamic microphone/transmitter
features the same element used in the Artist Elite AE4100 dynamic
handheld microphone created for professional live sound venues. This
transmitter uses two 1.5V AA batteries for economical operation and wide
availability, and has a "fuel gauge" battery condition indicators with
low-battery warnings.

An advanced Digital Tone Lock tone squelch
system in the ATW-R3100b receiver opens only when a 3000 Series
transmitter 3000 Series Installation and Operation is detected, reducing
the possibility of interference. As a result, 3000 Series transmitters
and receivers must be used together and should not be used with
components from other Audio-Technica wireless systems, or with those of
other manufacturers. Exception: 3000 Series components are compatible
with Audio-Technica 1800 Series wireless system components.




Features

Includes a
ATW-R3100b receiver, ATW-T371b handheld transmitter
996 UHF frequencies
Antenna power available for powered antennas & other in-line RF devices
Nine pre-coordinated frequency scan groups simplify selection of usable frequencies in a multichannel wireless system
True Diversity operation reduces dropouts
Advanced digital Tone Lock squelch effectively blocks stray RF and communicates transmitter data for receiver display
Transmitter offers backlit LCD & dual-color LED
Locking battery compartment with secure latch and robust design
Ground-lift switch helps eliminate audible hum caused by ground loops




Order this mic system today and soon UHF will mean, "U Have Freedom."








ATW-3171b 3000 Series Wireless Dynamic Microphone System Specifications:


Overall System
UHF Operating Frequencies (Frequency Range/Number of Frequencies)
Band C: 541.500 to 566.375MHz/996
Band D: 655.500 to 680.375MHz/996
Not all frequencies are available in all areas. Please check with local regulations.
Minimum frequency: Step 25kHz
Modulation mode: FM
Maximum deviation: ±35kHz
Dynamic range: > 110dB (A-weighted), typical
Total Harmonic Distortion: < 1% (at 1kHz, ±17.5kHz deviation)
Operating range: 100m (300'), typical
Open range environment with no interfering signals.
Operating temperature range -5°C to +45°C, 23°F to 113°F
Battery and LCD performance may be reduced at very low temperatures.
Frequency response: 70Hz to 15kHz (+1dB, -3dB)

ATW-R3100b Receiver
Receiving system: True diversity
Image Rejection: 60dB nominal, 55dB minimum
RF Sensitivity: 20dBuV at 60dB S/N ratio (50Ω termination)
Maximum Output Level:
XLR, balanced: +9dBV
1/4" (6.3mm), unbalanced: +7dBV
Antenna Input:
BNC-type, 50Ω
Bias voltage 12V DC, 60 mA, each
Power Requirements: 12-18V DC, 500 mA
Dimensions (WxDxH): 210.0mm (8.27") x 164.4mm (6.47") x 44.0mm (1.73")
(Not including BNC connectors or feet)
Net weight: 1.1kg (38.8oz.), without accessories
Accessories:
Included Two flexible UHF antennas
AC adapter (country dependent)
Rack-mount adapters

T317b Handheld Transmitter
RF power output: High: 30 mW; Low: 10 mW, (switchable), at 50Ω
Spurious emissions: Following federal and national regulations
Microphone element: ATW-T371b Condenser cardioid
Batteries: Two 1.5V AA, not included
Battery life: High: 6 hours (alkaline), Low: 8 hours (alkaline), depending on battery type and use pattern
Dimensions: ATW-T371b 240.0mm (9.45") long, 50.0mm (1.97") diameter
Net weight: ATW-T371b 277g (9.8oz), without batteries
Accessory included: AT8456a Quiet-Flex stand clamp
