Audio-Technica System 8 Wireless System includes: PRO 92cW-TH headworn microphone

Audio-Technica


Affordable headset wireless in beige.

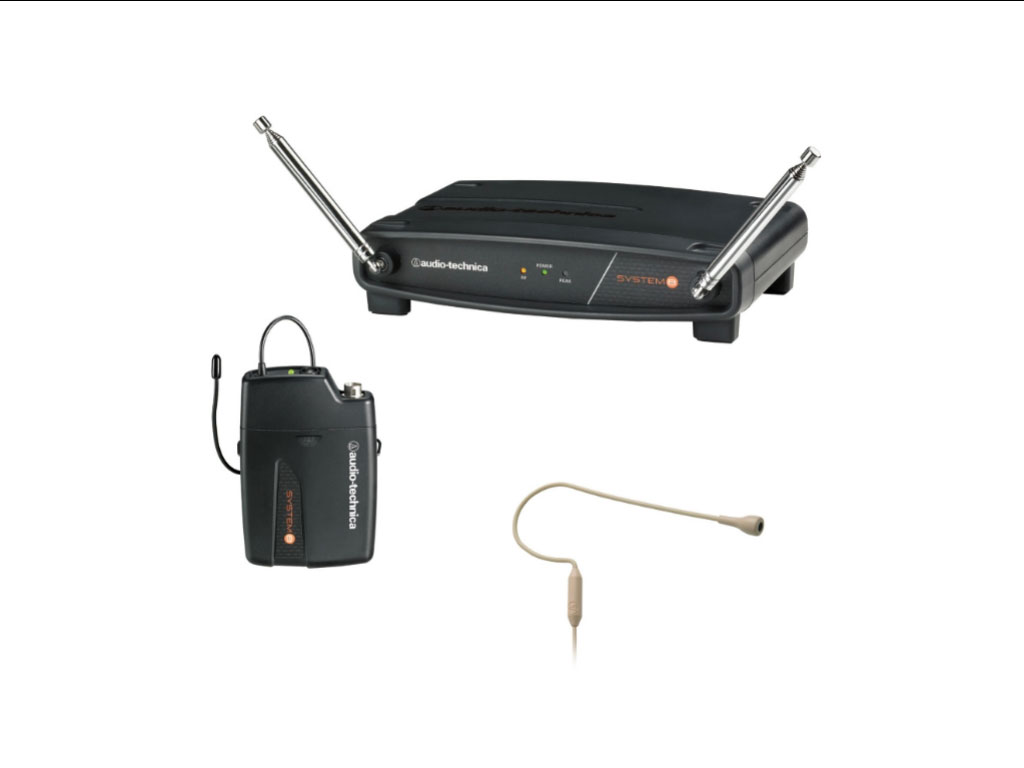

System 8 Wireless Systems are designed for
reliable performance, easy setup and clear, natural sound quality. The
ATW-801/H92-TH-T2 system includes the ATW-R800 receiver and ATW-T801
UniPak® transmitter with a high-quality headworn microphone that is
beige in color.

This system transmits on the T2 band. The band is
fixed, and if you are getting multiple systems, you'll want to be sure
that each system occupies a different band.

A novel “dipole”
antenna system on the receiver improves operation by providing a
“ground” element in addition to the usual “signal” element.
Line-of-sight operation is good to about 200 feet.

The System 8
Wireless lavalier system is a well-made, reliable, good-sounding
wireless solution from one of the leaders in wireless audio technology,
introduced at an affordable price. There are cheaper wireless systems on
the market, but many of them lack depth and presence. The System 8 is
professionally presentable for vocalists, exercise instructors, and
public speakers of all kinds.




Features

Easy operation and clear, natural sound quality
Hands free operation
Beige-colored headset microphone
Reliable performance and durable construction
Advanced dipole antenna system for extended operating range
Power, RF, and AF Peak indicators
Volume control, 1/4" output jack and user-adjustable squelch
Variable microphone trim control and multi-color battery/power indicator
AA operation




Order today and experience the added expression of hands-free operation.







System 8 Wireless System includes: PRO 92cW-TH headworn microphone Specifications:

Operating Frequency: VHF highband, 169 MHz to 172 MHz
Modulation Mode: FM
Maximum Deviation: +/-10 kHz
Dynamic Range: >/=90 dB (A-weighted), typical
Total Harmonic Distortion: <1% (at 1 kHz, +/-10 kHz deviation)
Operating Range: 200' (60 m) typical
Operating Temperature Range: 40° F (4° C) to 110° F (43° C)
Frequency Response: 80 Hz to 13 kHz

RECEIVER SPECIFICATIONS

Receiving System: Non-diversity, single-channel, dual antenna system
Image Rejection: 50 dB minimum
RF Sensitivity: 20 dBuV at 60 dB S/N ratio (50 ohms termination)
Audio Output: 1/4" (6.3 mm), unbalanced: 700 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load), nominal
Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
Dimensions: 7.48" (190.0 mm) W x 1.82" (46.2 mm) H x 5.06" (128.5 mm) D
Net Weight: 11.8 oz (335 grams)
Accessory Included: Power supply

BODY-PACK TRANSMITTER SPECIFICATIONS

RF Power Output: 10 mW
Spurious Emissions: Following federal and national regulations
Input Connections: Four-pin Locking Connector
Pin 1: GND
Pin 2: INST INPUT
Pin 3: MIC INPUT
Pin 4: DC BIAS +9V
Batteries: Two 1.5V AA Alkaline (not included)
Battery Life: 8 hours (alkaline)
Depending on battery type and use pattern
Dimensions: 2.76" (70.2 mm) W x 4.08" (103.7 mm) H x 0.98" (24.9 mm) D
Net Weight: 3.0 oz (84.5 grams)
(without battery)
