Audio-Technica ATW-3131b 3000 Series Lavalier Wireless System

Audio-Technica


A frequency-agile True Diversity UHF wireless receiver with bodypack transmitter and lav mic.

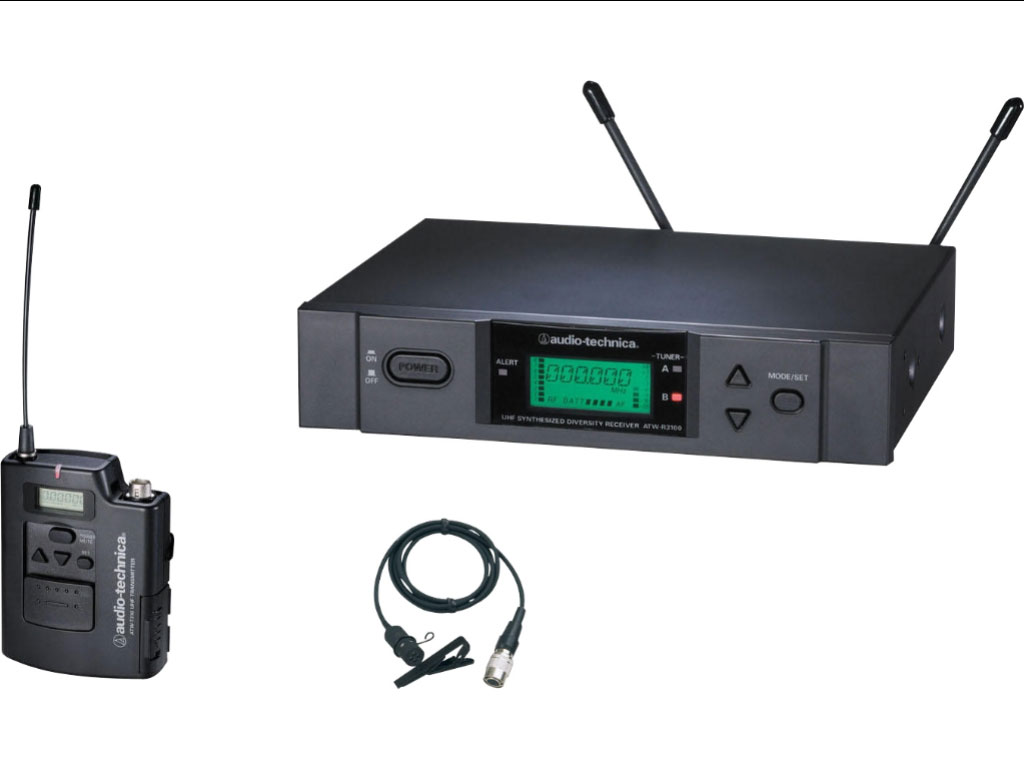

The Audio-Technica ATW-3131b Lavalier Wireless
System is part of Audio-Technica's third-generation 3000 Series wireless
systems. It includes an Audio-Technica ATW-R3100b receiver, ATW-T310b
UniPak transmitter, and an Audio-Technica AT831cW lavalier microphone.
The wireless system offers 996 selectable UHF frequencies and features
for clear sound and intuitive operation.

Audio-Technica has
simplified the selection of usable frequencies, increased system
reliability, and illuminated transmitter screens for clear reads on dark
stages. It all adds up to the luxury of rock-solid, richly detailed
high-fidelity sound.

The versatile Audio-Technica ATW-T310b
UniPak body-pack transmitter features a secure 4-pin locking connector
compatible with a wide range of microphones, as well as a guitar cable. A
3-position sliding cover on the transmitter's control panel prevents
accidental shut-off or channel-switching. A locking battery compartment
provides a more secure latch and more robust design.

The
Audio-Technica ATW-R3100b receiver is equipped with automatic frequency
scanning for easy setup. It also features true diversity reception. Two
antennas feed two completely independent RF sections on the same
frequency; automatic logic circuitry continuously compares and selects
the superior received signal, providing better sound quality and
reducing the possibility of interference and dropouts. Soft-touch
controls provide convenient access to a variety of functions, while a
backlit LCD information display provides constant monitoring of system
operation, including indication of the transmitter's battery status. The
receiver is half-width for a standard 1U 19" rack mount; rack-mount
adapters are included.

An advanced Digital Tone Lock tone
squelch system in the ATW-R3100b receiver opens only when a 3000 Series
transmitter 3000 Series Installation and Operation is detected, reducing
the possibility of interference. As a result, 3000 Series transmitters
and receivers must be used together and should not be used with
components from other Audio-Technica wireless systems, or with those of
other manufacturers. Exception: 3000 Series components are compatible
with Audio-Technica 1800 Series wireless system components.

AT831cW
lavalier microphone is a cardioid condenser mic terminated with locking
4-pin connector designed speciifcally for the A-T UniPak body-pack
wireless transmitters. It features a 55" (1.4m) cable and Includes a
windscreen and clothing clip.




Features

Includes a
ATW-R3100b receiver, ATW-T310b UniPak transmitter and AT831cW lavalier microphone
996 UHF frequencies
Antenna power available for powered antennas & other in-line RF devices
Nine pre-coordinated frequency scan groups simplify selection of usable frequencies in a multichannel wireless system
True Diversity operation reduces dropouts
Advanced digital Tone Lock squelch effectively blocks stray RF and communicates transmitter data for receiver display
Transmitter offer backlit LCD & dual-color LED
Locking battery compartment with secure latch and robust design
Ground-lift switch helps eliminate audible hum caused by ground loops
Balanced and unbalanced audio output jacks

AT831cW Cardioid Condenser Lavalier Microphone

Terminated with locking 4-pin connector for A-T UniPak body-pack wireless transmitters
55" (1.4m) cable




A discrete wireless system for pure, accurate sound. Order one today!








ATW-3131b 3000 Series Lavalier Wireless System Specifications:


Overall System
UHF Operating Frequencies (Frequency Range/Number of Frequencies)
Band C: 541.500 to 566.375MHz/996
Band D: 655.500 to 680.375MHz/996
Not all frequencies are available in all areas. Please check with local regulations.
Minimum frequency: Step 25kHz
Modulation mode: FM
Maximum deviation: ±35kHz
Dynamic range: > 110dB (A-weighted), typical
Total Harmonic Distortion: < 1% (at 1kHz, ±17.5kHz deviation)
Operating range: 100m (300'), typical
Open range environment with no interfering signals.
Operating temperature range -5°C to +45°C, 23°F to 113°F
Battery and LCD performance may be reduced at very low temperatures.
Frequency response: 70Hz to 15kHz (+1dB, -3dB)

ATW-R3100b Receiver
Receiving system: True diversity
Image Rejection: 60dB nominal, 55dB minimum
RF Sensitivity: 20dBuV at 60dB S/N ratio (50Ω termination)
Maximum Output Level:
XLR, balanced: +9dBV
1/4" (6.3mm), unbalanced: +7dBV
Antenna Input:
BNC-type, 50Ω
Bias voltage 12V DC, 60 mA, each
Power Requirements: 12-18V DC, 500 mA
Dimensions (WxDxH): 210.0mm (8.27") x 164.4mm (6.47") x 44.0mm (1.73")
(Not including BNC connectors or feet)
Net weight: 1.1kg (38.8oz.), without accessories
Accessories:
Included Two flexible UHF antennas
AC adapter (country dependent)
Rack-mount adapters

ATW-T310b UniPak Transmitter
RF power output:
High: 30mW, Low: 10mW (switchable), at 50Ω
Spurious emissions: Following federal and national regulations
Input Connection Four-pin Locking Connector (Pin 1: GND, Pin 2: INST INPUT,
Pin 3: MIC INPUT, Pin 4: DC BIAS +5V)
Batteries: Two 1.5V AA, not included
Battery Life: High: 6 hours (alkaline), Low: 8 hours (alkaline), depending on battery type and use pattern
Dimensions (WxdxH): 66.0mm (2.60") x 24.0mm (0.94") x 87.0mm (3.43")
Net weight: 81g (2.9oz.), without batteries





*Estimate Shipping between 5 - 12 weeks, or please call (083) 497-2227 for a faster air freight service with special price rate.
