Audio-Technica System 10 Digital Guitar Stompbox Wireless Controller

Wireless guitar system with pedal-style receiver.


Audio-Technica’s System 10 Stompbox digital high-fidelity guitar wireless system combines the advanced 24-bit operation, easy setup and clear, natural sound quality of other System 10 configurations with unique functionality for guitarists, bassists and other instrumentalists. Operating in the 2.4 GHz range, far from TV and DTV interference, System 10 Stompbox offers a rugged, metal, pedal board-mountable receiver with foot switch, two switched TRS balanced 1/4" outputs and an output mode selector. With the tap of a foot, musicians can toggle between outputs (e.g., for switching amps) or mute and unmute one output without muting the other (e.g., for convenient tuning). And a single receiver can be paired with up to eight UniPak® body-pack transmitters, allowing users to easily switch between instruments without having to move a body-pack from one instrument to the next.

System 10 wireless ensures clear communications by providing three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Finally, Space Diversity uses two antennas on each transmitter and receiver to maximize signal integrity.

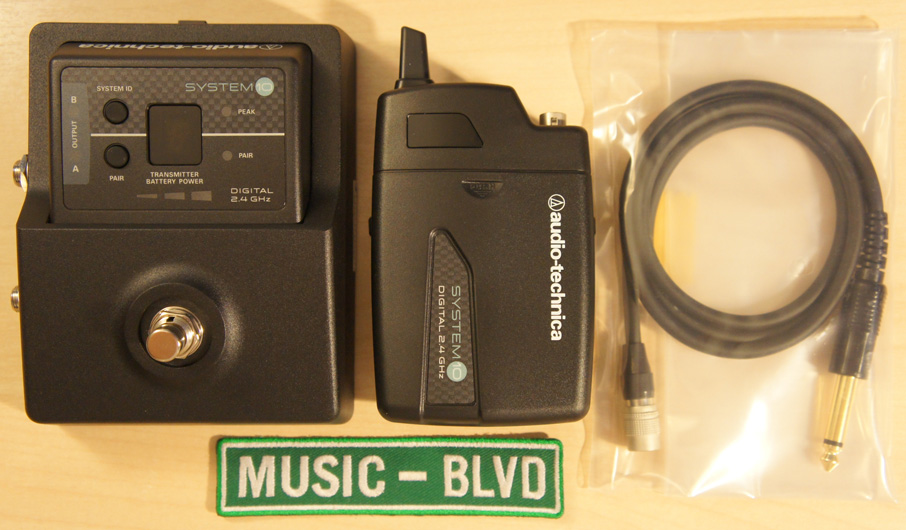

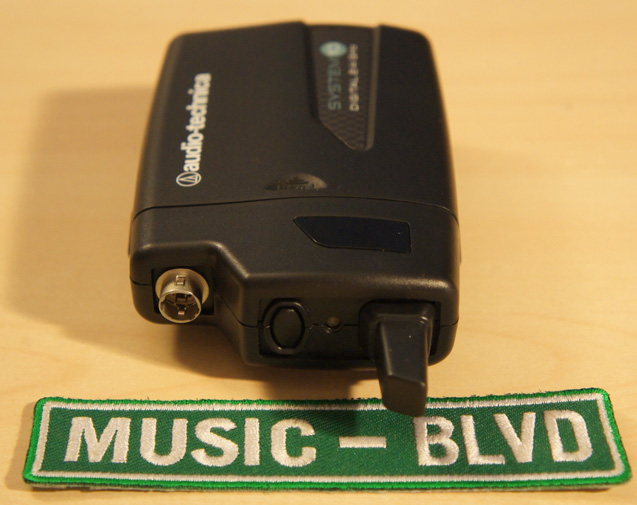

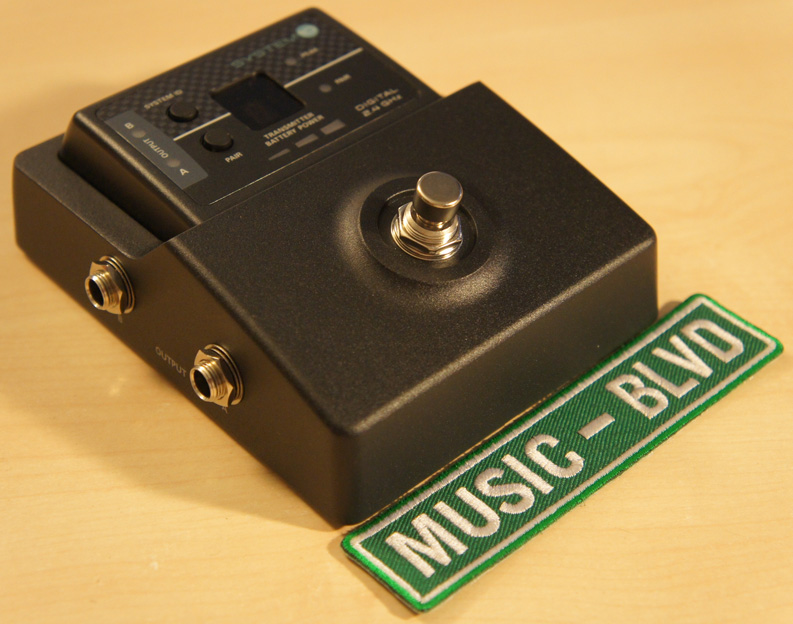

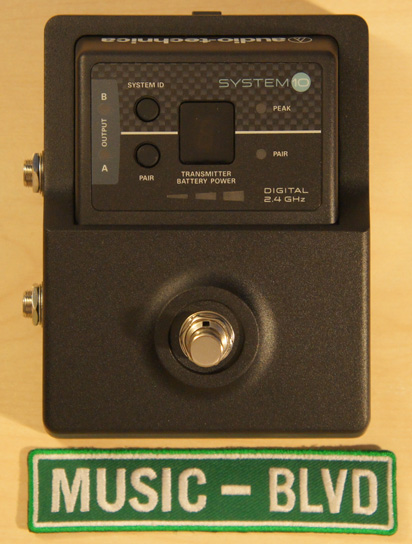

Each Stompbox system includes an ATW-R1500 Stompbox receiver, an ATW-T1001 UniPak body-pack transmitter with an AT-GcW guitar cable, and hook & loop strips for adding receiver to an effects pedal board. The ATW-R1500 is a digital receiver with sturdy, metal-body construction, easy-to-read digital ID and transmitter battery level displays, and AF Peak and Pair indicator lights.


Features

Digital 24-bit/48 kHz wireless operation


2.4 GHz range – completely free from TV interference


Three levels of diversity assurance: frequency, time, & space

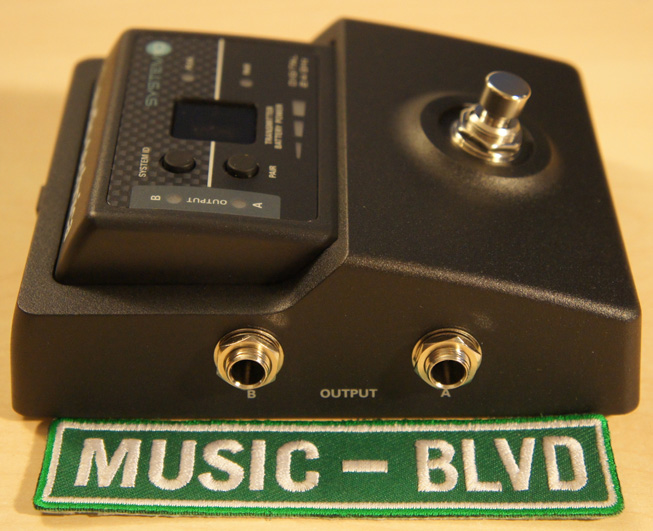

Two switched TRS balanced 1/4" output jacks

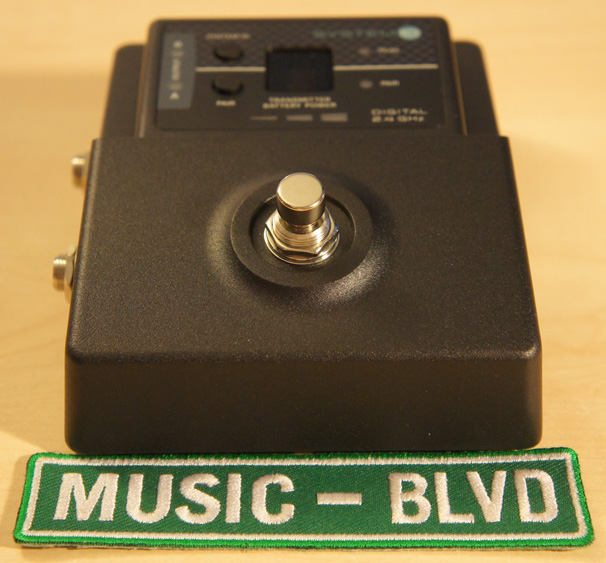

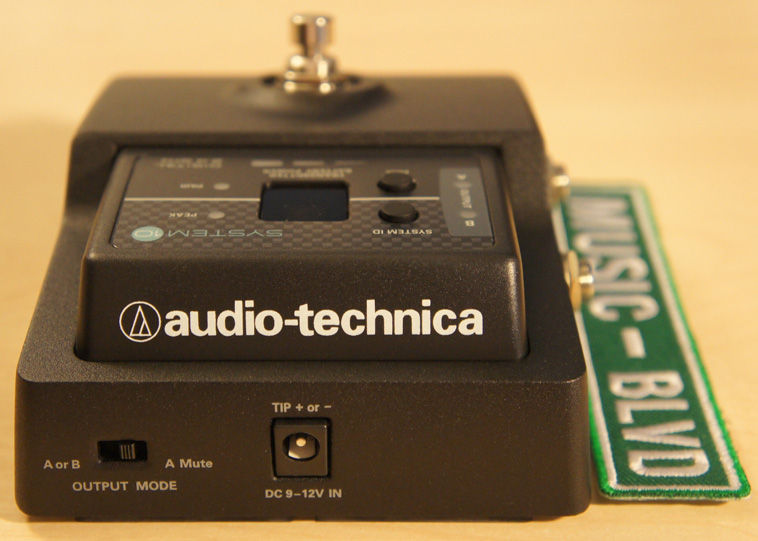

Output mode selector and foot switch to toggle between outputs


Multi-pairing function to link a single receiver with up to eight body-pack transmitters


Transmitter battery level display on receiver


Automatic frequency selection for seamless, interference-free operation


Extremely easy operation with instantaneous channel selection, sync, and setup

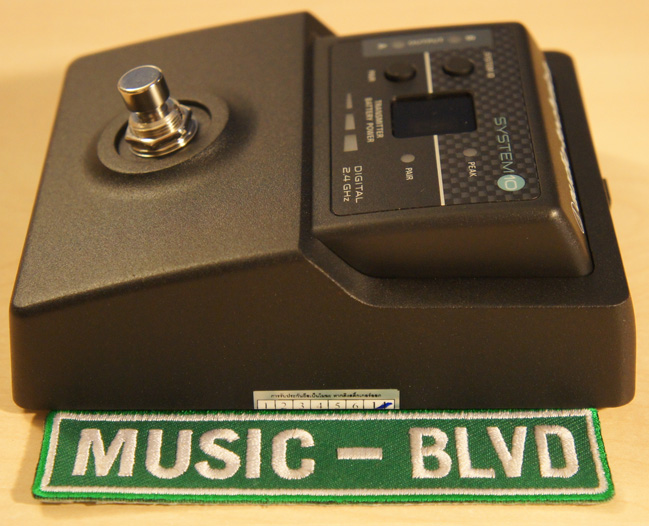

State-of-the-art digital receiver housed in a strong, metal, stompbox-style body

Included hook & loop strips for adding receiver to effects pedal board


Universal (center + or -) 9v–12v DC input


Specifications:

GENERALSPECIFICATIONS


Operating Frequencies 2.4 GHz ISM band


Dynamic Range >109 dB (A-weighted), typical


Total Harmonic Distortion <0.05% typical


Operating Range 18.3 m (60') radius, 36.6 m (120') diameter typical

Open range environment with no interfering signals


Operating Temperature Range 0° C to +40° C (32° F to 104° F)


Battery performance may be reduced at very low temperatures


Frequency Response 20 Hz to 20 kHz


Depending on microphone type

RECEIVER SPECIFICATIONS

Receiving System Diversity (frequency/time/space)

Maximum Output Level 1/4" (6.3 mm), TRS balanced: +12 dBV

Power Supply 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
Dimensions 101 mm (3.98") W x 44 mm (1.73") H x 130 mm (5.12") D

Net Weight 565 grams (19.9 oz)

Accessories Included Power supply, hook & loop fastener x2

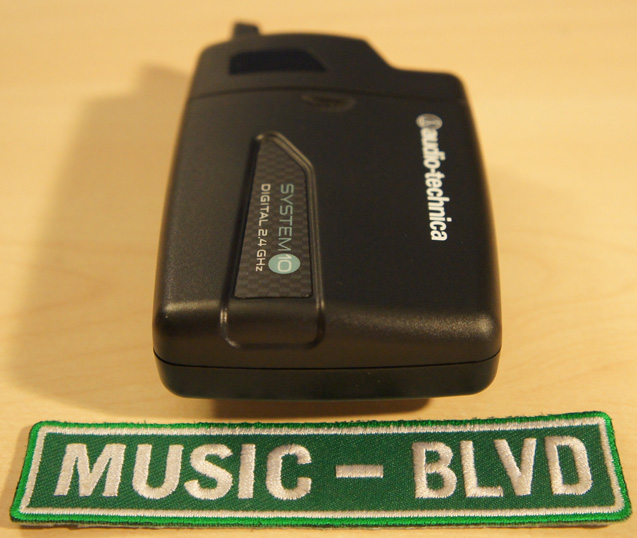

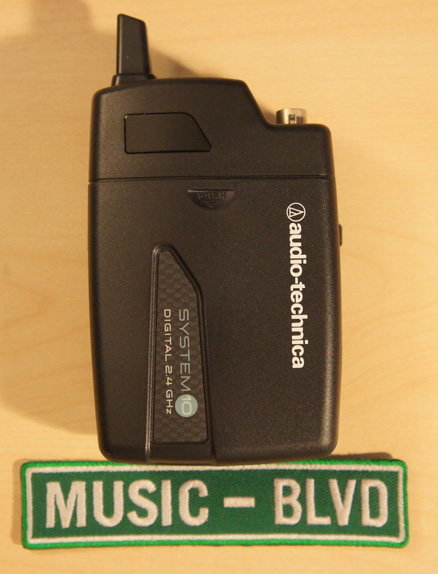

BODY-PACK TRANSMITTER SPECIFICATIONS

RF Power Output 10 mW

Spurious Emissions Following federal and national regulations

Input Connections Four-pin Locking Connector

Pin 1: GND

Pin 2: INST INPUT

Pin 3: MIC INPUT

Pin 4: DC BIAS +9V

Batteries Two 1.5V AA

not included


Battery Life >7 hours (alkaline)

Depending on battery type and use pattern


Dimensions 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D

Net Weight 100 grams (3.5 oz)

without batteries

Accessory Included AT-GcW Guitar Input Cable

Order now, and get freedom on stage at the tap of your foot!
