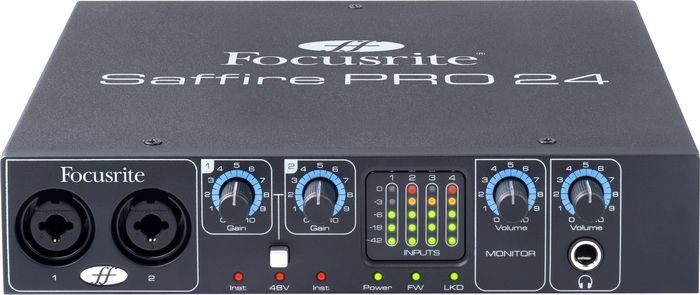

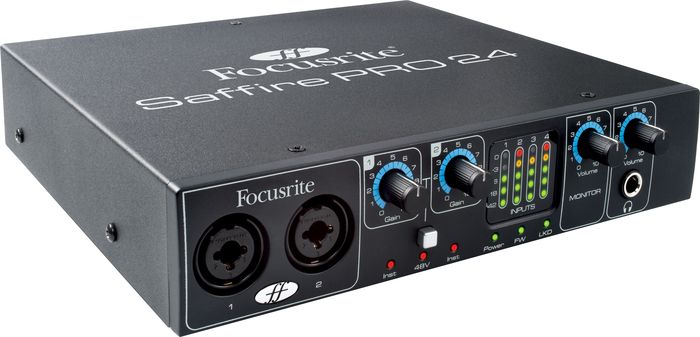

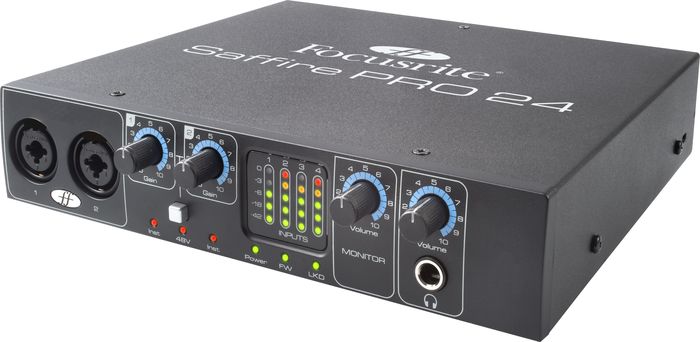

Focusrite Saffire Pro 24

An affordable Firewire interface with award-winning preamps.




The Focusrite Saffire PRO 24 is a 16 In/8 Out FireWire audio interface designed for the modern home studio environment. An unparalleled preamp legacy forms the foundation, with 2 award-winning Focusrite preamps. Legendary sonic performance and a host of I/O options combine in the Focusrite Saffire Pro 24 with the very latest in mix control software to deliver seamless integration, excellent routing flexibility and rock-solid driver stability.

Focusrite’s popular Saffire Firewire interfaces are fully compatible with Thunderbolt ports on Mac computers. All you need to connect the two is a FireWire 400-800 cable (included with all new Saffire interfaces later this year) and the Thunderbolt to FireWire 800 adapter (not included). Simply plug this into the Thunderbolt port on your computer and connect the FireWire interface – it’s as simple as that. Saffire interfaces are 100% compatible with Thunderbolt using this adaptor.






Features


2 high-quality, award-winning Focusrite mic-pres — Focusrite interfaces are always the best-sounding interfaces in their class
High Quality 24-bit/96kHz Firewire Interface — Features professional conversion and JetPLL jitter elimination technology, guaranteeing pristine audio quality and reliable synchronization
Total I/O count of 16 inputs and 8 outputs- A host of I/O options are provided, including a unique loopback facility for routing audio between software applications via Saffire Mix Control

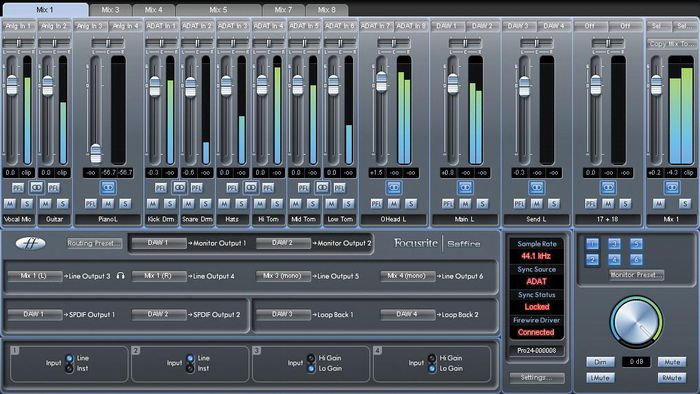

Saffire Mix Control latency-free DSP Mixer/Router — This 18 x 8 DSP mixer provides truly flexible routing and monitoring capabilities alongside intuitive one-click setup solutions

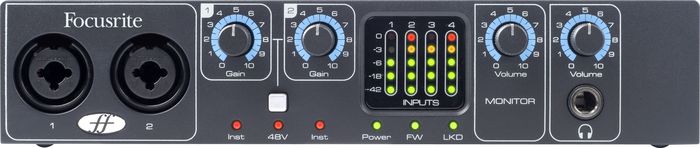

Class-leading LED metering — 5-LED metering offers accurate viewing of analogue input levels direct from the front panel
Focusrite VST /AU Plug-in Suite, for use in the mix — Upgrade your standard sequencer effects with Focusrite Compression, Reverb, Gating and EQ VST/AU plug-ins
Unmatched routing flexibility — Setup for any recording session quickly and intuitively. Route any input signal or DAW output, or a mix of both, to any of the outputs
Dedicated front-panel headphone bus
Bus-powering
Two Hi-Z instrument inputs
Tactile Main Monitor Dial
Switchable phantom power
Software PFL




Get superior connectivity today!






Saffire Pro 24 Specifications:





Microphone Inputs
Dynamic Range (A-Weighted): 106dB
SNR (A-weighted): -105.3dB
Frequency Response: 20Hz - 20kHz +/- 0.1 dB
THD+N: 0.001% (measured at 1kHz with a 20Hz/22kHz bandpass filter)
Noise: EIN > 125dB (128dB analogue to digital) (measured at 60dB of gain with 150 Ohm termination (20Hz/22kHz bandpass filter)
Maximum level (A-weighted): 8.6dBu at 1%
Line Inputs
Dynamic Range (A-Weighted): 106.5dB
SNR (A-weighted): -106dB
Frequency Response: 20Hz - 20kHz +/- 0.1dB
THD+N (A-Weighted): < 0.001% (measured with 0dBFS input and 22Hz/22kHz bandpass filter)
Noise: -90dBu (22Hz/22kHz bandpass filter)
Maximum level (A-weighted): 16.3dBu at 1%
Instrument Inputs
Frequency Response 20Hz-20KHz +/- 0.1dB
Maximum Input Level min gain no pad +8dBu
Maximum Input Level max gain no pad -42dBu
THD+N, -1dBFS, min gain, no pad < 0.0015%
SNR 105dB "A"
DNR 105dB "A"
Input Impedance > 1MOhm
X-talk < -100dB
Adjustable Gain > 50dB
Pad Attenuation 10dB
Headphone Outputs
Frequency Response 20Hz-20KHz +/- 0.1dB
SNR 105dB "A"
DNR 105dB "A"
Maximum Output into 32R +12.4dBu (+10.2dBV)
Power into 32R 250mW
Output Impedance < 7Ohms
Load Impedance > 24Ohms
Line level Outputs
Dynamic Range (A-Weighted): 105dB
SNR (A-weighted): -104.5dB
THD+N: < 0.001% (measured with 0dBFS input and 22Hz/22kHz bandpass filter)
Maximum level (A-weighted): 16.13dBu at 0.885%
Additional Conversion Performance
Clock jitter < 250 picoseconds
THD+N AMPL (A-weighted)= -107dBFS

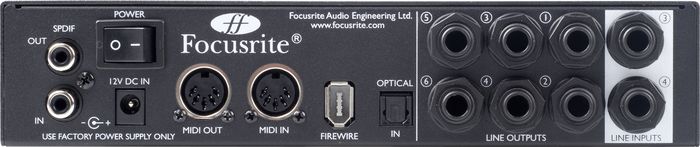

CONNECTIVITY
Analogue Channel Inputs (Inputs 1-4)
2 x XLR Mic/Line Neutrik Combi-Jacks (Inputs 1-2)
2 x XLR Instrument Neutrik Combi-Jacks (Instrument on inputs 1 and 2 only) Automatic switch of Mic / Line (inserting a jack switches from Mic to either Line or Instrument (instrument selected via the software control panel)Line inputs 3-4 have low and high gain settings can be controlled from the Saffire MixControl software (low gain being the default)
Digital Channel Inputs (Inputs 5-14) 44.1-96kHz
Stereo S/PDIF input on RCA
1 x 8 channel ADAT input on Optical Connector (SDPIF 3&4 set in preferences menu)
Analogue Audio Outputs (Outputs 1-6)
6 x TRS analogue outputs (Outputs 1-6)
1 x TRS stereo headphone output (same as outputs 3 & 4)
Digital Channel Outputs (Outputs 7-8) 44.1-96kHz
Stereo S/PDIF output on RCA
Other I/O
1 x 6-pin FireWire socket
2 Standard 5-pin DIN MIDI connectors: In and Out
12V DC power input connector for use with external PSU
Weight and Dims
1.6kg / 3.5 lb
215mm / 8.5" (W) x 45mm / 1.8" (H) x 220mm / 8.65" (D)
