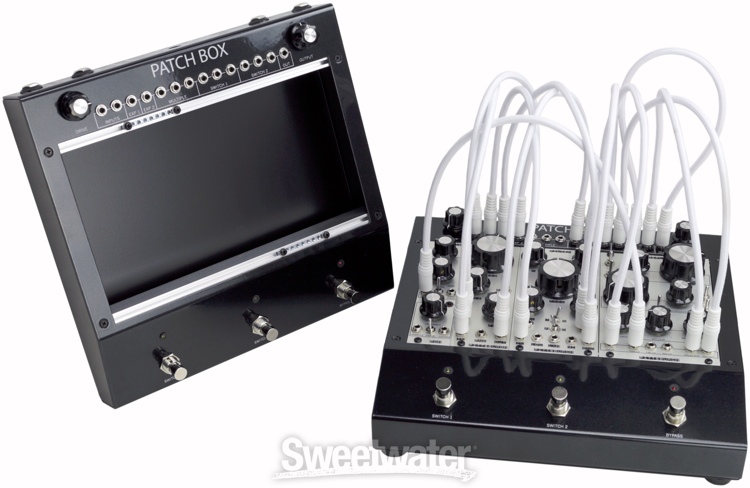

Pittsburgh Modular Patch Box FX1 - Eurorack Modular Multi-effects Pedal System

Freely configurable Analog Multi-effects

Guitarists and keyboard players, meet your new all-analog,
modular multi-effects system: the Pittsburgh Modular Patch Box FX1. It
packs four awesome effects modules in a stompbox: the Analog Replicator
delay, an all-analog Filter, the Crush analog signal decimator, and the
LFO2 to modulate effects parameters. You can use patch cables to route
your signal through these modules any way you like and even switch
signal paths with an optional footswitch. Create delays modulated with a
slowly sweeping bandpass filter, add an expression pedal for wah
effects, or even swap out the effects for other Eurorack modules with
the Pittsburgh Modular Patch Box FX1.





Pittsburgh Modular Patch Box FX1 Eurorack Modular Multi-effects Pedal System at a Glance:

Eurorack modules aren't just for synthesizers anymore

Route effects with patch cables, switch signal routing with footswitches

Built-in signal splitter for layered effects

Eurorack modules aren't just for synthesizers anymore

When
we investigated the Pittsburgh Modular Patch Box FX1 here at
Sweetwater, we quickly realized it has appeal for guitarists,
keyboardists, and synth players alike. Guitarists and keyboardists can
tap into a whole world of analog effects modules, with complete control
over every aspect of the signal path. The Patch Box FX1 even packs a
great-sounding instrument preamp, which can be driven to distortion
without overloading the effects modules. Synth players can use the Patch
Box FX1 just like any other Eurorack case, with the added benefit of
footswitch functionality and more I/O options. And because all the
routing is done with cables and CV signals, it's easy to integrate the
Patch Box FX1 with a separate modular system - your band's synth player
could be modulating your effects while you play a solo, for instance. We
could write thousands of words and still not cover all the creative
potential the Patch Box FX1 offers in stage and studio applications.

Route effects with patch cables, switch signal routing with footswitches

Creating
your own multi-effects with the Pittsburgh Modular Patch Box FX1 can be
as simple or as complex as you want. In a very basic configuration,
you're simply determining the order of these great-sounding effects,
connecting the output of one module to the input of the next module.
Want some modulation on your delays, for example? Grab another cable,
and connect one of the LFO2 module's outputs to one of the CV inputs on
the Analog Replicator module. You can even set up different signal
routes for Switch 1 and Switch 2, completely reconfiguring your effects
routing with a tap of your foot.

Built-in signal splitter for layered effects

Right
after the Patch Box FX1's preamp stage, a signal splitter gives you two
outputs to route your signal from. You can use these to create two
independent signal paths and switch between. You can also use them to
create two separate effects chains and combine them at the output stage
for more creative options. For example, you can run your guitar signal
into the Analog Replicator delay module and the Filter module
simultaneously, and then run just the filtered signal through the Crush
module. The delay module will affect your full-range guitar tone, while
the Crush module will only decimate your filtered frequencies. You could
spend months just exploring the capabilities of the modules that come
with the Patch Box FX1. When you consider that you can swap out the
modules for any Eurorack modules of your choice, you'll see that the
Patch Box FX1 provides unlimited creative potential.

Pittsburgh Modular Patch Box FX1 Eurorack Modular Multi-effects Pedal System Features:

Modular multi-effects pedalboard with delay, filter, decimation and LFO modules

Use patch cables to route signals and effects modulation any way you like

Create a serial effects chain, or create two independent effects chains and switch between them

High-quality instrument preamp can be driven to distortion without overloading modules

Includes Analog Replicator delay module, Filter module, Crush module, and LFO2 module

Comes with 12 Nazca-brand patch cables

Inputs for instrument and 2 optional expression pedals

"Multiple" signal splitter allows you to create 2 copies of any signal

Switch 1 and Switch 2 can be used to switch signal paths or as on/off switches

True-bypass switch enables/disables entire Patch Box

Compatible with any Eurorack-format modules

Rugged steel case construction

9 sliding square nuts per rail support up to 9 modules

Available width for modules: 213mm (42hp)

Available depth for modules: 42mm


Create your own custom analog multi-effects chain with the Pittsburgh Modular Patch Box FX1!


Tech Specs



Sound Engine Type(s)
Analog


Effects Types
Delay, Filter, Crush, LFO


Analog Inputs
1 x 1/4" instrument, 2 x 1/4" expression


Analog Outputs
1 x 1/4"


Height
2.25"


Width
9.5"


Depth
9"


Power Supply
15V DC power supply included


Manufacturer Part Number
Patchbox FX1
