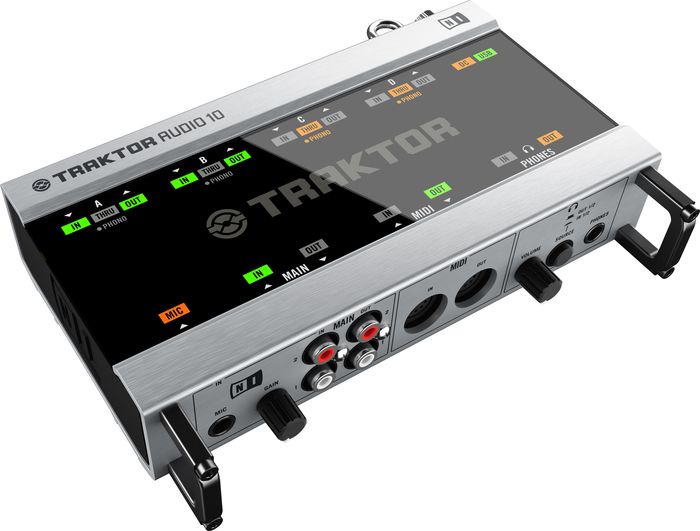

Native Instruments Traktor Audio 10

Advanced DJ audio interface providing 10 inputs and 10 outputs for professional DJs requiring the ultimate in connectivity.

The TRAKTOR AUDIO 10 is a powerhouse unit that sets a new benchmark for DJ audio interfaces. The successor of the highly acclaimed AUDIO 8 DJ has been carefully refined, now achieving a new level in connectivity and performance. With ten inputs, ten outputs, four phono preamps, MIDI I/O, and mic input, TRAKTOR AUDIO 10 will satisfy even the most demanding DJs. This premium DJ audio interface is built on the established and award-winning design of NI audio and hardware gear: Extra-robust metal casing, high-end Cirrus-Logic AD/DA converters, brand-new chip technology, and completely revised driver architecture ensure top sound quality and low latency for professional use on stage and in the studio. Ultimate Connectivity Even when routing four separate stereo outputs to a 4-channel mixer, there's still an additional output for various purposes. The additional stereo input makes working with a send FX chain on your external mixer easy: Use each TRAKTOR effect like it was a separate FX unit in your studio. Furthermore, the extra inputs and outputs offer yet more flexibility if you're DJing with TRAKTOR's Sample Decks and Loop Recorder. The built-in MIDI interface makes it possible to tempo-sync other music equipment like external drum machines, synthesizers, or another computer with the tempo of your tracks. And, thanks to its 4 phono preamps, TRAKTOR AUDIO 10 allows to connect four turntables simultaneously. Installation Friendly Besides premium sound quality, low-latency, and ultimate connectivity, this interface also boasts many other advanced features specifically designed for club use: The convenient status LEDs on the upper panel give instant visual feedback on input and output activity, so you know if your setup is hooked up and working correctly. Now it’s also possible to run the TRAKTOR AUDIO 10 via its power supply only, as a Direct Thru unit. This means the soundcard is capable of passing through a signal from other equipment (turntables / CD players) without being connected to your computer - so switching between DJs or different setups is finally made simple - perfect for permanent club installations. Auto Detection The new Auto Detection makes connecting and disconnecting your audio interface a breeze - even while there are tracks playing in TRAKTOR. Assisted by the Setup Wizard with a drop down menu of interfaces, just select your interface and setup (internal or external mixer). The Wizard assigns inputs and outputs for you. In the future, TRAKTOR detects when the same audio interface is connected via USB and automatically sets up your preferred routing again. When disconnected, TRAKTOR automatically switches back to the internal computer soundcard. For further safety, TRAKTOR AUDIO 10 will revert to the user-definable start-up configuration when USB is disconnected which is Direct Thru by default. TRAKTOR LE 2 TRAKTOR LE 2 is the lightest version of TRAKTOR DJ software available, yet still includes everything you need to get your mix on. Start mixing your favorite MP3s on two decks within minutes, using the handy Crate Flick option to browse your virtual crates, with full iTunes integration and iPod compatibility. TRAKTOR's stunning beat detection and BPM sync give you the power to perform perfect mixes using the built-in mixer and cross fader, while flavoring your sets with three effects, expressive filters and instant looping functions for extra creative control - letting you go beyond ordinary DJing.


Features


Professional DJ audio interface with unrivalled connectivity
10 inputs and 10 outputs - 4 phono preamps to connect up to four turntables
Extra-loud output levels pack enough punch to rock the biggest clubs
High-quality 24-bit / 96kHz Cirrus Logic AD/DA converters for studio-grade sound quality
Mic input and additional MIDI I/O port for MIDI gear without USB connector
New low latency Mac and PC drivers for tightest possible response
25 status LEDs for visual monitoring of signal chain
Easy club installation with Direct Thru mode and included power supply
Compatible with all DJ, performance and audio software
Includes TRAKTOR DJ software so you can start mixing right away
What's new compared to Audio 8 DJ:
TRAKTOR AUDIO 10 DJ is the successor of AUDIO 8 DJ, and now comes with enhanced connectivity, better sound quality, streamlined usability and even lower latency:
Two more inputs and outputs – features a pair of stereo inputs and outputs on the front of the unit, ideal for setting up Send & Return effects through your DJ mixer
New processor – better performance with low-latency ensures a rock-solid foundation to your DJ sets
New 'Direct Thru' mode - run TRAKTOR AUDIO 10 via its power supply only (no computer, no multicore cables), perfect for club installations
Four phono preamps instead of two to connect up to 4 turntables

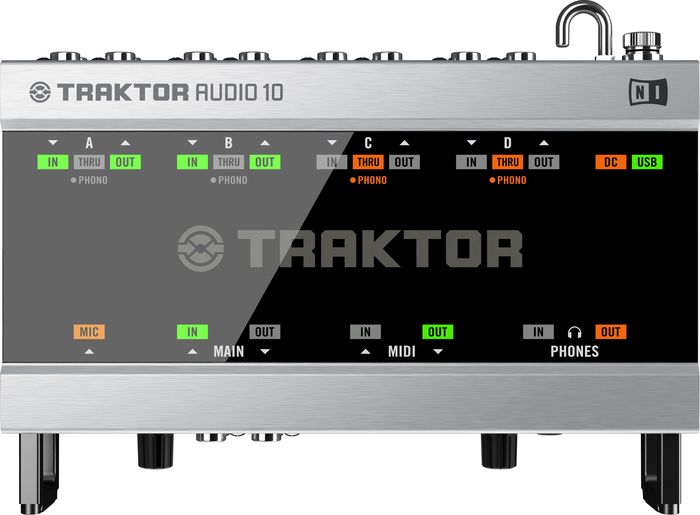

Improved visual feedback – larger, clearer LEDs communicate essential info on the unit's top panel
Audio Control Panel – software application that allows you to test and configure your NI device (e.g. set different sample rate, set up audio routing)

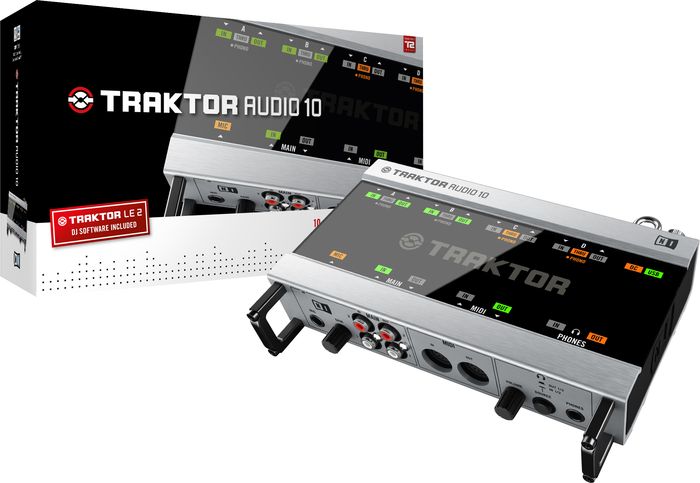

Includes:
TRAKTOR AUDIO 10 audio interface
TRAKTOR LE 2
Power supply , USB cable
Setup guide, beatport giftcard



Order this special interface today and get prepared to start recording right away.
Traktor Audio 10 Specifications:



System Requirements


Windows XP (latest Service Pack, 32-bit) or Windows Vista (latest Service Pack, 32/64-bit) or Windows 7 (latest Service Pack, 32/64-bit), Intel Pentium 4 or Intel Core or AMD Athlon 64, 2GB RAM


Mac OS X 10.5 (latest update) or 10.6 (latest update), Intel Core Duo, 2 GB RAM


Supported Drivers


ASIO


Core Audio


DirectSound


WASAPI


Dimensions (WxHxD):


192mm x 45mm x 144mm / 7.6" x 1.8" x 5.7”


Weight: 950 g / 2.09 lb.


Power Supply


Power Supply via included power plug (9 V, 1200 mA). TRAKTOR AUDIO 10 will only work with Power Supply connected.


Hardware Specifications


Audio Converters:


Channels (A/D, D/A): 10, 10


Sample Rates: 44.1, 48, 88.2, 96 kHz


Bit Resolution: 16, 24-bit


Converter: Cirrus Logic


Line Inputs:


Input Impedance: 47 kOhm


A/D-D/A to Output:


Full Scale Input Level: +12 dBu, 3.08 Vrms


Gain: -2.6 dB


Dynamic Range: 98.4 dB (A)


THD+N (Full Scale Level): 0.027 %


Frequency Response (96 kHz), -1 dB: 13 Hz - 45 kHz


Direct Thru:

Maximum Input Level: +13.2 dBu, 3.5 Vrms
Gain: -4.7 dB
Dynamic Range: 105.5 dB (A)
THD+N (Maximum Level): 0.0026 %
Frequency Response, -1 dB: 13 Hz - 70 kHz
Phono Inputs:
Input Impedance: 47 kOhm
A/D-D/A to Output:
Full Scale Input Level @ 1 kHz: -22.2 dBu, 60 mVrms
Gain @ 1 kHz: +31.5 dB
Dynamic Range @ 1 kHz: 95.7 dB (A)
THD+N @ 1 kHz: 0.03 %
Frequency Response: IEC curve +/- 1 dB
Direct Thru:
Maximum Input Level @ 1 kHz: -16.2 dBu, 120 mVrms
Gain @ 1 kHz: +29.1 dB
Dynamic Range @ 1 kHz: 95.9 dB (A)
THD+N @ 1 kHz: 0.02 %
Frequency Response: IEC curve +/- 1 dB
Line Outputs (D/A):
Full Scale Output Level: +9.6 dBu, 2.35 Vrms
Dynamic Range: 102.1 dB (A)
THD+N: 0.015 %
Frequency Response (96 kHz), -1 dB: 8 Hz - 45 kHz
Headphone Output:
Maximum Output Level @ 10 kOhm: +13.3 dBu, 3.55 Vrms
Maximum Output Power: 40 mW @ 100 Ohms, 15 mw @ 33 Ohms
THD+N (Maximum Level, 100 Ohms): 0.013 %
Frequency Response (96 kHz), -1 dB: 10 Hz - 45 kHz
