Zoom F8 Multitrack Field Recorder

Revolutionary Multitrack Field Recorder
Zoom raises the bar on indy film and media production
If you work in independent film production or mobile media recording, then the Zoom F8 is the affordable multitrack field recorder you've been waiting for. This 8-in/4-out 10-track field recorder offers the professional features you need, such as low-noise preamps, timecode compatibility, extensive onboard metering, and dual redundant SDXC card recording at up to 24-bit/192kHz. Multiple power sources include internal and external batteries plus AC, and the F8 even goes beyond most high-end field recorders with its included camera-mounting bracket and Bluetooth remote control via free iOS app. These are just a few of the reasons why the long-time media production pros at Sweetwater are so excited to talk about the Zoom F8.

Professional 8-in/4-out 10-track field recorder
Redundant recording at up to 24-bit/192kHz
Full dropframe and non-drop timecode compatibility
3 power supply options accommodate any environment
Amazing accessory package included plus optional extras












Professional Multitrack Recording
The resolution and recording formats that matter
With the capability to record all eight inputs at once plus a separate 2-track stereo mix — essential for efficient editing workflows — in either BWF-compatible WAV or high bit rate MP3 formats, the Zoom F8 bridges the gap between DIY media production and professional video applications. But regardless of whether you're recording a series of individual microphones or capturing both surround sound and stereo feeds simultaneously, the impressive track count is only the beginning of the F8's recording capabilities. An adjustable limiter provides 10dB of extra headroom for each track, highpass filters cut down wind noise, and an optional 6-second pre-record buffer ensures you won't miss a cue. Dual channel recording lets you capture four inputs each on two separate tracks with different settings, and redundant recording to two independent SD/SDHC/SDXC cards (up to 512GB each) plus automatic saving ensures your data is safe, even if disaster strikes.

Record 8 input sources plus a stereo mix
Broadcast WAV resolution up to 24-bit/192kHz
Dual SD card recording provides instant backup security
Automatically capture up to 6 seconds before recording
Limiting, delay, highpass processing, and more onboard





The Quality I/O You Need
Essential connections for full-scale field recording

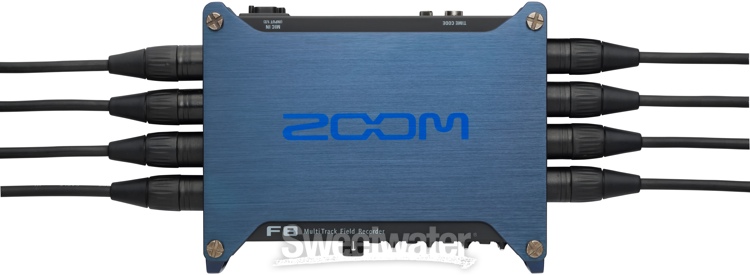

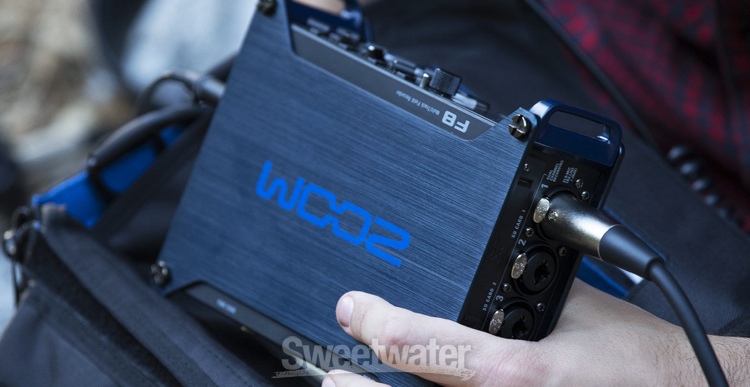

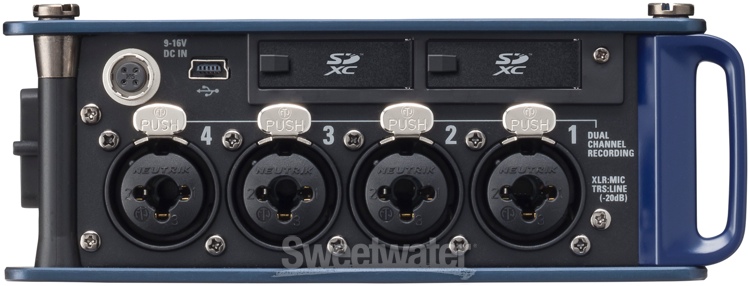

Despite its small form factor, the F8 manages to offer an amazing amount of I/O. The star of the show is a set of eight locking Neutrik Combo jacks, which accept both XLR and 1/4" TRS input. Each of these inputs feeds a separate microphone preamplifier spec'd to an impressive -127dBu EIN and capable of providing up to 75dB of gain. There's also individually switchable +24V/+48V phantom power on each mic pre, allowing you to power individual condenser microphones, without wasting battery power. A 10-pin Zoom mic capsule port on the back of the F8 also comes in handy if you want to set up a reference mic directly at the camera, plus there's a slate mic built in. On the output side, a pair of TA3 mini-XLR jacks provides stereo master outs, and a 100mW headphone amplifier delivers enough volume for even the noisiest environments.
Inputs and Outputs at a Glance:

Main inputs via 8 locking Neutrik Combo jacks
8 mic pres with phantom power and 75dB of gain
10-pin port accommodates Zoom microphone capsules
Playback audio over T3A ports and 1/8" out
Powerful 100mW headphone amplifier onboard







Essential Timecode Compatibility
Timecode sync for use in professional productions

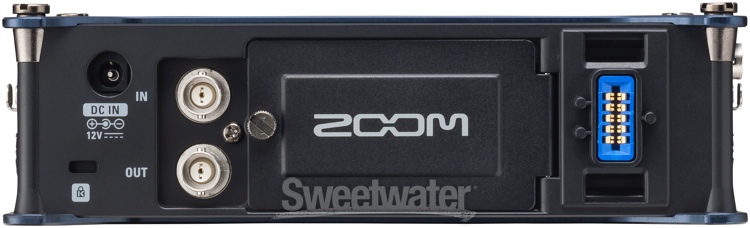

Timecode is the backbone of media production, and for years video professionals have come to Sweetwater looking for an affordable multitrack recorder with full timecode implementation. That's why we're so happy to offer the Zoom F8. BNC connectors provide integration with standard media rigs and a full range of timecode formats, including dropframe and non-drop settings. The F8 can also jam sync to external devices for field use and applications where cable runs are impossible. And thanks to its precision oscillator, which provides 0.2 ppm accuracy, you're sure to get rock-solid video/audio synchronization with your Zoom F8 multitrack recorder.

Full timecode support for use with professional setups
Includes all standard dropframe and non-drop formats
Timecode I/O via universally compatible BNC connectors
Jam sync for use where cabling isn't possible
Precision oscillator generates timecode at 0.2 ppm accuracy





Critical Metering at a Glance
Convenient LED meters, high-res display, and more

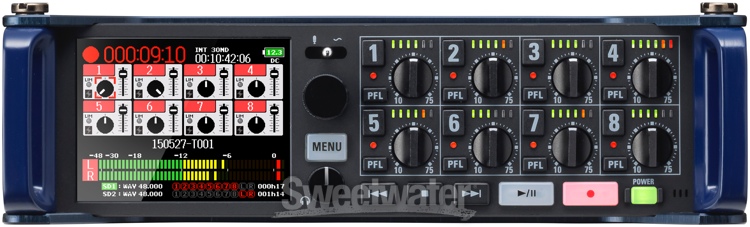

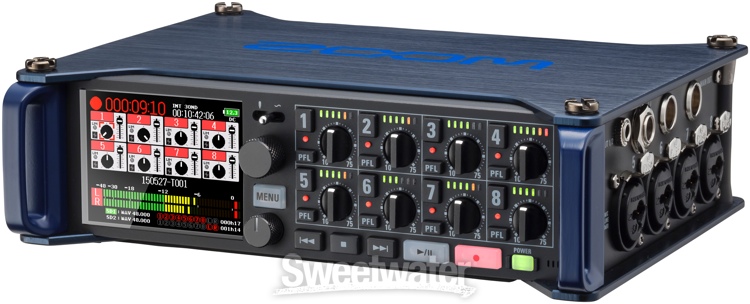

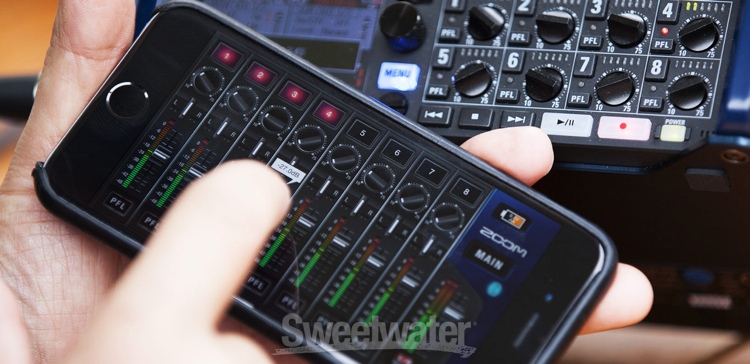

Metering is absolutely critical when you're recording in the field, and in poor-visibility environments, the Zoom F8's high-visibility meters and displays are real lifesavers. For starters, the 6-segment LED channel meters are adjustable, so you can make them dim enough to stay subtle in dark locations or bright enough to remain easy to read in full sunlight. The 2.4" LCD, which is switchable between full-color and monochromatic modes, provides you with enough resolution to keep track of all of your input settings, timecode, battery power, master levels, and more. If you need remote metering and control, then you're going to love the F8's Bluetooth capabilities, which let you connect your iOS device for fast and accurate metering plus touch control over all of its major functions, as well as advanced settings such as file name, metadata, and more.

Comprehensive metering options include LCD and LEDs
Adjustable LED brightness for dark and sunlit environments
High-resolution LCD switchable between color and grayscale
Detailed monitoring for single or multiple tracks
Access advanced functions and metering via iOS app







Flexible Power Options
Perfect power where and when you need it

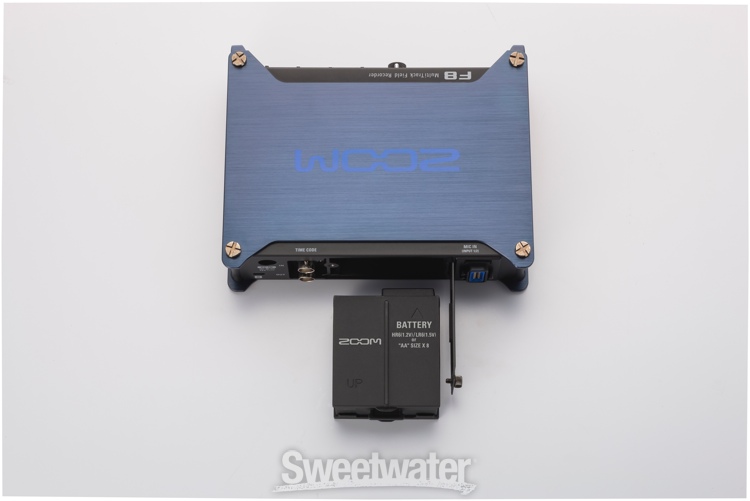

With three ways to power it, the Zoom F8 delivers the portability you'd expect from a professional multitrack field recorder. A 4-pin Hirose connector provides easy compatibility with standard 9-16V DC battery packs, providing a near universal solution for extended shoots and mobile recording applications. Just the same, it's great to know that you can always load the F8 with eight standard AA batteries in a pinch or when run-and-gun recording makes bulky battery packs inconvenient. In fact, you can keep a set of AAs in the F8 and have it switch to internal backup power at a user-definable voltage, and optional headphone power alerts can keep you on top of low-power situations. And when you don't need battery power, you can always switch to the included 12V AC adapter.

Choose from 3 power options for maximum flexibility
Hirose connector accommodates 9-16V DC batteries
Switch to internal AA batteries at adjustable voltage
Headphone battery alerts provide low-power warnings
12V AC adapter provided for standard wall current





Your Complete Zoom F8 Rig
Amazing accessories let you get more from your F8

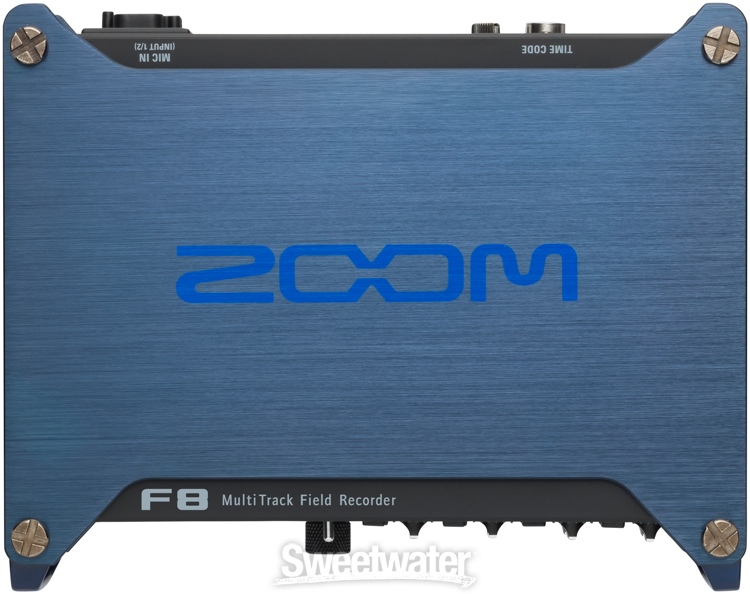

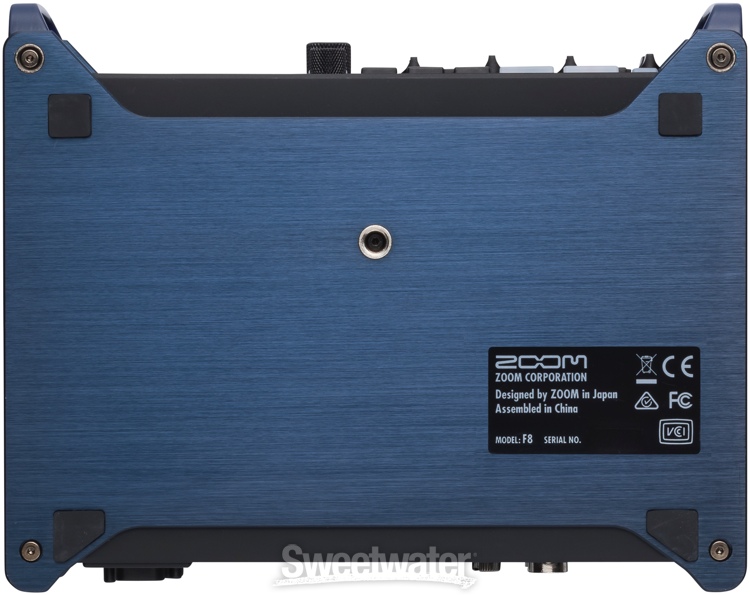

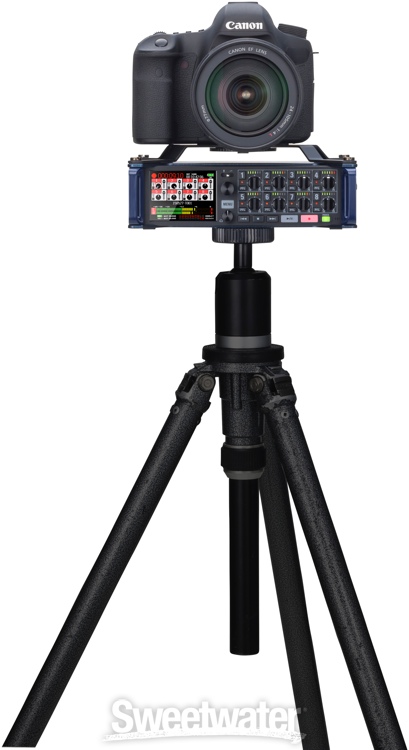

Another thing that sets the Zoom F8 apart from comparable multitrack field recorders is the accessories package that it comes with. One of the stars of the included accessories is the camera mount adapter, an item that's a costly after-market accessory for other multitrack field recorders. This bracket attaches directly to the top of the F8 and allows you to mount a DSLR or similar camera above, while the standard 1/4"-20 threading on the bottom of the recorder allows for easy mounting to camera tripods and other hardware. Add an optional Zoom Mic capsule (available right here at Sweetwater), and you've got an amazing on-camera audio setup. There's an inexpensive optional F8 Field Bag available too, which is great for on-the-go recording. Zoom also includes a pair of TA3 to XLR cables for easy playback on stereo speakers. And since the F8 also doubles as an 8-in/4-out 96kHz USB audio interface, they've included download codes for Cubase LE and WaveLab LE for your Mac or Windows PC.

Camera mount adapter simplifies tripod rigging

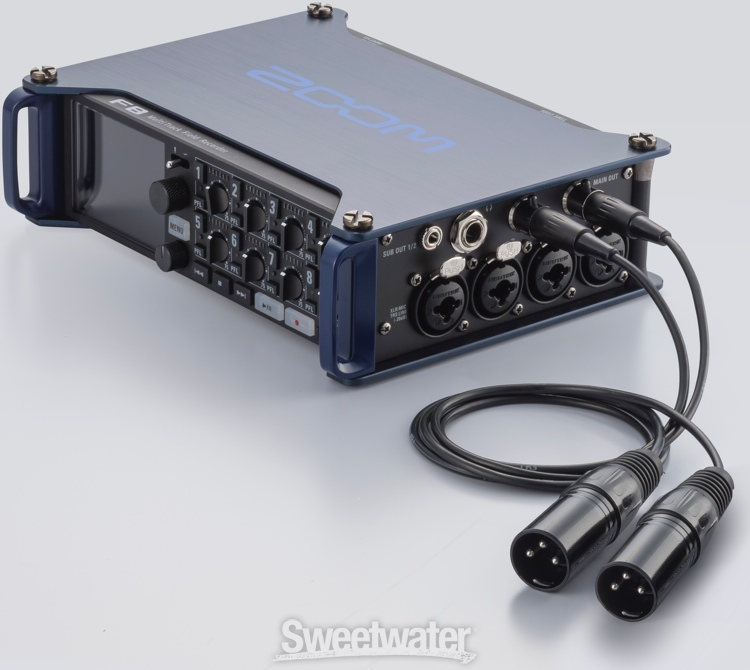

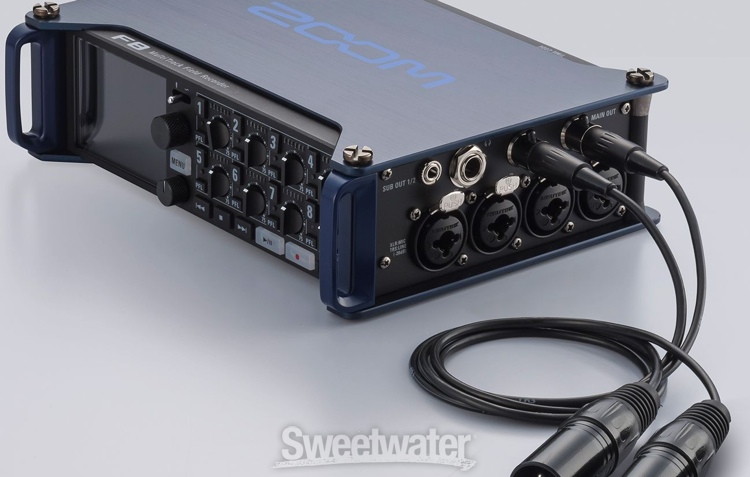

Included TA3 to XLR cables accommodate studio monitoring
Cubase LF and WaveLab LE download codes provided

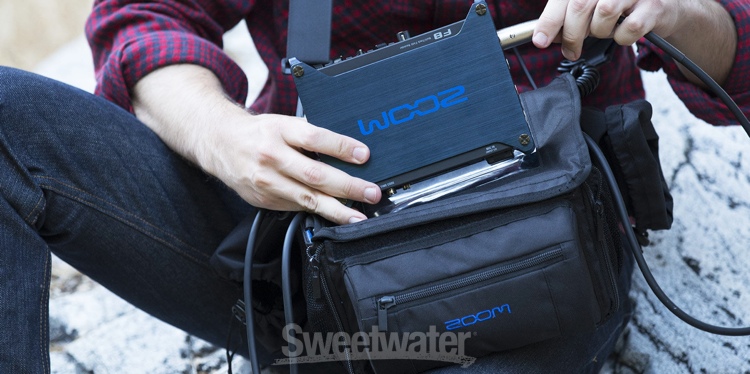

Optional F8 Field Bag makes field recording easy
Add Zoom Mic Capsules for on-camera recording







If you're into indy video or mobile media production, then the Zoom F8 field recorder is an obvious choice. This flexible multitrack recorder fits into any rig and provides access to professional workflows for an entry-level price. With great accessories to choose from and included hardware to fit your DSLR video setup, the Zoom F8 is the complete field recording package you've been waiting for.







Reviews
Based on 1 review
Write Your Review



Zoom F8 Sounds great
by Rob C. from San DiegoSeptember 18, 2015
It may not get 5 stars when compared to something 3-4 times the price, but it definitely deserves it for the price point and what it delivers. I am getting really pristine recordings from these preamps. The headphone monitoring issue is going to be addressed in the next firmware so I won't address it further. The Ipad interface is great and works every time. This will surely change the landscape of field recording. I loved my zoom H6 but this guy is a giant leap forward.

Write Your Review

Tech Specs



Simultaneous Rec Tracks
8


Simultaneous Play Tracks
4


A/D Resolution
24-bit/192kHz


Built-in Mic(s)
1


Audio Interface
Yes


Analog Inputs
8 x XLR/TRS Combo


Analog Outputs
2 x TA3, 1 x 1/8" (Sub)


Digital Inputs
1 x BNC (Time Code)


Digital Outputs
1 x BNC (Time Code)


Headphone Outputs
1 x 1/4"


Memory (removable)
SD, SDHC, SDXC


USB
USB Mini


Power Supply
8 x AA, 12V Adapter or DC Battery Packs


Max Battery Life
12.5 hours


Stand Mountable
Yes


Height
2.1"


Width
7"


Depth
5.5"


Weight
2.1 lbs.


Manufacturer Part Number
ZF8
