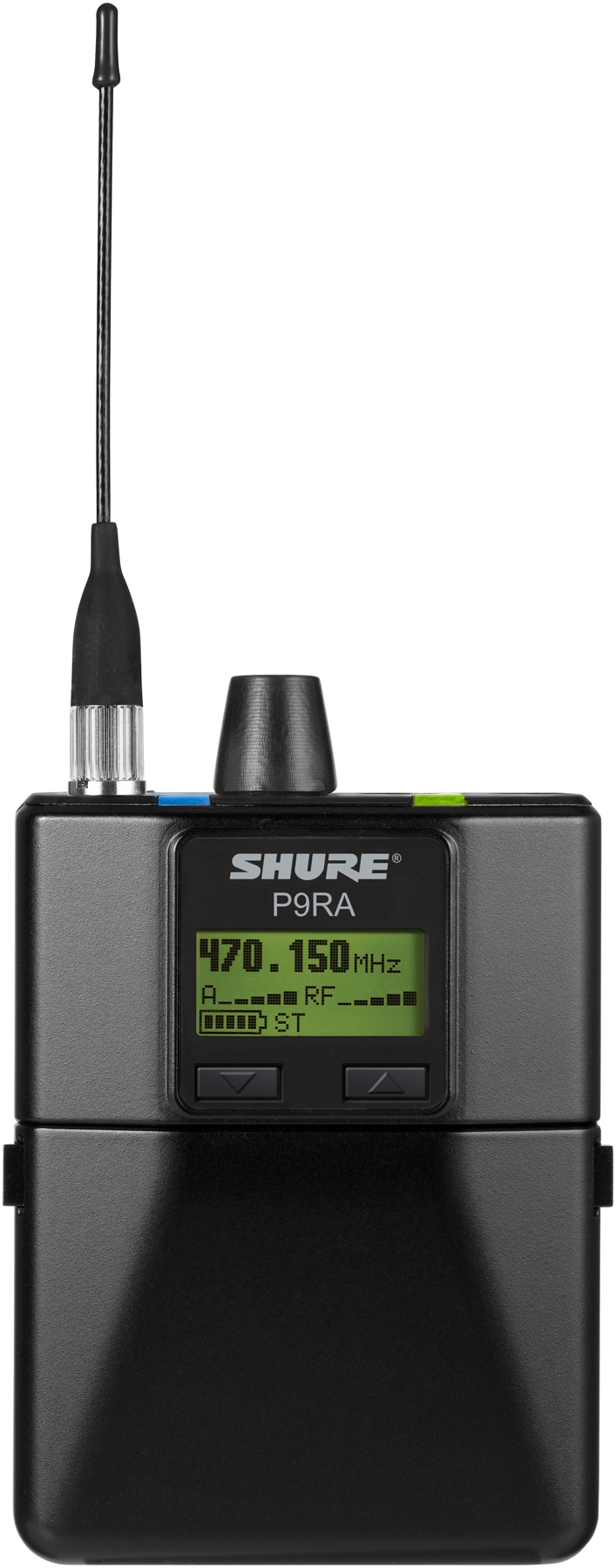

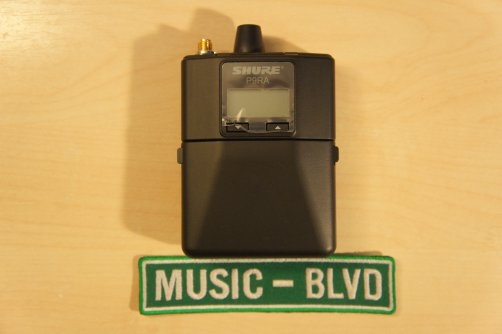

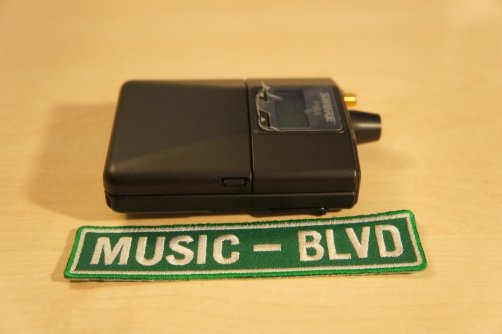

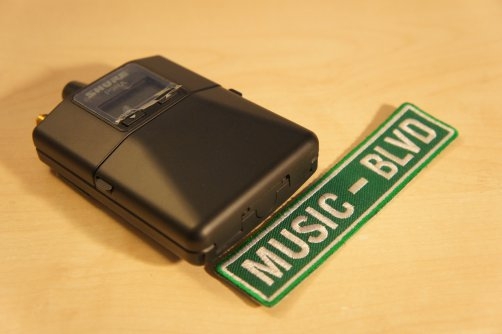

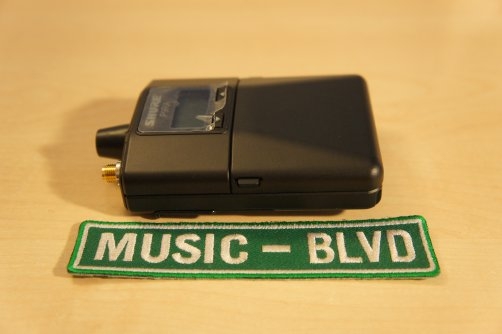

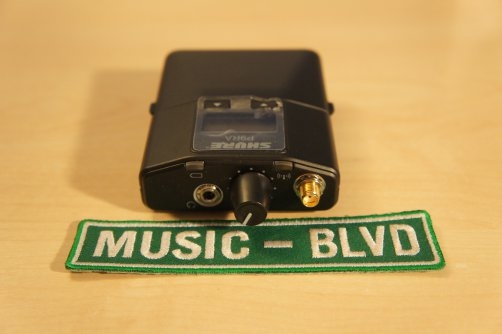

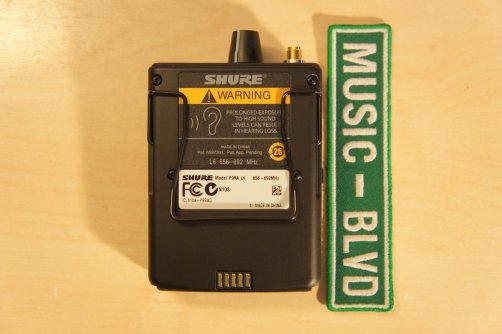

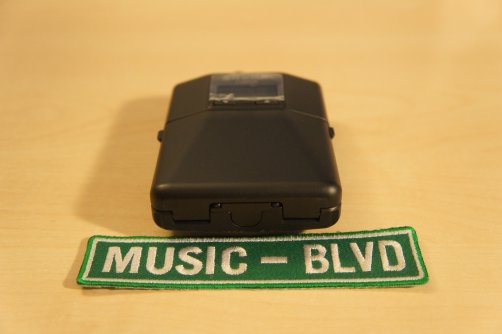

Shure P9RA Rechargeable Bodypack Receiver

ShureP9RA Rechargeable Bodypack Receiver
CHOOSE STYLE:

G6 Band, 470-506 MHz
G7 Band, 506-542 MHz
K1 Band, 596 - 632 MHz
L6 Band, 656 - 692MHz

OVERVIEW
Rechargeable in-ear receiver.

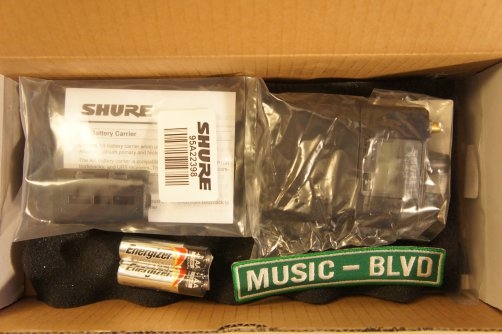

The P9RA is a compact, stereo bodypack receiver for use with the PSM900 Wireless Personal Monitor System. Bring your on-stage monitoring to a studio level. If you are a singer and have never worked with in-ears, you need to look into it. The P9RA offers premium features including RF Scan and Automatic Gain Control for unparalleled RF stability and channel availability, plus an advanced rechargeability option for extended usage times, all packed in the thinnest form factor available. Patent-pending CueMode allows monitoring of different stage mixes and storing of up to 20 separate channels from one bodypack for quick and easy reference. The P9RA is compatible with all Shure SE Sound Isolating Earphones, designed specifically for use with Shure PSM systems. Please note: the SBC200 charger, SBC800-US charger, and SB900 rechargeable battery are available separately.




FEATURES

Advanced rechargeability option provides up to 10 hours of continuous use, with precision tracking of battery life and charge cycle details
Ultra-thin, low profile bodypack allows discreet placement on the performer
Enhanced digital stereo encoder provides an expansive soundstage for excellent audio clarity and detail
With RF Scan, stand where the artist will be on stage and instantly check RF level
Automatic Gain Control greatly prevents signal dropout due to RF overload and allows more channels to be used simultaneously
Syncs to a P9T transmitter quickly and easily over IR link using Scan and Sync
Switchable 10/50/100 mW output power provides a robust RF link in a variety of performance environments
Separate, easily visible audio and RF status indicator LED's
Audio level and battery life metering
Selectable high-frequency EQ boost (+3/+6 dB @ 10 kHz)
Volume and balance controls
Extruded aluminum construction for rugged dependability




Order today and sing in better pitch tomorrow.


SPECIFICATIONS
P9RA Rechargeable Bodypack Receiver

Front-End RF Filtering: Dual Stage 3-Pole Chebyshev
Active RF Gain Control: Adjusts receiver RF sensitivity to provide 31dB more RF dynamic range
RF Sensitivity (20 dB SINAD): 2.2 μV at 20dB SINAD
Squelch Threshold: 20 dB ±3 dB SINAD
Adjacent Channel Rejection: >70 dB
Intermodulation Attenuation: >50 dB (referenced to 30 dB SINAD with -80 dBm on channel signal at 45 kHz deviation of a
1 kHz tone), > 70 dB for 12 dB SINAD
Blocking: >80 dB
Image Rejection: >90 dB typical
Audio Output Power
(1kHz @ <1% distortion, peak power, @32Ω): 100 mW
Minimum Load Impedance: 9.5 Ω
High Boost: Selectable: +2 dB, +4 dB @ 10 kHz
Volume Limiter: Selectable: 3-9
(Reduces maximum output level. Selected value corresponds to volume knob increment)
Battery Life: 4-6 hours (continuous use)
Net Weight: 7oz. with batteries
Dimensions: 3-7/8 x 2-5/8 x 9/10"
