Samson SZONE 4 Channel/4 Zone Stereo Mixer

TheSamson S-Zoneis a 4 zone stereo mixer designed for fixed installation in bars, restaurants, clubs, offices, schools and more. The mixer is designed with 4 inputs that are completely assignable to any of the 4 output zones. The result is an audio matrix, routing system that can isolate audio in specific areas within a venue. 2 balanced microphone and 4 balanced aux/line inputs are featured.

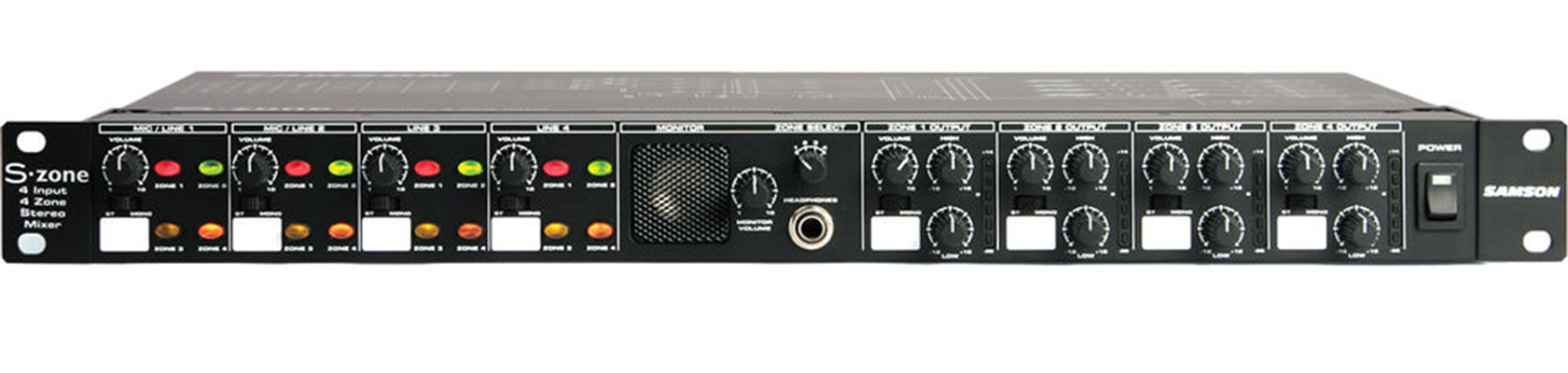

A ducking feature provides a "talk over" effect while paging or announcing over music. The front panel features a volume control for each input and output zone, high and low tone controls are provided for each output zone. A built-in monitor speaker and headphone output are featured for monitoring any of the output zones. A convenient single rack-space enclosure make the S-Zone an ideal solution for fitness clubs, houses of worship, retail stores, lounges, etc.


Multi Zone Isolation
The Samson S-Zone features 4 inputs and 4 output zones. Input channels 1 through 4 are assignable to any of the output zones, isolating audio in separate areas.


Built In Speaker Monitor
A built in speaker and headphone monitor output can be assigned to monitor any of the output zones.


Ducker Feature
A ducker is assigned to the microphone inputs and provides a "talk over" effect when paging or making announcements over music or program material.


Euroblock Connections

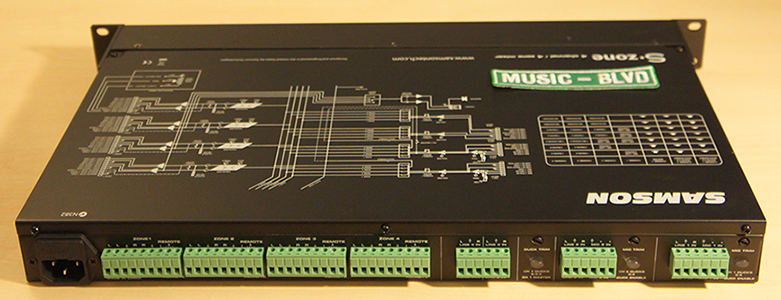

The rear panel connectors are Euroblock style for a trust worthy, solid connection to and from signal sources.


Specifications:



Total # Of Inputs
4 - Balancedvia Euroblock connector, see manual for wiring configuration


Mic/Line Inputs
2 - Mic / Stereo Inputsvia Euroblock connector, see manual for wiring configuration


Stereo Line Inputs
2 - Stereo Inputs RCA Typevia Euroblock connector, see manual for wiring configuration


In-Line Inputs/Returns
No


AUX Sends
No


AUX Returns
No


Inserts
No


BUS (Group) Outputs
4 - Balanced


2 Trk Master I/O
No


ALT I/O
No


Monitor Outputs
1/4" Phone - Headphone OutputInternal Speaker


EQ Section
Tone Controls: Low: +/- 15dB @ 100Hz High: +/- 15dB @ 10kHz


Solo/Mute
Zone 1 - 4 assignment controls


Channel Level Control
Rotary POTSZone Input and Output Controls


Trim/Gain Control
No


Phantom Power
+12 VDC


Metering
7 Segment Peak LEDs (Zone Outputs 1 through 4)


Frequency Response
not specified by manufacturer


Dynamic Range
not specified by manufacturer


Signal-to-Noise Ratio
96 dB


Total Harmonic Distortion (THD)
52 dB (Mic)


Power Supply
USA/Canada ~ 120V AC, 60HzFuse: 100-120V AC; 250 mA (slow-blow)Power Consumption: 5 WattsPower Inlet: Standard IEC Receptacle with Fuse


Dimensions
19 x 7.5 x 1.75" (482 x 190 x 44mm) (WxDxH)


Weight
5.1 lb. (2.31 kg)
