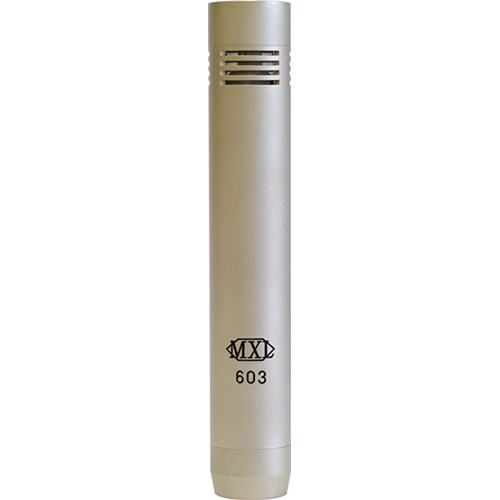

MXL 603 PAIR Small Diaphragm Cardioid Microphone (Stereo Pair)

The 603 PAIR from MXL is a stereo pair of microphones for instrument and vocal recording in project studios. The 603 features a wide-cardioid small diaphragm condenser element and wide, flat frequency response. It's transformer-less output stage provides greater signal-to-noise ratio and output signal. The wide-cardioid polar pattern excels in capturing instruments and vocals with minimal residual noise and feedback.

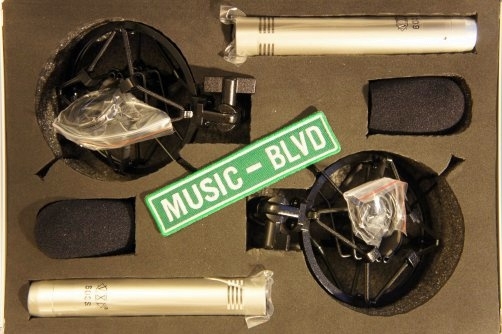

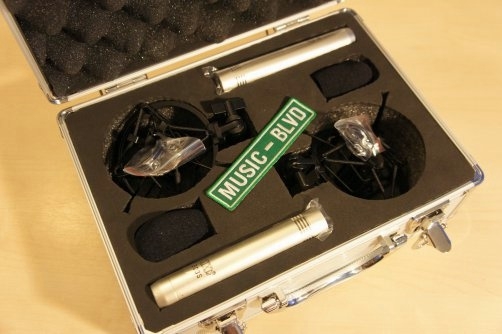

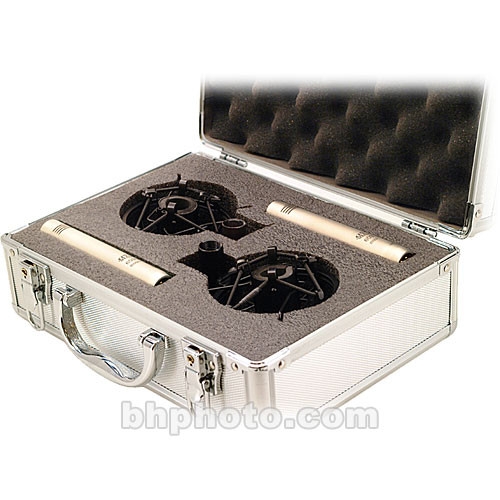

Stereo Pair
The stereo package provides a pair of 603 cardioid microphones for stereo recording of instruments such as percussion and piano.


Mogami Internal Wiring
MXL are internally wired with Mogami cable for a low noise floor and pristine fidelity throughout.






Operating Principle
Pressure Gradient


Transducer
Condenser


Diaphragm
0.87" (22 mm)


Polar Pattern
Cardioid


Frequency Range
30 Hz to 20 kHz


Signal to Noise Ratio
80 dB A-Weighted


Equivalent Noise Level
18 dB A-Weighted


Maximum SPL
134 dB SPL 0.5%


Impedance
200 ohms


Sensitivity
10 mV/PA


Power Requirements
48 V+/- 4 V


Operating Current Consumption
3mA






General


Length
5.31" (135 mm)


Diameter
0.87" (22 mm)


Weight
0.29 lb (130 g)






Packaging Info


Package Weight
3.6 lb


Box Dimensions (LxWxH)
11.7 x 9.4 x 4.7"
