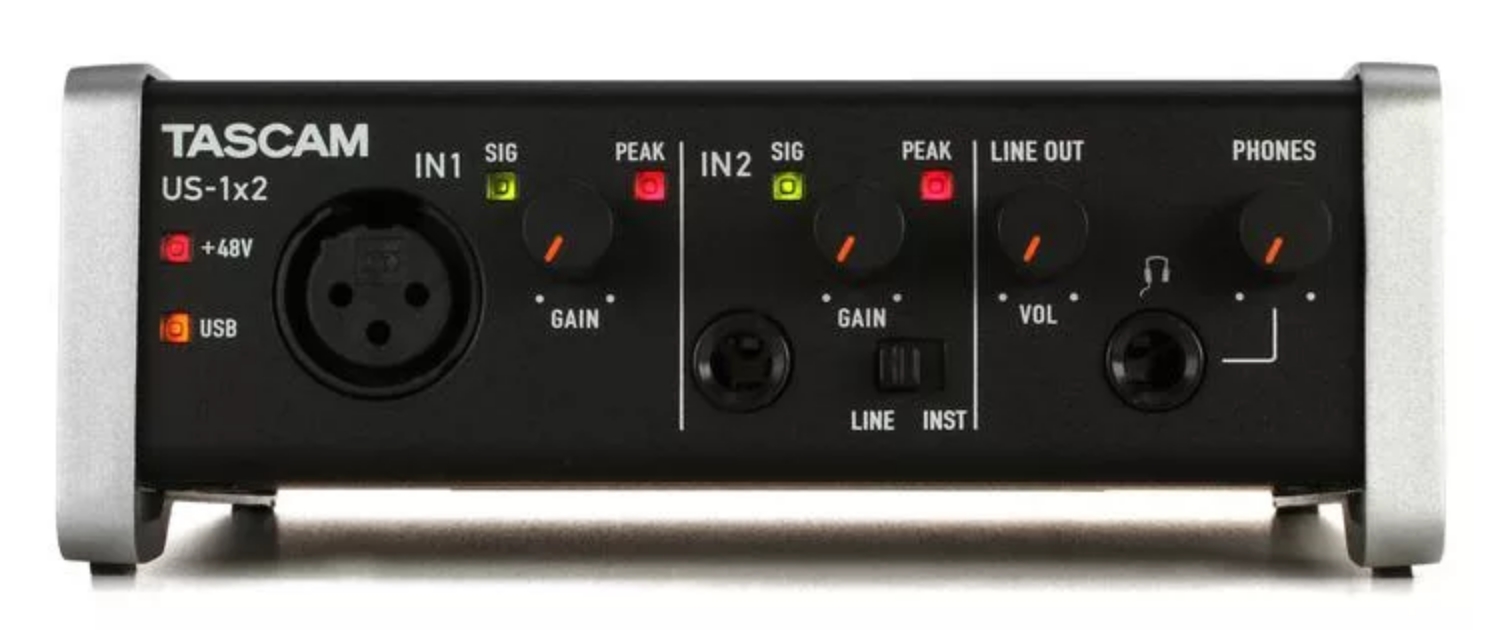

TASCAM US 1x2 USB Audio Interface

The Perfect Interface for Solo Performers
The US-1x2 puts TASCAM sound quality in a rugged, portable format, and is an ideal audio interface for solo performers. An HDDA high-gain mic preamp records up to 24-bit/96kHz into your DAW on Mac, PC, or iOS device. You also get a TRS input with a gain knob and signal and peak LED indicators, as well as stereo unbalanced RCA inputs. An impedance switch provides direct input of guitars and other instruments. No matter where you go with TASCAM's US-1x2, the direct monitoring functionality ensures zero-latency monitoring through the onboard headphone output.





HDDA mic preamp captures detailed nuances
The TASCAM US-1x2 employs a High Definition Discrete Architecture (HDDA) mic preamp design that delivers audio with extremely low self-noise to capture every detail of your musical performances. With one preamp, the US-1x2 is ideal for solo singer-songwriters. You also get a TRS jack, so you can easily track instruments, and an unbalanced RCA input for your consumer electronics. And there is a mic/line level switch on the front panel, so you can easily record a guitar or bass direct.




Built with mobile recording in mind
At Sweetwater, our Sales Engineers put together recording solutions that work for you, and one of the things today's engineers and musicians need most is the ability to record wherever they want. The tough all-metal housing and reinforced ends make the US-1x2 rugged enough to withstand hotel room recording sessions on the road. The sleek, angled design, keeps your levels in sight and offers easy access to gain and volume controls. It's small enough to fit in your laptop bag but powerful enough to trust with your next masterpiece.





iPad not included.

Includes DAW software options
The US-1x2 comes with Steinberg's Cubase LE, including Cubasis LE. A feature-rich recording software for Mac and PC, Cubase LE provides a cutting-edge music production studio, giving users what they need to get started creating music. Cubasis LE is a compact version of Cubase for your iPad, providing the same look as its bigger sibling.




TASCAM US-1x2 Features:

Rugged, sleek metal design for years of great-sounding mobile recording
1 HDDA microphone preamplifier with gain knob
1/4" jack has switchable impedance for recording guitar or bass
Stereo unbalanced RCA inputs for your consumer electronics
Up to 24-bit/96kHz operation provides superior studio-quality recordings
Headphone output with volume control provides zero-latency monitoring while you record
Stereo unbalanced RCA line outputs to feed your studio monitors or other sources
Power supply included
Includes a license for Cubase LE and Cubasis LE






Tech Specs

Computer Connectivity: USB 2.0
Form Factor: Desktop
Simultaneous I/O: 1 x 2
Number of Preamps: 1 x mic, 1 x instrument
Phantom Power: Yes
A/D Resolution: 24-bit/96kHz
Analog Inputs: 1 x XLR (mic), 1 x 1/4" (instrument), 1 x Dual RCA Stereo
Analog Outputs: 1 x Dual RCA Stereo
Headphones: 1 x 1/4"
USB: 1 x Type B 2.0, 1 x Micro-B
OS Requirements - Mac: OS X 10.10 or later, iOS 7 or later (Core Audio)
OS Requirements - PC: Windows 7 SP1 or later
Bus Powered: USB micro
Depth: 4.7"
Width: 5.7"
Height: 2.16"
Weight: 1.37 lbs.
Manufacturer Part Number: US-1x2
