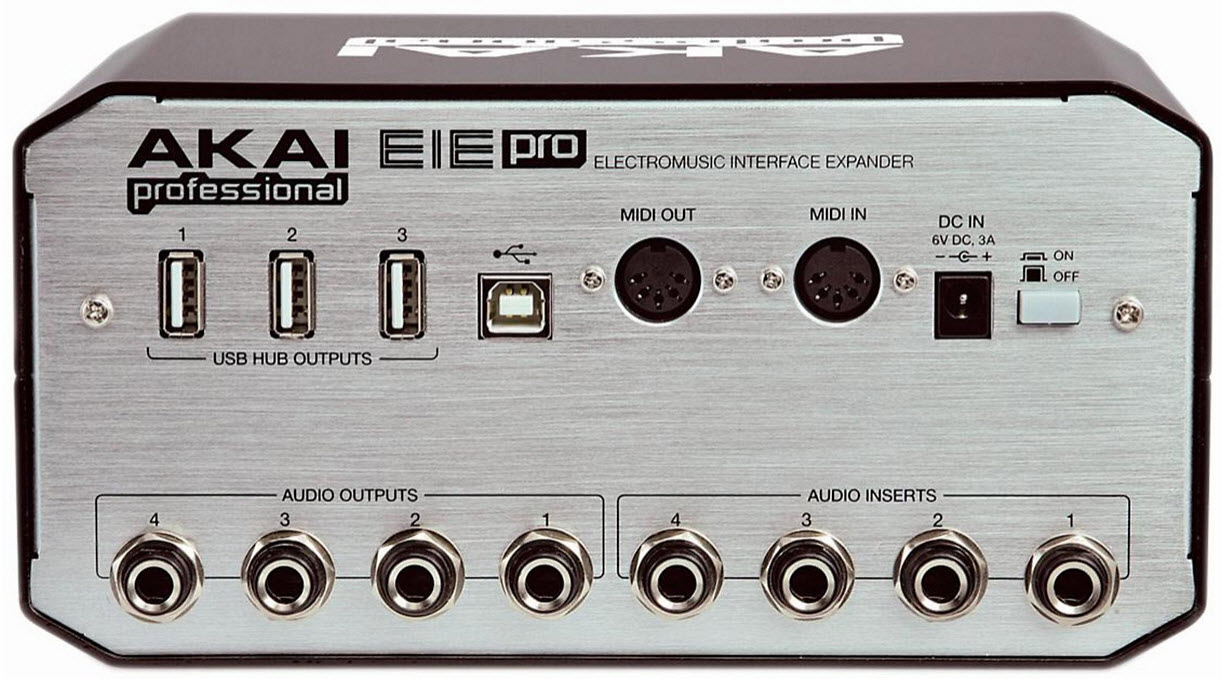

Akai Professional EIE PRO 24-bit Audio/MIDI Interface with USB Hub

Professional-quality, tabletop USB 2.0 audio interface with classic analog style VU meters.

The Akai EIE PRO (Electromusic Interface Expander) I/O is a tabletop USB audio interface perfectly tailored for your project and portable studio setups. This four-in, four-out (4x4) device enables you on Mac and PC-based systems to record at 24-bit audio resolution at sample rates of 44.1kHz, 48kHz, and 96kHz into virtually any DAW, recording or performance software. The EIE PRO I/O also houses three convenient USB inputs, in addition to its main USB port, enabling you to connect controllers, hard drives or any other peripheral when native ports on a computer may be limited. The compact recording interface contains high-quality components including nickel-plated input jacks, analog-style VU meters and a rugged aluminum casing for a powerful, professional, portable audio solution. Each channel of the EIE PRO I/O has an XLR/TRS combo jack, dedicated sturdy, gain-pots and Mic/Line/Guitar switches. The EIE PRO I/O features four discrete-design preamplifiers with 48V phantom power for use with virtually any microphone. Individual 1/4" Nickel-plated jacks found on the back of EIE PRO I/O provide you with channel inserts for processing audio signals externally. You can monitor sessions on multiple sets of studio monitors using the four 1/4" balanced outputs, which are also Nickel-plated. Both pairs of outputs can be monitored visually with the high-quality, analog VU meters providing classic features with modern style. For remote tracking and alternative playback, the EIE PRO I/O has a 1/4" TRS headphone output. High quality analog-to-digital and digital-to-analog converters ensure that every detail of your session or performance gets captured and played back faithfully. The EIE PRO I/O sends and receives four audio channels on a single USB cable for simple, universal interface to a computer. The three additional USB ports allow EIE PRO I/O to function as a hub as well, bridging other MIDI controllers and hard-drives to the computer. The USB interface is class compliant for plug-and-play operation with Mac OS X and Windows XP, Vista and 7. The EIE PRO I/O features traditional MIDI In and Out jacks for playing and controlling software with keyboard and pad controllers, workstations, and other MIDI-compatible instruments.


Features

USB audio interface with up to 24-bit recording resolution supporting all standard sample rates (44.1kHz/48kHz/88.2kHz/96kHz)
Four XLR-1/4" combo jacks with phantom power and gain control
Four nickel-plated 1/4" outputs for two separate monitoring systems
Two classic, high-quality VU level meters with switchable sources
Three additional USB ports for connecting other devices through to a computer
Four 1/4" channel inserts for processing audio signals externally
5 Pin DIN MIDI Interface
Headphone output with switchable source and direct monitoring dial
Tabletop, solid construction with a great-looking, classic design
Includes power cable, quick start guide



A quality recording starts with proper signals. Insert the Akai EIE PRO into your signal-path today.


USB AUDIO INTERFACE
Sampling Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
Resolution: 24-bit
Interface: USB 2.0
ANALOG INPUTS
Frequency Response: 20Hz to 21kHz (+/-0.05dB)
Dynamic Range (@-60dB input): 96dB, A-weighted
S/N: 96dB, A-weighted
THD+N: 0.001% @ 1kHz / -0.1dBFS
Crosstalk: 93dB @ 1kHz / -0.1dBFS
Pre-amp THD+N: 0.018%
Mic gain (MIC): +9dB to + 51.5dB
Mic impedance: 6.3KΩ
Line gain: -10.5dB to +41dB
Line impedance: 55KΩ
Guitar gain: +1.6dB to 53.1dB
Guitar impedance: 102KΩ
Input sensitivity: 0dBFS @ +6dBV
Input impedance: 10KΩ
ANALOG OUTPUTS
Output level: +6dBV @ 0dBFS
Frequency Response: 20Hz to 20kHz (+/-0.25dB)
Dynamic Range (@-60dB input): 98dB, A-weighted
S/N: -100dB, A-weighted
THD+N: 0.006% @ 1kHz/0dBFS
Crosstalk: 97dB @ 1kHz/0dBFS
HEADPHONES
32-Ohm Load
Unclipped output power: 10mW @ 1kHz
Frequency Response: 20Hz to 20kHz (+0.25dB)
S/N: -100dB, A-weighted
THD+N: 0.007% @ 1kHz / 0dBFS
Crosstalk: 95dB @ 1kHz / 0dBFS
600-Ohm Load
Unclipped output power: 3.4 mW @ 1kHz
Frequency Response: 20Hz to 20kHz (+0.25dB)
S/N: -100dB, A-weighted
THD+N: 0.003% @ 1kHz / 0dBFS
Crosstalk: 95dB @ 1kHz / 0dBFS
