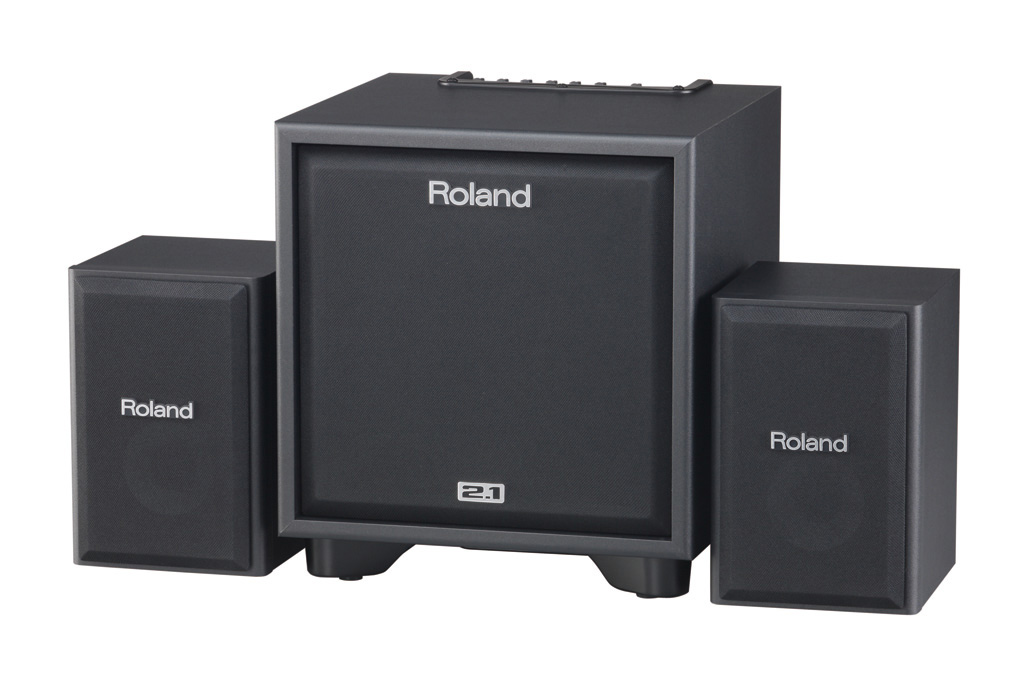

Roland CM-110 2.1 CUBE Monitor System

A New Dimension





The CM-110 consists of a main unit (subwoofer) and two satellite speakers. The flexible input types let you connect a wide variety of analog and digital gear, including electronic instruments, audio-playback gear, even computers. The rich, deep sound also makes this system ideal for home-entertainment listening. The CM-110 provides 100 W of total output power. Fill your home or personal studio with powerful sound and enjoy music in the proper full-range format for which it was created.

Protective Circuitry

The CM-110 features high-performance speakers with protection circuits to tame wide dynamic ranges and/or continuous high levels from instruments such as synthesizers, V-Drums, etc. In other words, the CUBE is built to withstand an arsenal of hot gear and input levels. And, in an environmentally friendly touch, the system offers Auto-Off switches that prevent unnecessary power consumption after several hours of inactivity.

Hands-On Control




Each of the three input channels has a dedicated volume knob, with a Master volume knob to control all three simultaneously. A Phase switch instantly changes the phase of the sound being output from the subwoofer, helping find its ideal placement. The two EQ knobs adjust the volumes of the lower and upper ranges, while the Woofer knob adjusts the output volume of the subwoofer.


Rated Power Output
100 W (Main Unit 50 W + Satellite Speaker 25 W x 2)
Nominal Input Level (1 kHz)


CH 1 (INSTRUMENT): -20 dBu
CH 2 (LINE): -10 dBu
BALANCED INPUT: +4 dBu


Input Impedance


CH 1 (INSTRUMENT): 10 k ohms
CH 2 (LINE): 10 k ohms
BALANCED INPUT: 10 k ohms


Digital Input (CH 3)


Format: Conformity with IEC60958
Sample Rate: 32 kHz to 192 kHz (automatically) (de-emphasis: OFF)
Word Length: 24 bits


Speakers


Main Unit: 16 cm (6.5 inches)
Satellite Speaker: 10 cm (4 inches), 2 cm (3/4 inch) (for each)


Controls


CH 1 [INSTRUMENT] volume knob
CH 2 [LINE] volume knob
CH 3 [DIGITAL] volume knob
WOOFER volume knob
PHASE switch
EQUALIZER [HIGH] knob, [LOW] knob
MASTER volume knob
AUTO OFF switch


Connectors


CH 1 [INSTRUMENT] jacks (L/MONO, R): 1/4-inch phone type
CH 2 [LINE] jacks (L, R, STEREO): RCA phono type, stereo miniature phone type
CH 3 [DIGITAL] jack: coaxial type
BALANCED INPUT jacks (L, R): (XLR, 1/4”TRS phone type)
PHONES jack: Stereo miniature phone type
SATELLITE SPEAKER jacks (L, R): (only for dedicated Satellite Speakers)
AC IN jack


Power Consumption 47 W
Accessories
Power Cord, Speaker Cable (3.5 m) x 2, Owner’s Manual
Option (sold separately)
Monitor Speaker Stand: ST-CMS1

Size and Weight Main Unit

Width (W) 330 mm13 inches
Depth (D) 327 mm12-7/8 inches
Height (H) 368 mm14-1/2 inches
Weight 13.3 kg29 lbs. 6 oz.

Size and Weight Satellite Speaker, for each

Width (W) 162 mm6-7/16 inches
Depth (D) 197 mm7-13/16 inches
Height (H) 243 mm9-5/8 inches
Weight 3.1 kg6 lbs. 14 oz.
