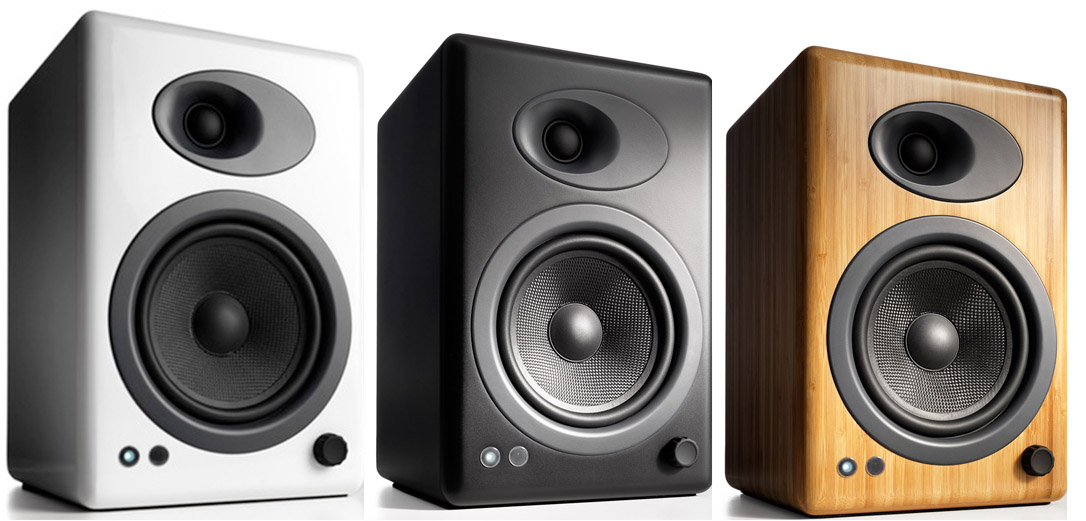

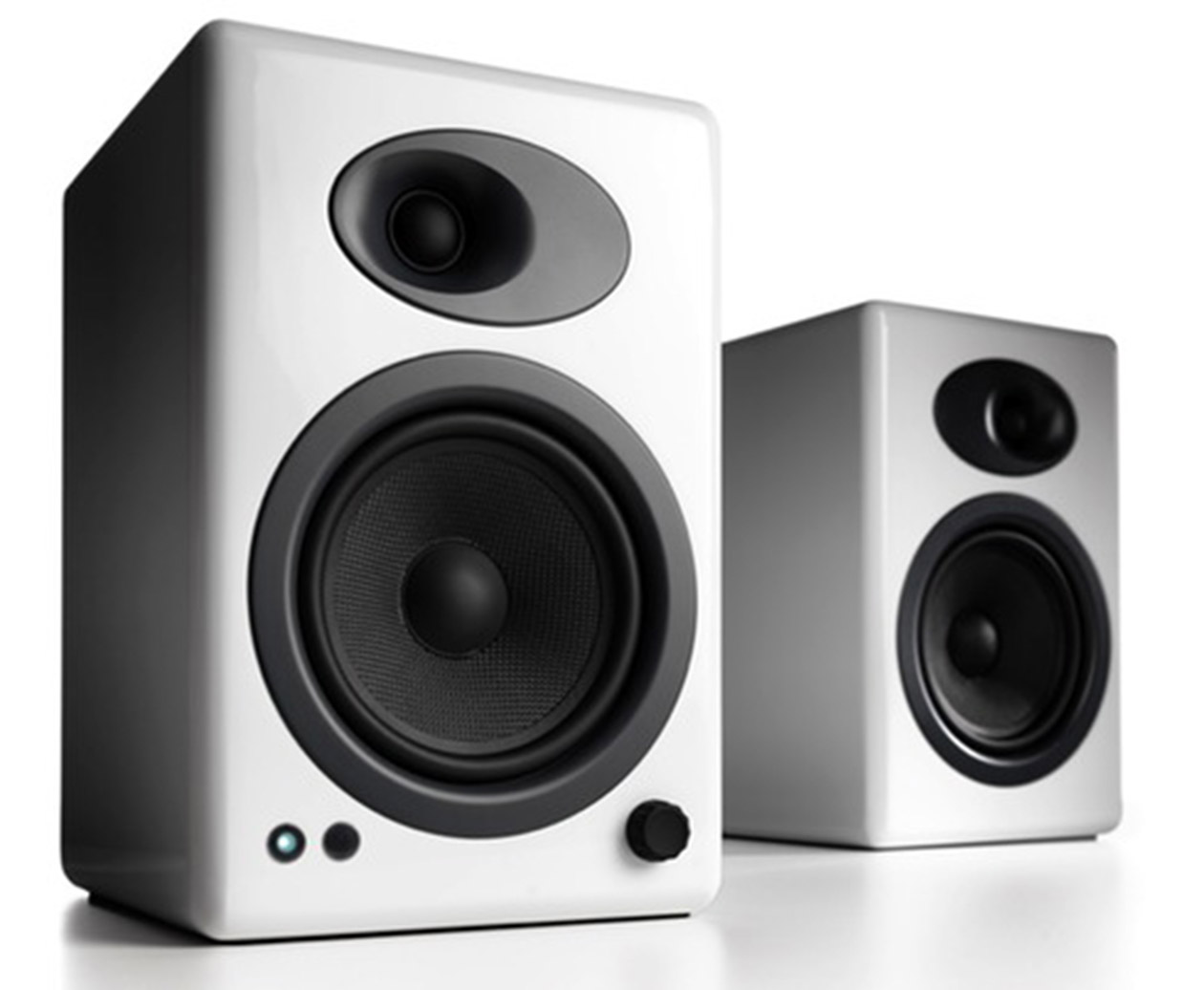

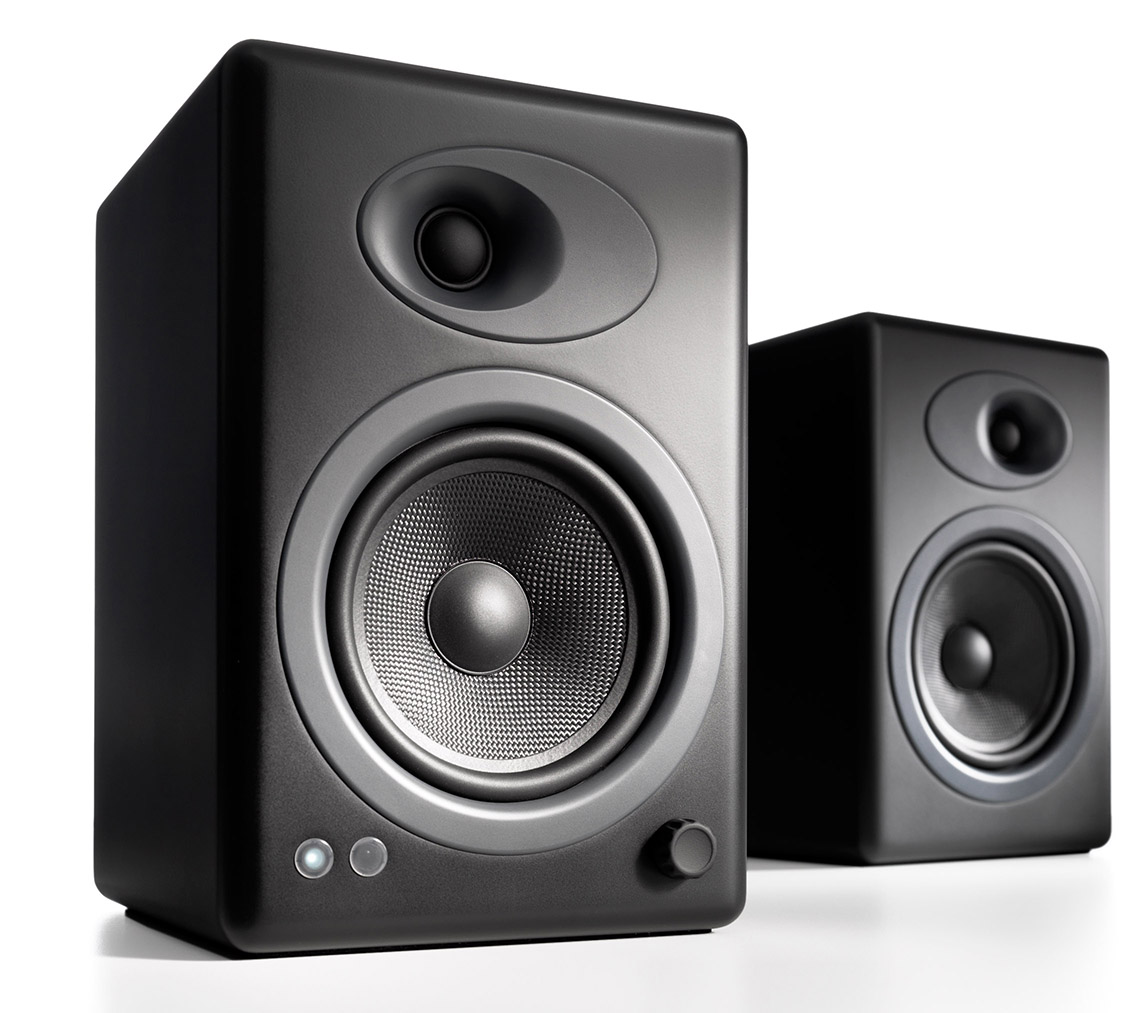

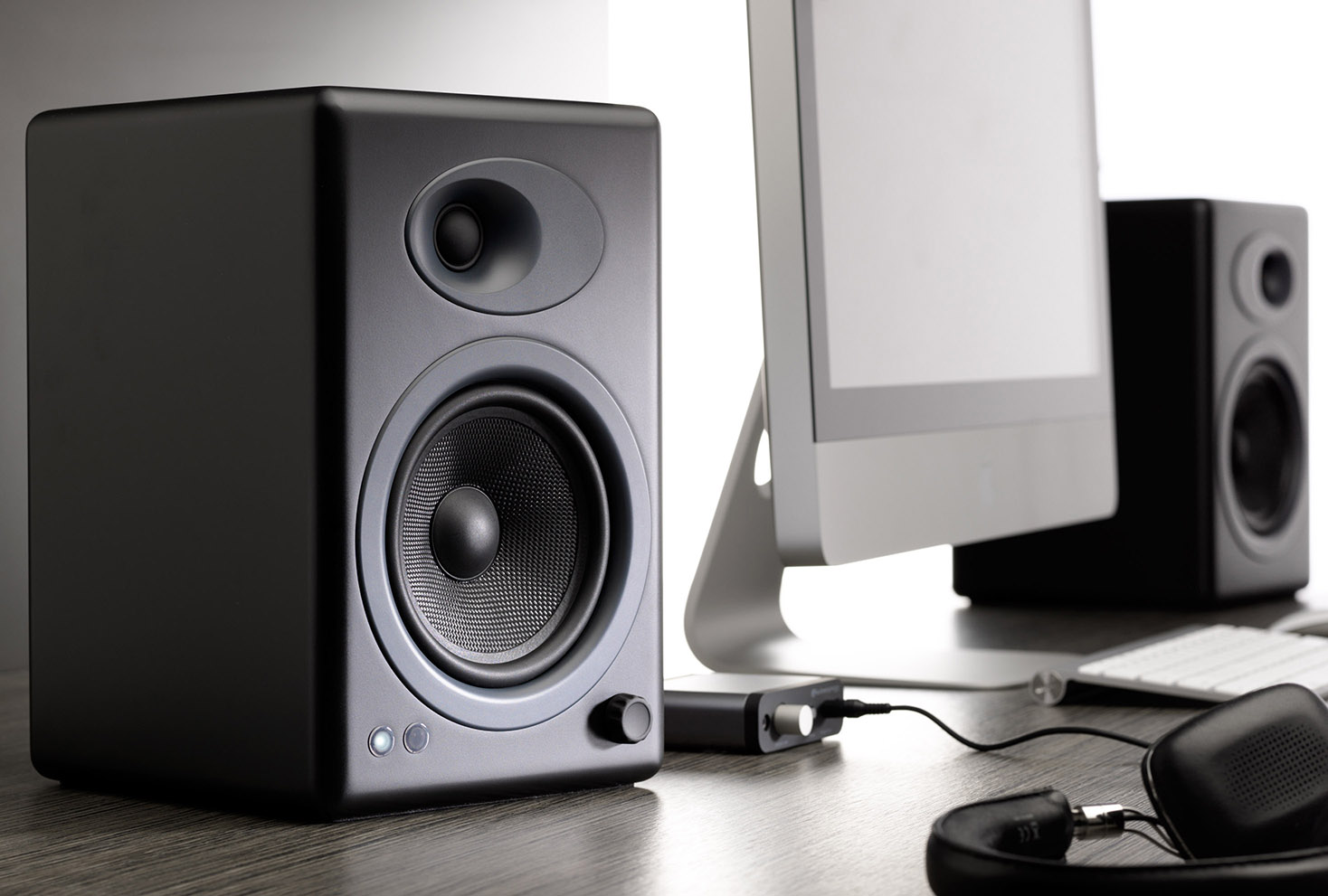

Audioengine A5+ Powered Speaker Systems

The A5+ 5" Active 2-Way Speakers from Audioengine provide high-quality audio in a compact and stylish design, ideal for use with a variety of audio sources and devices. The system consists of an active left speaker and a passive right speaker, which are connected together via full-size gold-plated 5-way binding posts. Each speaker has a hand-built cabinet made from 0.75" thick MDF wood. Each cabinet contains a custom 5" Kevlar woofer and a 0.8" silk tweeter to provide clear, detailed audio with a wide frequency response and excellent realism. The cabinets have rear-facing bass ports to extend low frequency response and tweeter waveguides to provide a wide dispersion pattern and realistic stereo imaging. The left speaker has internal Class-AB amplifiers that provide a combined system power of 150W to deliver a strong performance with low distortion. The rear panel offers 3.5mm and RCA inputs, allowing you to connect computers, MP3 players, smartphones, and any other product with 3.5mm or RCA outputs. The speakers are also compatible with Audioengine wireless audio adapters, and Apple's Airport Express and AirPlay. The active speaker also has a stereo RCA output so you can connect an additional device, such as a subwoofer. A USB power/charging output allows you to charge small devices such as MP3 players or mobile phones while you listen to music. A convenient front-panel volume control lets you make quick adjustments. Protection circuitry includes output current limiting, thermal over-temperature, power on/off transient protection, and a replaceable external main fuse for lasting reliability. The speakers are also magnetically shielded for safe use near video monitors and other electronics. The bottom of each speaker has a high-density isolation pad to reduce vibrations and reflections when used on a table or desk. There are also 1/4"-20 inserts so you can mount the speakers on stands. The system has a selectable operating voltage for international use. A convenient remote control is included for controlling the speakers. You are also provided with connection cables and carrying bags for quick and easy setup.



Compact and Affordable

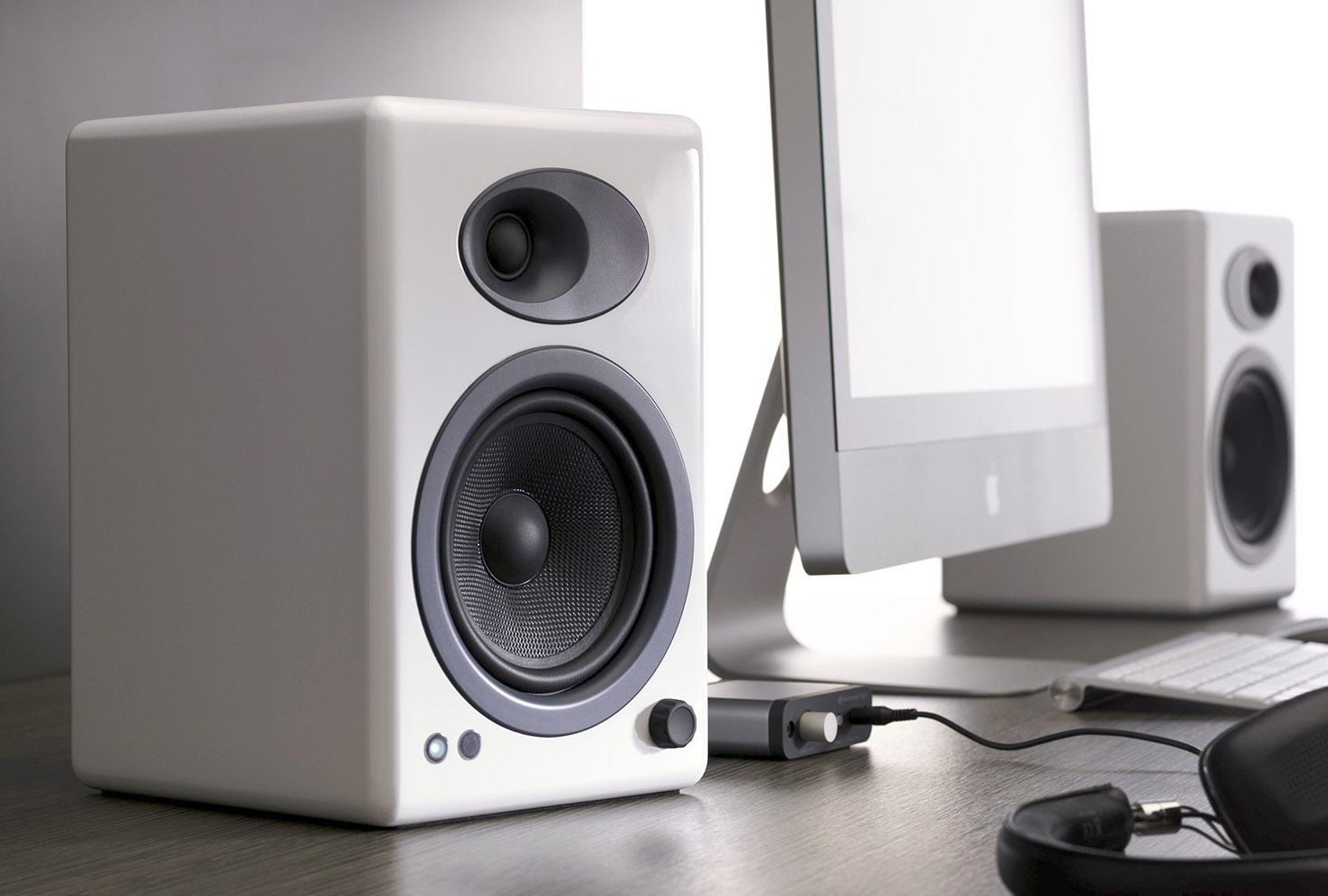

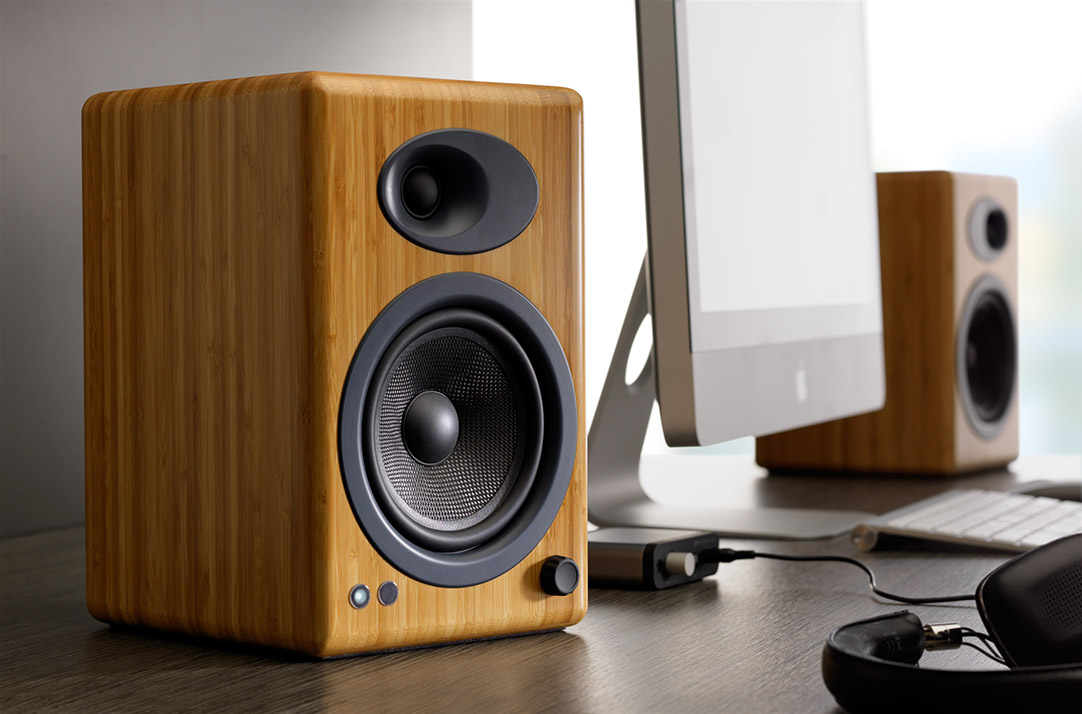

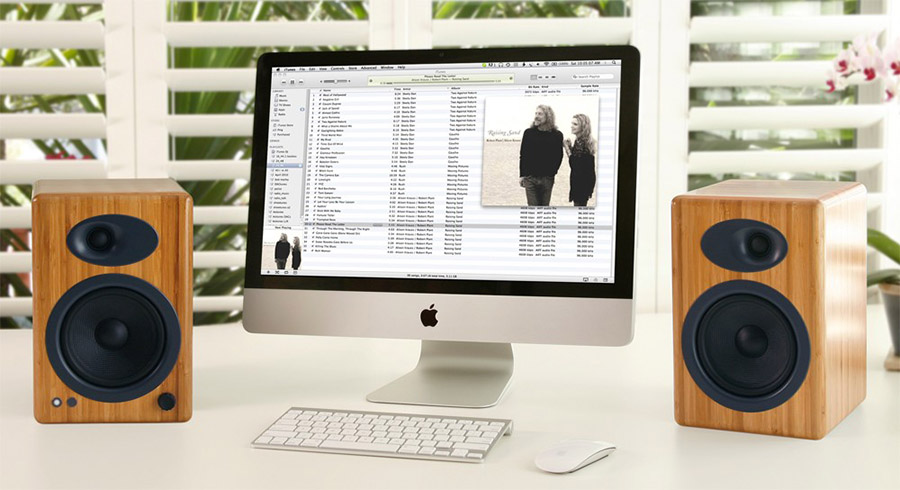

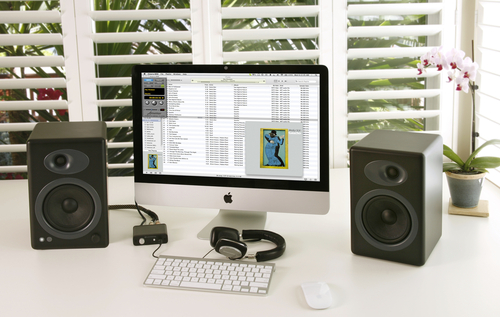

The compact design is ideal for use in bedrooms, offices, dorm rooms, and any other spaces where high-quality audio is desired in a compact design


Easy Setup
Simply connect the active left speaker to the passive right speaker using the included cable, plug the active speaker into the wall, connect your audio source, and you're ready to go! The speakers have full-size gold-plated 5-way binding posts for a high-quality connection and signal path

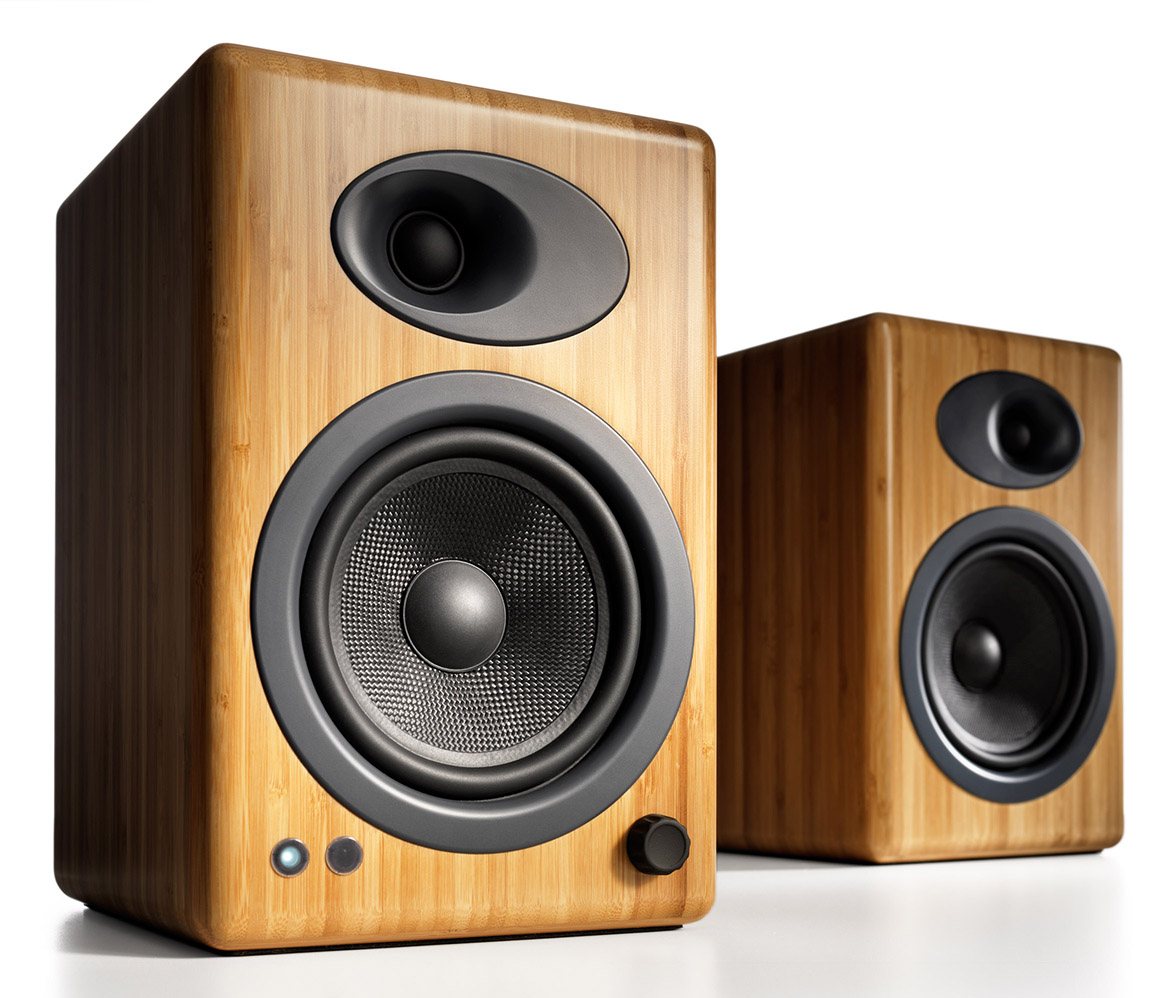

Hand-Built Cabinets
Each cabinet is hand-built from 0.75" thick MDF wood. Each component is custom-designed and tuned together for a high level of efficiency and audio performance


Custom Drivers
Each cabinet contains a custom 5" Kevlar woofer and a 0.8" silk tweeter to provide clear, detailed audio with a wide frequency response and excellent realism. The strong materials and neodymium magnets are robust and efficient to retain their shape, even when being driven at high volume levels


Bass Ports and Waveguides
The cabinets have rear-facing bass ports to extend low frequency response and tweeter waveguides to provide a wide dispersion pattern and realistic stereo imaging


Class-AB Amplifiers
The left speaker has internal Class-AB monolithic amplifiers with gapless core toroidal transformers that provide a combined system power of 150W to deliver a strong performance with low distortion

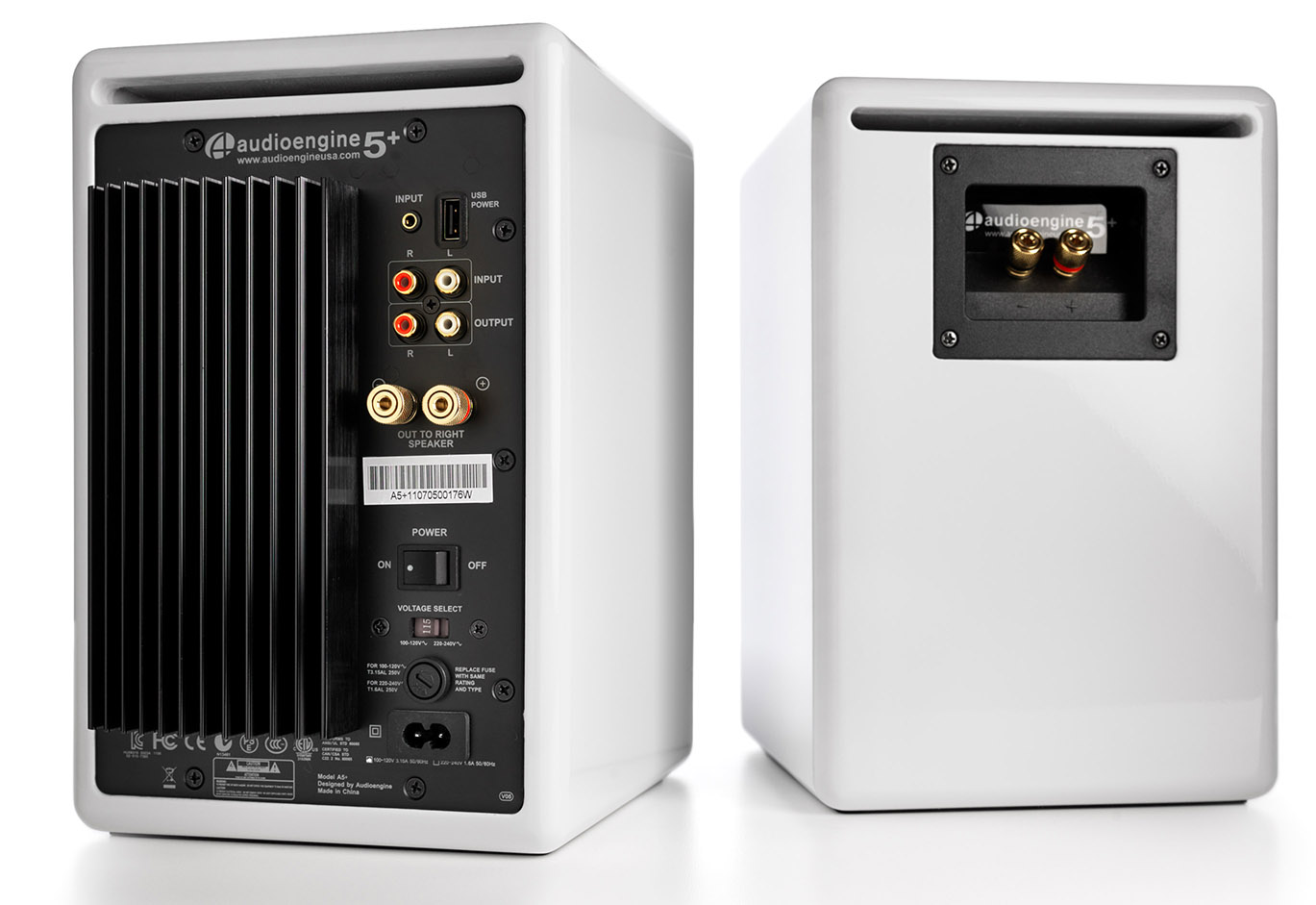

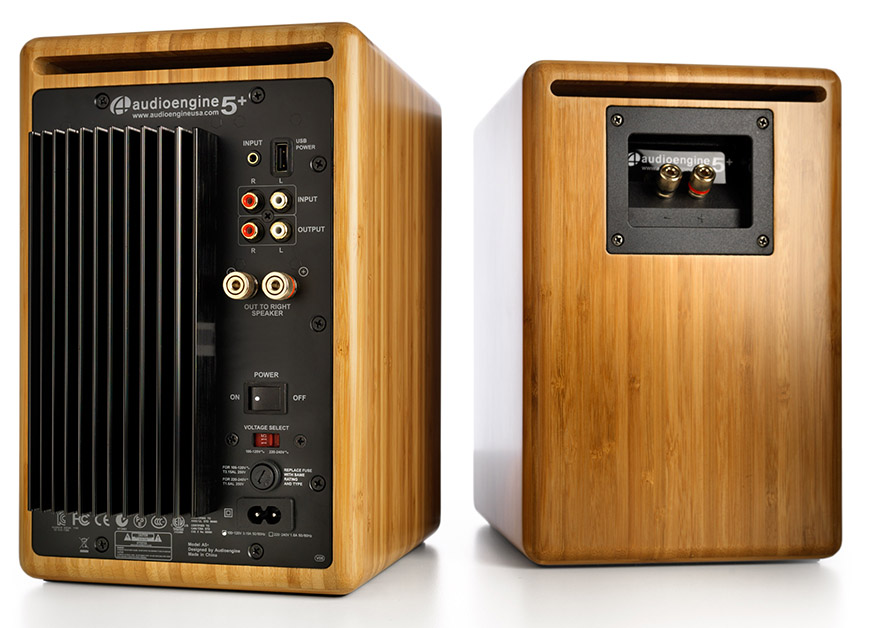

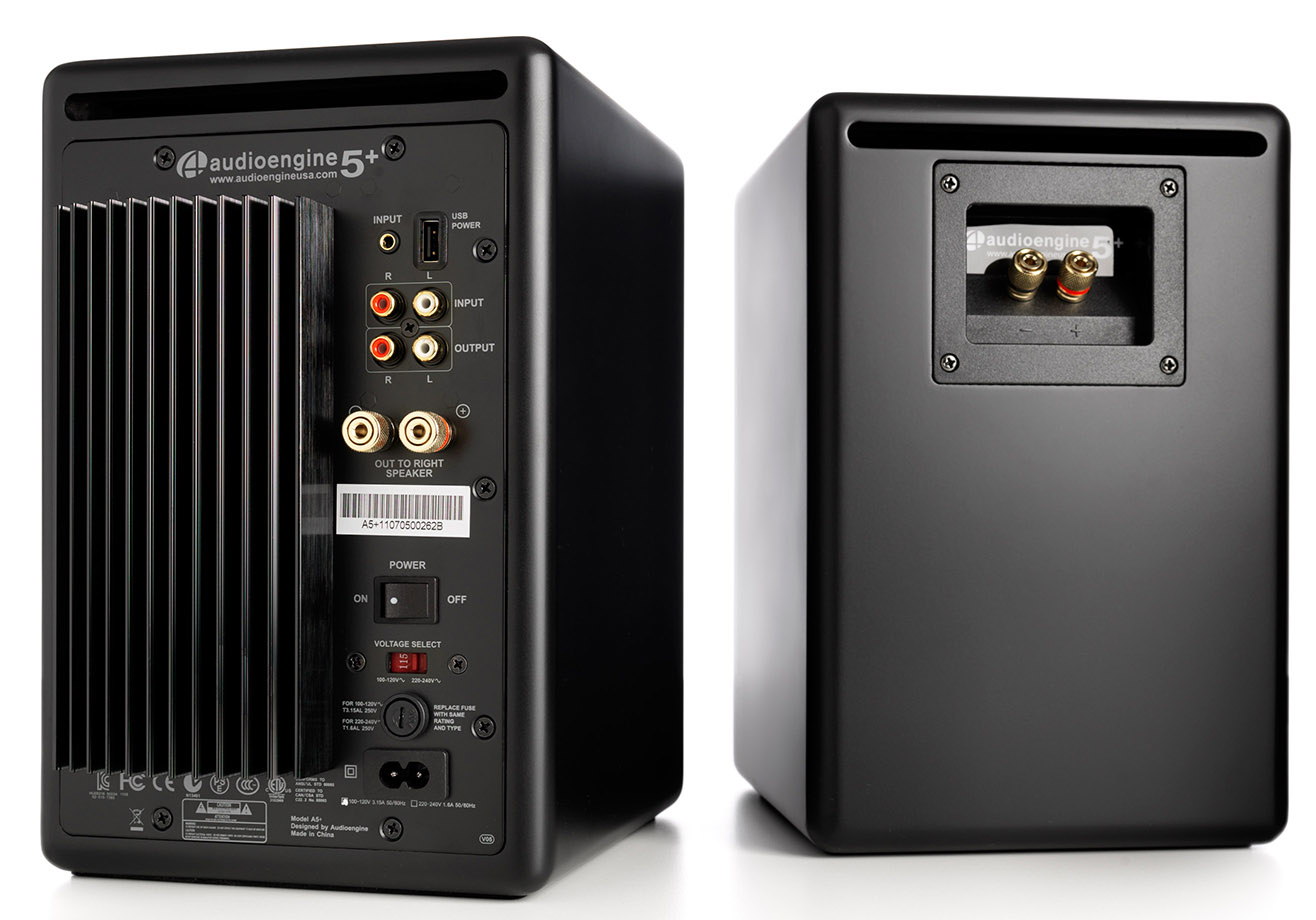

RCA and 3.5mm Inputs
The rear panel offers 3.5mm and RCA inputs, allowing you to connect computers, MP3 players, smartphones, and any other product with 3.5mm or RCA outputs. The speakers are also compatible with Audioengine wireless audio adapters, and Apple's Airport Express and AirPlay


RCA Output
The active speaker has a variable preamp stereo RCA output so you can connect an additional device, such as a subwoofer


USB Charging Port
An internal 5V, 500mA USB power supply allows you to charge small devices such as MP3 players or mobile phones while you listen to music. The USB port does not support data transfer or music syncing


Volume Control
A convenient front-panel volume control lets you make quick adjustments


Thermal Management and Protection
Protection circuitry includes output current limiting, thermal over-temperature, power on/off transient protection, and a replaceable external main fuse for lasting reliability


Shielded
The speakers are magnetically shielded for safe use near video monitors and other electronics


Isolation Pads
The bottom of each speaker has a high-density isolation pad to reduce vibrations and reflections when used on a table or desk


Stand Mounting
Each cabinet has a 1/4"-20 insert so you can mount the speakers on stands


International Operation
The system has a selectable operating voltage for international use

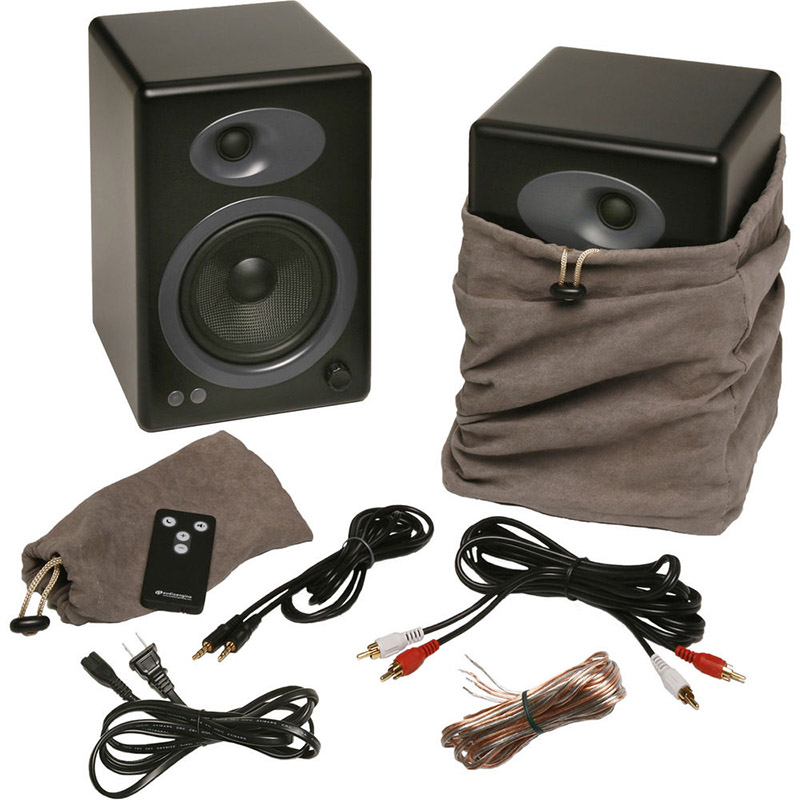

Remote and Accessories


A convenient remote control is included for controlling the speakers. You are also provided with connection cables and carrying bags for quick and easy setup



Specifications



Type
2.0 Active Bookshelf-Style 2-Way Stereo Speaker System


Amplifier
Dual Class-AB Monolithic with Gapless Core Toroidal Transformers


Power Output
150W Peak Power Total, 50W RMS/75W Peak Per Channel, AES


Frequency Response
50Hz - 22kHz ±1.5dB


Signal to Noise Ratio
> 95dB (Typical A-Weighted)


Total Harmonic Distortion (THD)
< 0.05% at all Power Settings


Crosstalk
< 50dB


Input Impedance
10 kOhms, Unbalanced


Woofer
5" (127mm) Kevlar Woven Glass Aramid Composite Woofer with Rubber Surround and Advanced Voice Coil


Tweeter
0.8" (20mm) Silk Dome Tweeter with Neodymium Magnet


Connectors
Left Speaker: 1 x AC Power Input 1 x 3.5mm Stereo Mini Input 1 x Stereo RCA Input (2 Jacks, L/R) 1 x Variable Stereo RCA Output (2 Jacks, L/R, Adjustable Full-Range) 1 x USB Type A Power/Charging Port 1 x 5-Way Binding Post Output to Right Speaker (2 Posts) Right Speaker: 1 x 5-Way Binding Post Input from Left Speaker (2 Posts)


Construction
0.75" (19mm) Thick MDF Wood with Black Finish


Protection
Output Current Limiting, Thermal Over-Temperature, Power On/Off Transient Protection, Replaceable External Main Fuse


Operating Voltage
115/240VAC, 50/60Hz Selectable


Power Consumption
Idle: 10W Mute: 6W Sleep: 4W


Environmental
Operating Temp: 32 to 95°F (0 to 35°C) Storage Temp: -4 to 113°F (-20 to 45°C) Relative Humidity: 5 to 95%, Non-Condensing

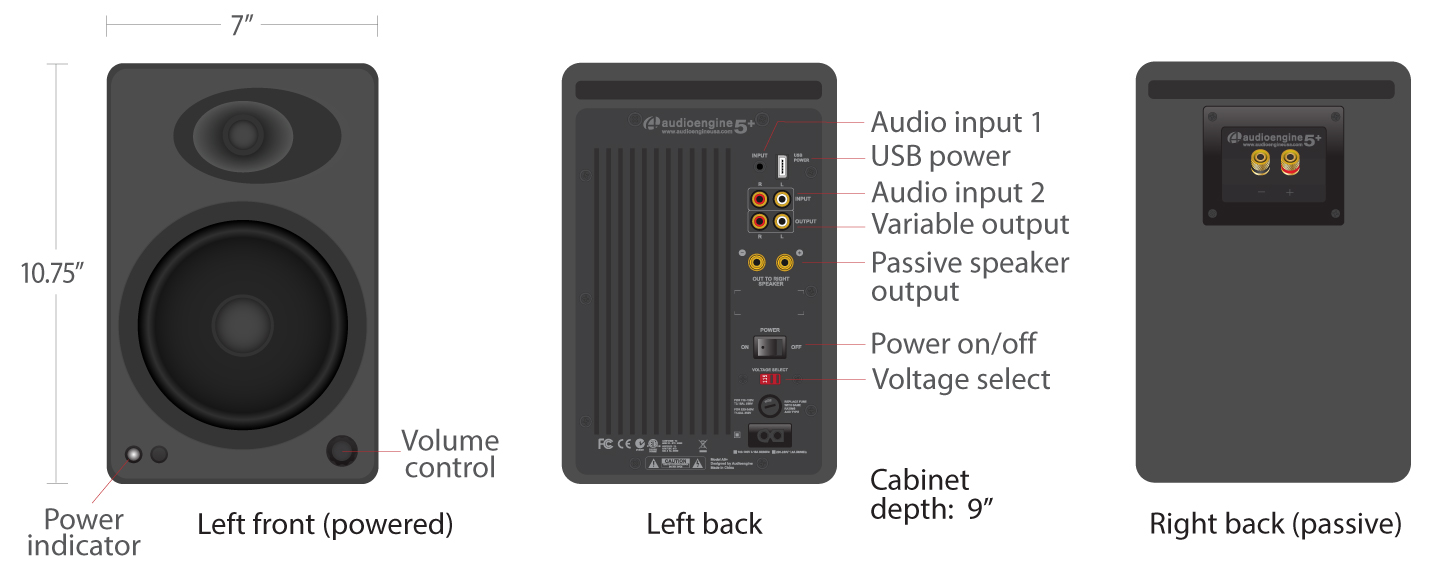

Dimensions (HxWxD)
10.75 x 7 x 7.75" (273 x 178 x 197mm) (Each Speaker)


Weight
Left Speaker: 15.4 lbs (7kg) Right Speaker: 9.6 lbs (4.4kg)
