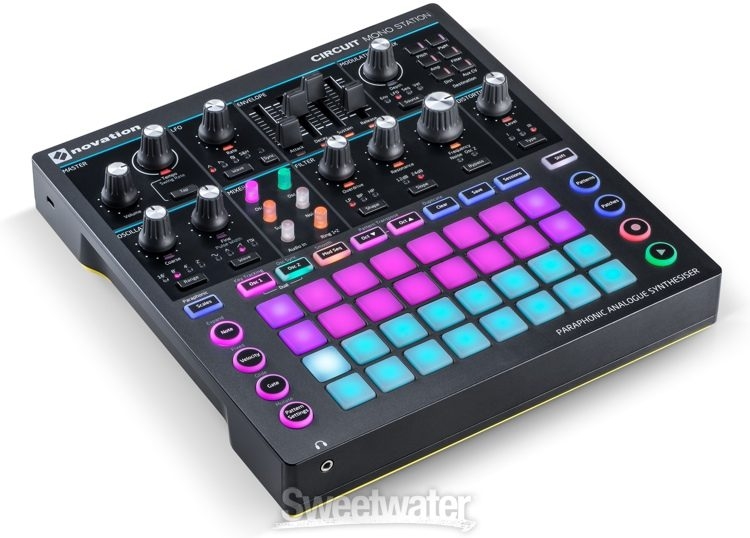

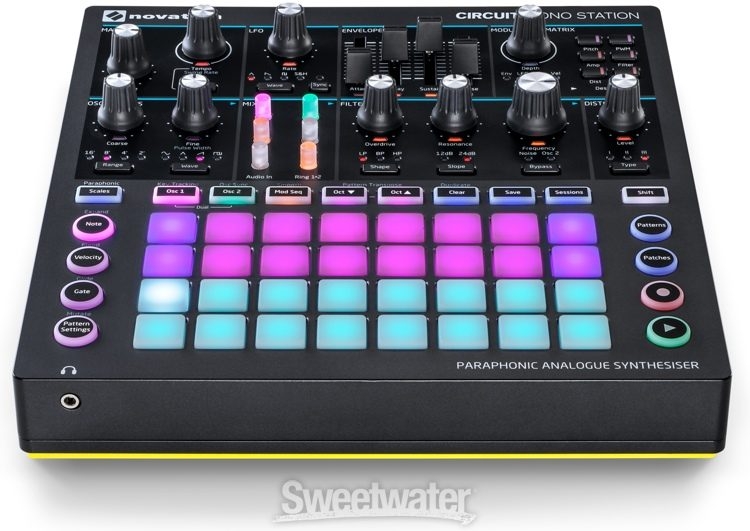

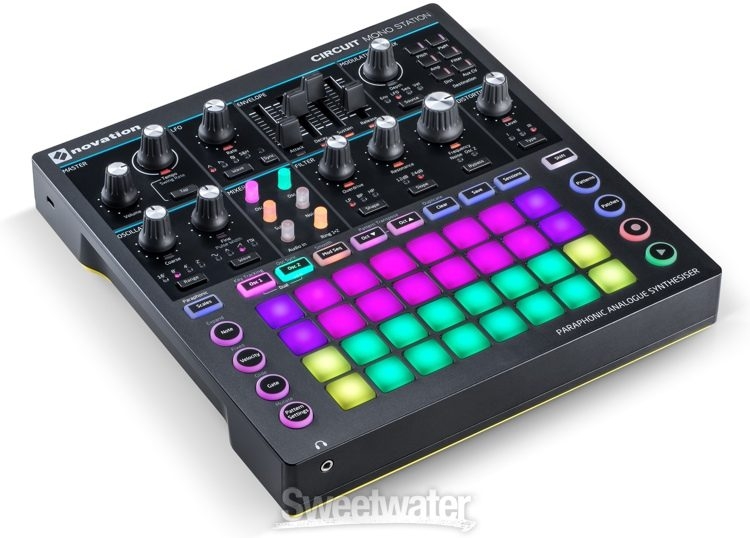

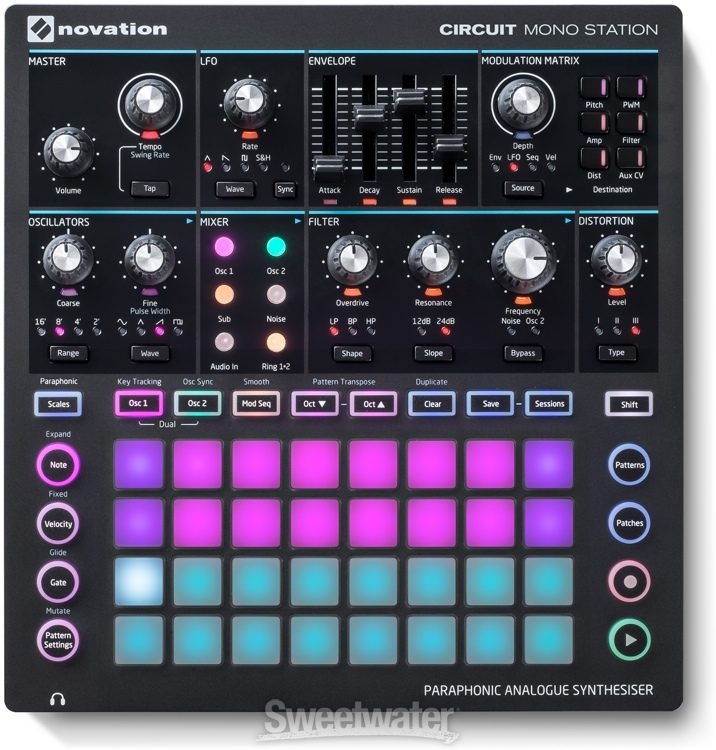

Novation Circuit Mono Station Paraphonic Analog Synthesizer and Sequencer

Bass Station Power in a Groovebox
With a pedigree running back to the legendary Bass Station, Novation's Circuit Mono Station combines time-tested analog synthesis with the flexibility of a cutting-edge groovebox. Brilliantly straightforward hands-on controls make sculpting monophonic and paraphonic tones fast and easy, and there are dedicated controls for every function, plus a 4-source/8-destination modulation matrix. A matrix of 32 velocity-sensitive pads offers full access to three onboard sequencers, which cover both oscillators and modulation options. On top of that, the Circuit Mono Station offers extensive MIDI and analog control connectivity, making an ideal hub for your hardware synth rig.




Get your hands on analog paraphonic synthesis
One of the best things about analog synthesizers is that you can simply reach out and grab controls and quickly dial in the sound you want, and that's even more true for the digitally controlled analog synthesis onboard the Novation Circuit Mono Station. Sure, you can load and save up to 64 patches on it, but creating new sounds is also super easy. Dial in a pair of oscillators and shape the results with the multimode filter section, which includes highpass, lowpass, and bandpass modes at 12dB or 24dB per octave. After that, it's just a matter of combining your LFO and envelope generator with the 4 x 8 modulation matrix, and you can produce delightfully sophisticated sounds. To top it off, three rich distortion types and filter overdrive make it easy to add texture and grit to your tone.






Perfect pads for performance and sequencing
Loaded with 32 multifunction, velocity-sensitive pads, the Circuit Mono Station more than rivals the functionality of many dedicated pad controllers. While the flexibility of these controls extends well into DAW control, that's nothing compared to what they do for the Circuit Mono Station's onboard functions. For starters, there are 16 scale types, which let you explore melodic structures and progression you might not otherwise come up with. Three sequencers include one for either oscillator and another dedicated to modulation, further expanding your sound-shaping possibilities, and with changeable sync rates, you can get an awful lot of mileage out of every step.




Connect to your DAW or favorite synth hardware
These days, it's easier than ever to get invested in tabletop gear and modular synth rigs. Many of us here at Sweetwater are always on the lookout for great ways to integrate our hardware with our favorite DAWs, which is why we love what Novation accomplished with their Circuit Mono Station. Fully loaded with USB connectivity, MIDI I/O plus analog CV, gate, and modulation outputs, the Circuit Mono Station is a perfect hub for all your sequencing needs. Whether you use it as a conduit between your MIDI gear and DAW (Ableton Live Lite included) or as the main sequencer in your Eurorack synth rig, you'll appreciate the epic flexibility of this amazing groovebox.





Novation Circuit Mono Station Synthesis Groovebox Features:

Powerful analog synthesis and flexible sequencing in a modern groovebox format
Paraphonic dual-oscillator analog synthesizer based on the Novation Bass Station
Independent 4-waveform oscillators provide a strong basis for subtractive synthesis
Switchable highpass/bandpass/lowpass filter section includes 12dB and 24dB/octave slopes
4-waveform LFO with sync and slider-controlled ADSR envelope onboard
Assign 4 modulation sources (envelope, LFO, velocity, and sequencer) to 8 destinations
Add grit and texture to your sounds with 3 distortion types and filter overdrive
4 x 8 RGB pad matrix provides you with 32 velocity-sensitive pads for performance and programming
Select from 16 scale types for musical inspiration and easy melody construction
3 independent sequencers with multiple sync options cover both oscillators plus modulation
USB connectivity, MIDI I/O, and analog outputs (CV, gate, and modulation) offer extensive control options
Includes Ableton Live Lite DAW software and 4GB of Loopmasters sounds and samples
USB cable and 3 MIDI breakout cables included





Tech Specs



Type
Performance Pad Monosynth with Sequencer


Internal Sound Engine
2 x Oscillators


Sequencer
1 x modulation sequencer, 2 x oscillator sequencer


Sounds
Sawtooth, triangle, square, sub-oscillator, sample & hold, noise generation, ring modulation


Manufacturer Presets
4GB loopmaster sounds/samples (via Ableton Live Lite)


Analog Inputs
1 x 1/4" (audio in)


Analog Outputs
1 x 1/4" (line out), 1 x 1/8" (headphones)


MIDI I/O
In/Out/Thru (1/8" with breakout cables)


Effects Types
3 x Filter Overdrives, 3 x Distortions, Modulation


Pads
32 velocity sensitive RGB pads


USB
1 x USB Type B

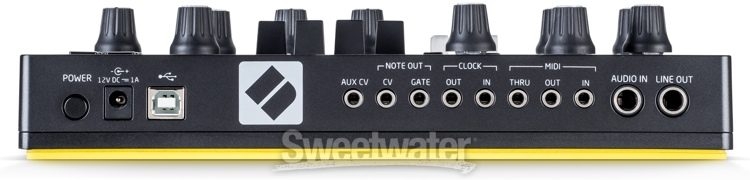

Other I/O
Aux CV, CV, Gate, In/Out Clock


Software
Ableton Live Lite


Power Supply
12V DC power supply (included)


Depth
9.84"


Width
9.45"


Height
2.13"


Weight
3.24 lbs.


Manufacturer Part Number
AMS-CIRCUIT-MONO
