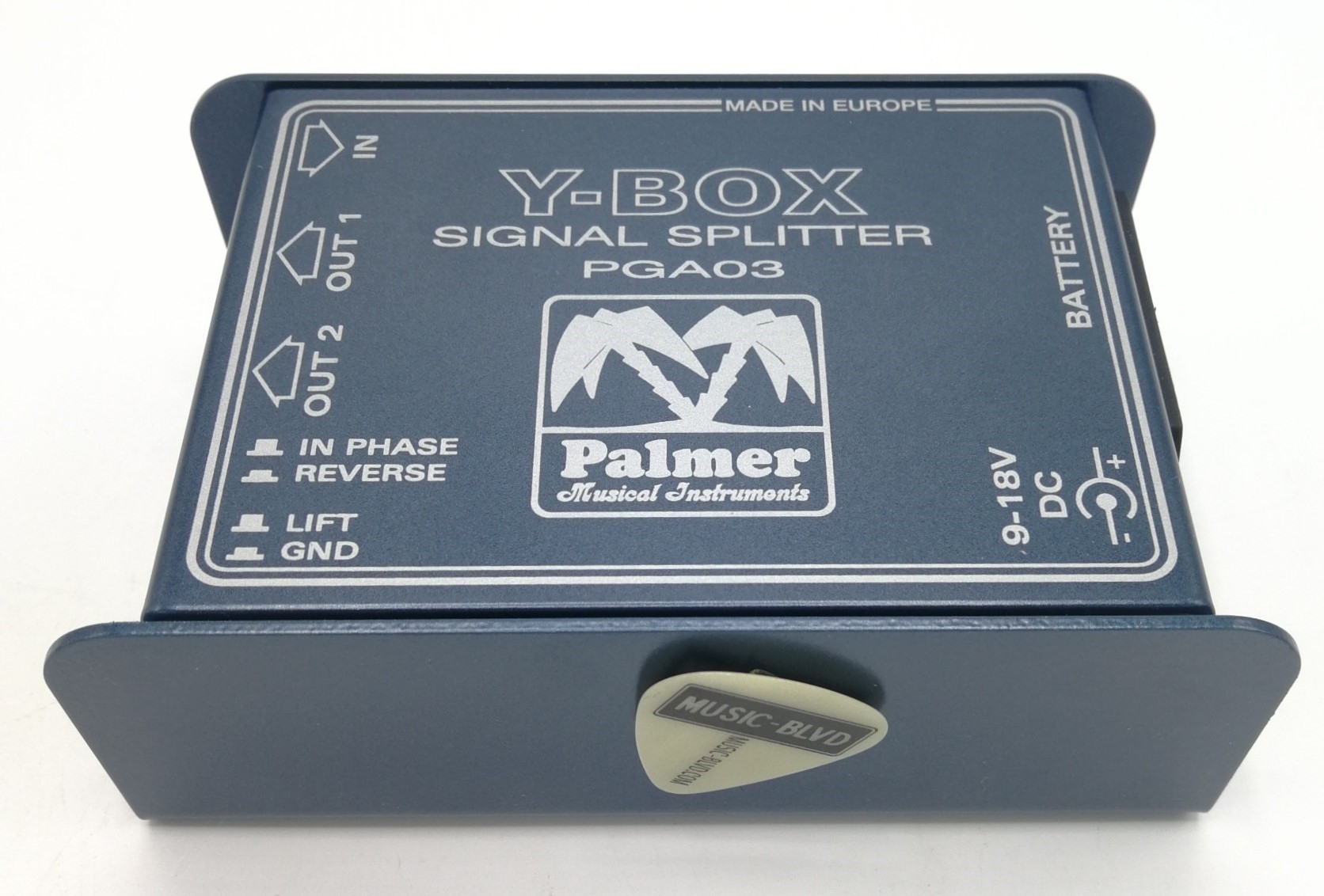

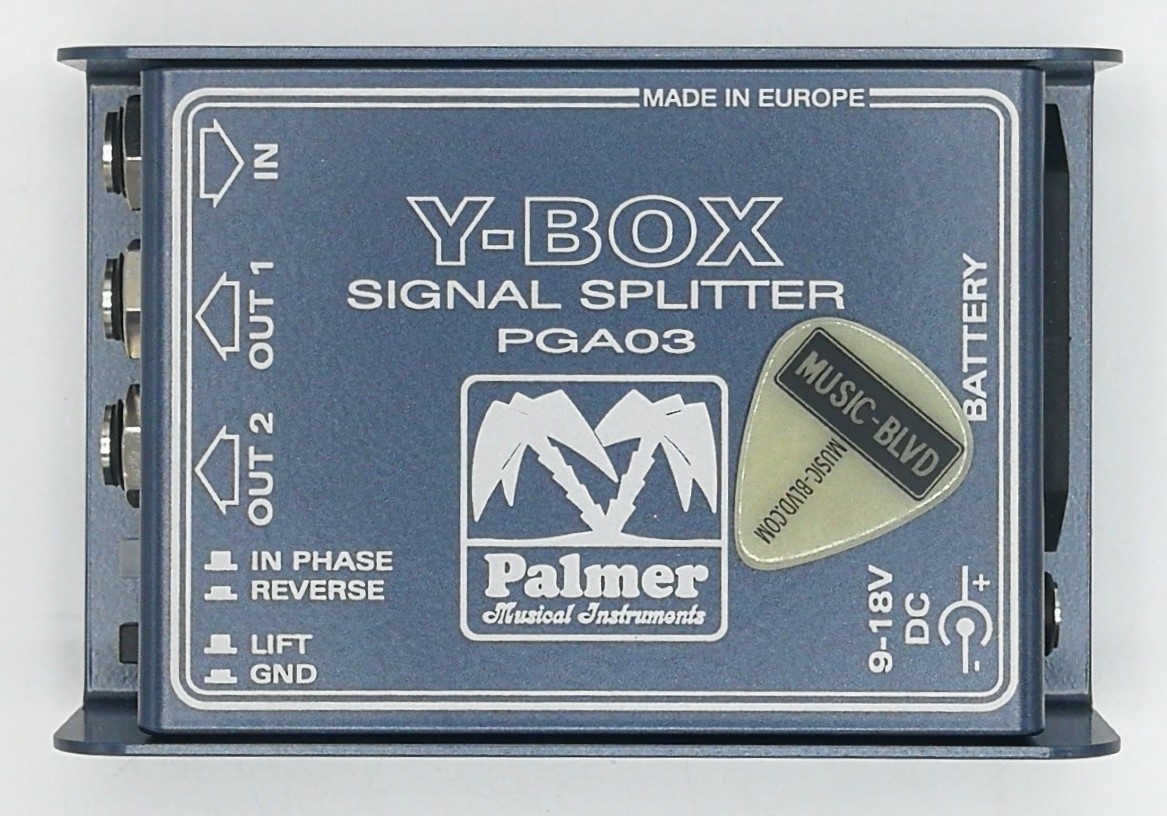

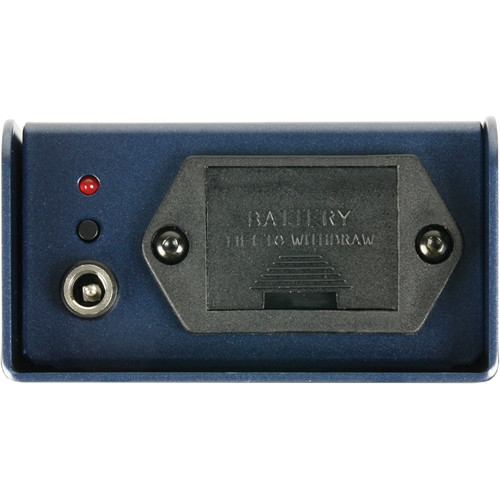

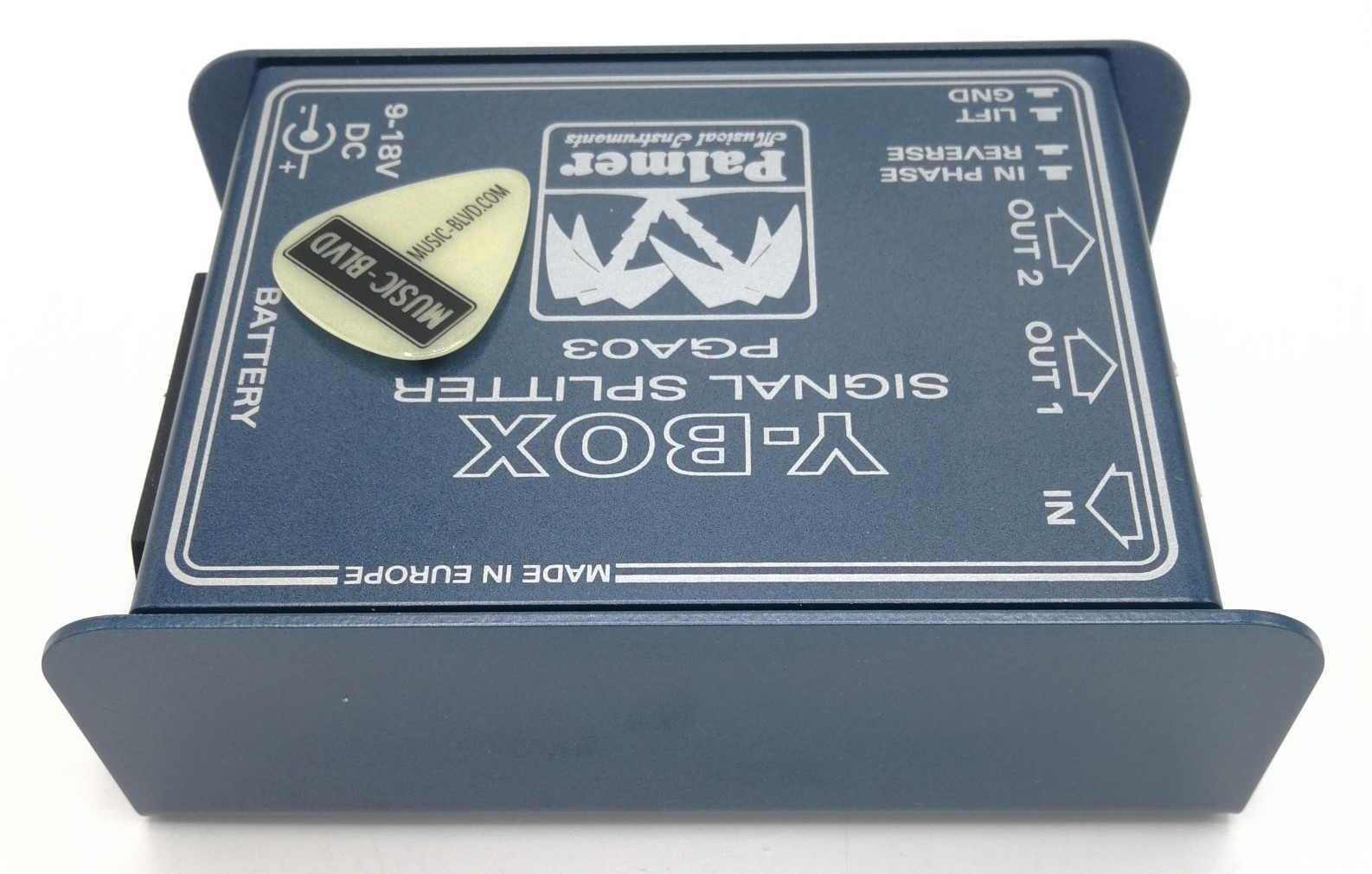

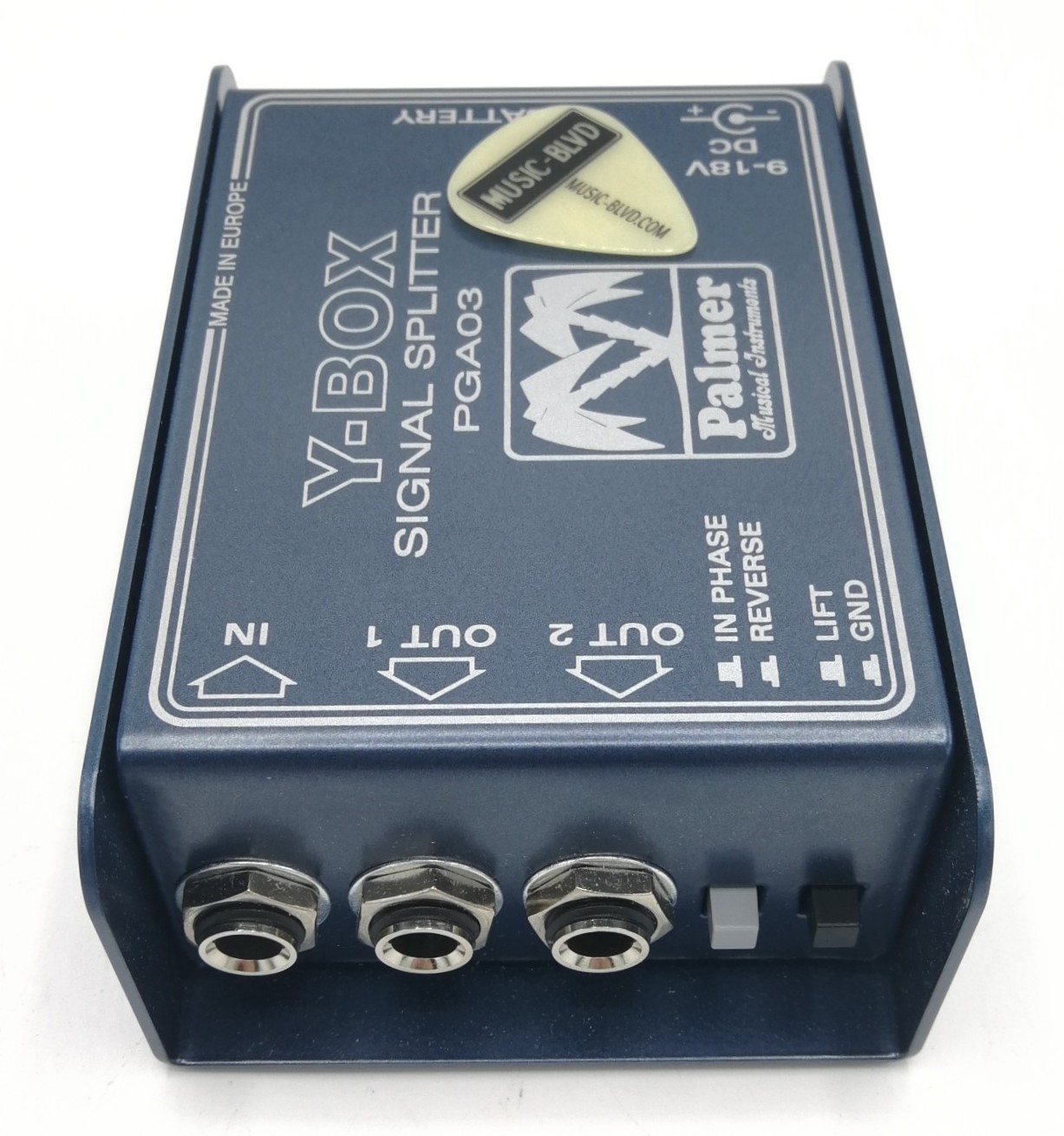

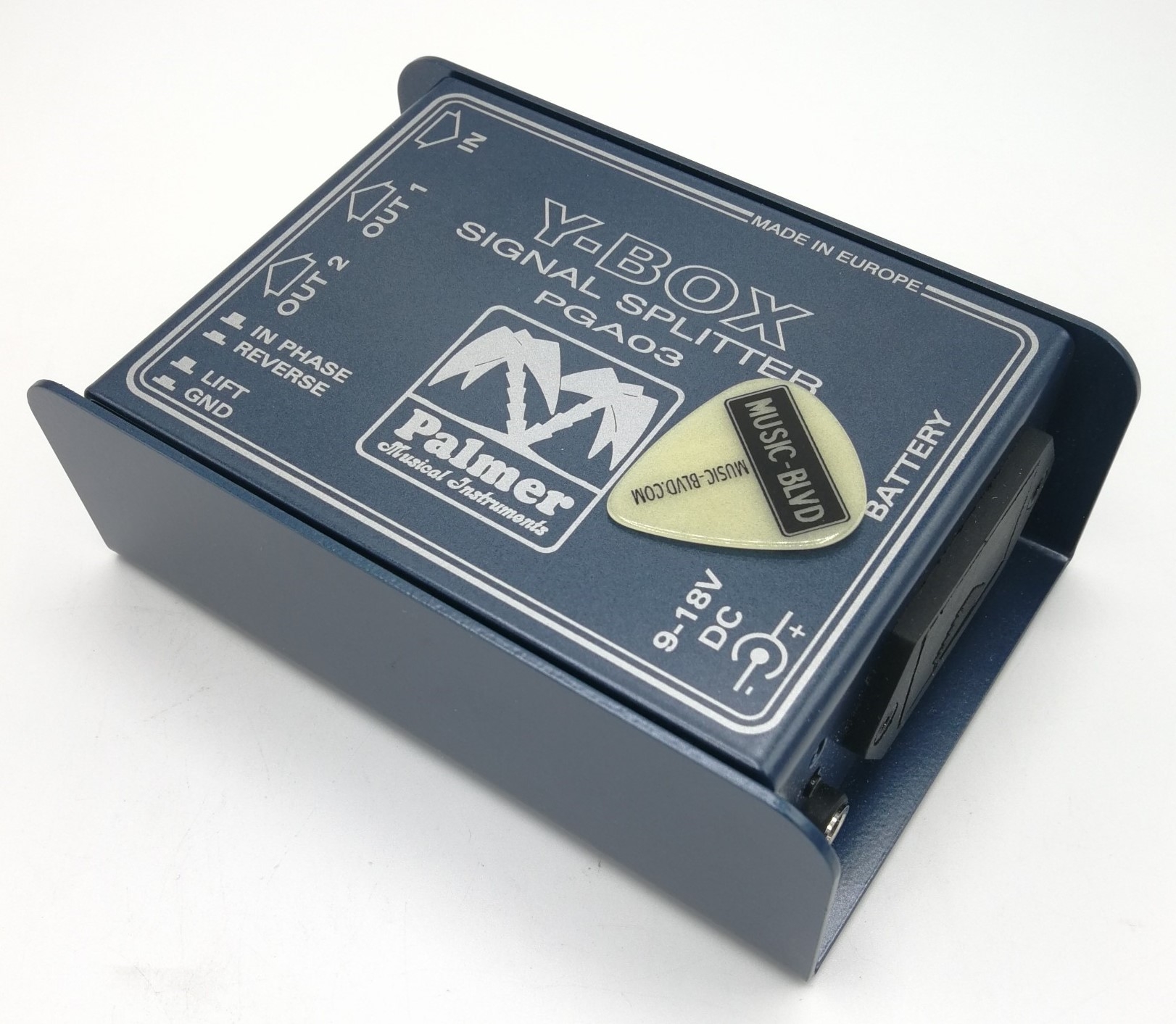

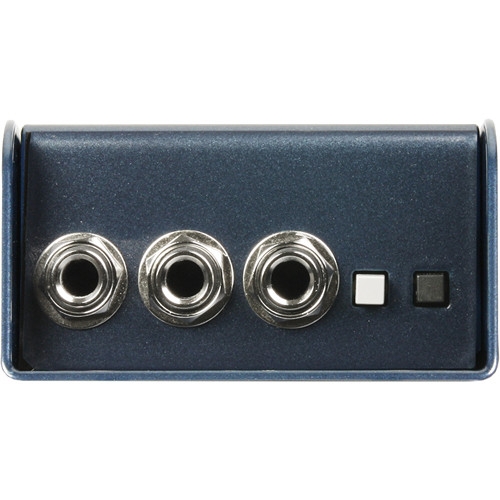

Palmer PGA03 Splitter for Guitars

Palmer PGA03 Overview







The PGA03 Splitter for Guitars from Palmer converts the Hi-Z guitar signal and uses FET input circuitry which drives a transformer, to route the ungrounded signal to the output, eliminating ground loop hum. The splitter can also be used as a line driver for long cable runs. It features a phase reverse switch for the AMP 2 output or when using pre-amps and amps that are out of phase. The splitter runs on a 9V battery and is constructed of powder-coated sheet steel for durability.

Palmer PGA03 Specs






Input


Inputs
1


Input Connectors
0.2" / 6.3 mm Jack


Input Type
Non-adjustable






Output


Outputs
Split outputs per canal: 1


Output Connectors
0.2" / 6.3 mm Jack


Output Type
THRU outputs: 1 Transformer isolated outputs Non-adjustable






General


Controls
Phase, ground lift


Indicators
Power


Operating Voltage
9 VDC power supply 9 V Block


Material
Powder-coated sheet steel


Dimensions (W x D x H)
4.9 x 3.1 x 1.8" / 125.0 x 80.0 x 45.0 mm


Weight
1.3 lb / 0.6 kg











Shipping weight approx. 2 lbs.
www.music-blvd.com 159.99USD
