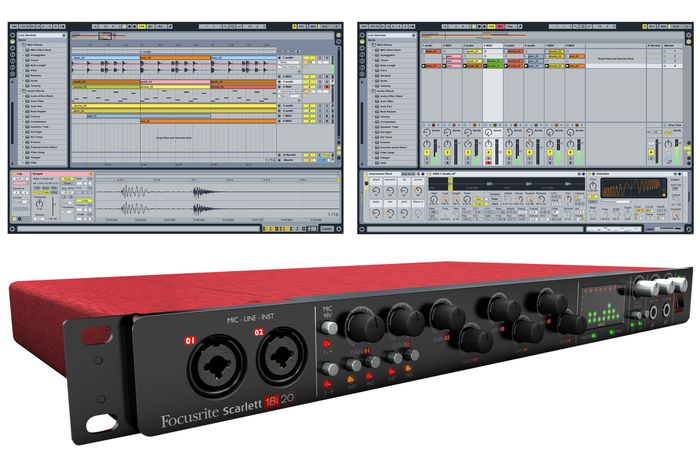

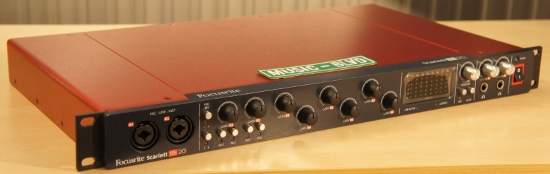

Focusrite Scarlett 18i20 Audio Interface

USB 2.0 audio interface with 8 Focusrite mic preamps.

The Focusrite 18i20 brings the recording performance of 8 award-winning Focusrite mic preamps and combines them with a high-quality 24-bit/96kHz USB 2.0 interface that’s compatible with Mac, Windows, and iOS platforms, which means legendary recording performance on the iPad (Apple Camera Connection Kit required). Focusrite’s mic preamps are found in the world’s top studios and give the 18i20 an unequalled level of performance, with low noise, minimal distortion and enormous dynamic range. The Scarlett preamps offer exceptional headroom, and two front-panel inputs also offer 10dB pad buttons to handle the highest-level inputs without distortion. Comprehensive inputs/outputs With 18 inputs and 20 outputs, Scarlett 18i20 includes enough I/O to handle the vast majority of day-to-day studio tasks at maximum quality, with maximum flexibility. Scarlett 18i20 features six combo XLR/jack mic/line inputs plus two front-panel XLR/jack mic/line/instrument inputs with 10dB pad buttons, 10 analogue line outputs, two independent headphone outputs on the front panel, and ADAT and S/PDIF digital I/O, plus MIDI I/O and Word Clock out for digital synchronization when required. The ADAT interface can be used to bring in digital sources or to add extra preamps such as Focusrite’s OctoPre Mk II, bringing the mic pre complement to 16 channels, ideal for recording a complete band and minimizing overdubs. High channel count and Focusrite quality – now on USB 2.0 and iOS Scarlett 18i20 is the USB complement of the tried and tested Saffire PRO 40 Firewire interface. Suitable for Windows, Mac and even iOS (with the Camera Connection Kit*) platforms, Scarlett 18i20’s USB 2.0 connection suits almost any computer, helping you build a setup in which external storage and audio interfaces do not have to share the same computer bus (recommended for the best performance) – if you have Firewire drives, for example, a USB audio interface is the best choice. Comprehensive bundle of included software Comes with Ableton Live Lite – ground-breaking production and performance software, Scarlett Plug-in Suite – EQ, compression, gating and reverb, Novation Bass Station - software model of the classic Novation analogue mono-synth, and 1GB of Loopmasters samples.



Features

Eight high-quality award-winning Focusrite preamps
24-bit/96kHz USB 2.0 interface compatible with Mac, Windows and iOS
18 inputs & 20 outputs
Dual independent headphone buses
Scarlett MixControl ultra-low-latency DSP mixer/router
Unmatched routing flexibility
Comprehensive bundle of included software



Put the power of 8 Focusrite preamps to work on your Mac, PC, or iOS device.



Scarlett 18i20 Audio Interface Specifications:


Inputs and Outputs
IN
8 Mic/line analogue Combi XLR Including 2 instrument inputs
2 S/PDIF RCA Phono Can be routed via lightpipe
8 ADAT Optical Lightpipe 4 channels via SMUX 2 96kHz
16 MIDI 5pin DIN connector Provides 16 channels of MIDI
OUT
2 Line analogue ¼” TRS Jack Dedicated monitor outputs
8 Line analogue ¼” TRS Jack
4 outputs (7/8 & 9/10) are also available via the 2 independently controlled, stereo headphone ¼” Jack on the front panel
2 S/PDIF RCA Phono Can be routed via Lightpipe
8 ADAT Optical Lightpipe 4 channels via SMUX @ 96 kHz
16 MIDI 5pin DIN connector Provides 16 channels of MIDI
System requirements
Mac OS X 10.7 Lion or 10.8 Mountain Lion or later
Windows 7 (all versions) or Windows 8 (Not including Windows RT)
