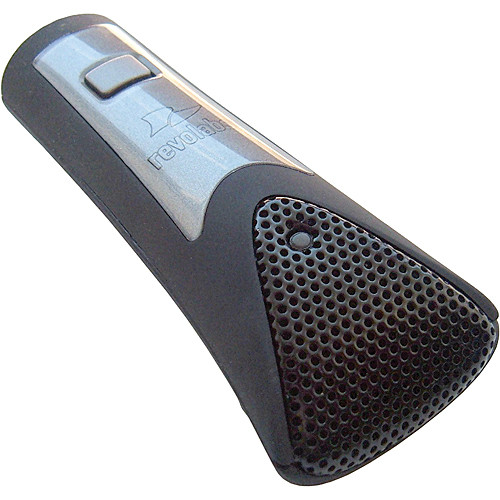

Revolabs Solo RF-Armor Wireless Microphone

The Revolabs Solo RF-Armor Wireless Microphone is intended
for use with Revolab's Solo series wireless microphone and conference
system. The microphone features a unidirectional pickup pattern with a
pickup area of +/- 45°. The design is also impervious to noise caused by
Radio Frequency Interference (RFI), so it can be used with confidence
around other wireless equipment, cell phones, Blue Tooth devices, etc.
An 85% charge is achieved in 45 minutes, and a full charge allows the
microphone to operate up to 8 hours.



Unidirectional pickup pattern


RFI noise rejection


Operates up to 8 hours on a full charge


May be used in conjunction with additional Solo series wireless mics









System



Type of System


Single Channel VHF



RF Carrier Frequency Range


170 - 216MHz



Approx. Working Range


150' typical-up to 300' line-of-sight



Overall Frequency Response


80Hz - 14kHz, +/-3dB



Total Harmonic Distortion (THD)


< 0.7



Frequency Stability


+/- 0.005%, crystal controlled



Modulation


FM (F3E), +/-15kHz max








Receiver



Type of Outputs


1/4" unbalanced audio out jack, 2.1mm



Power Requirements


9V @ 120mA, nominal, AC/DC adapter supplied



Display


Power On, Transmitter RF (CH A & CH B)



Antenna Type


Single 15" (38 cm), collapsible



Dimensions


8.2 x 5.3 x 1.75" (20.8 x 13.5 x 4.4cm)



Weight


16.1 oz (451 g)








Transmitter



Type of Transmitter


HT-Duo Handheld Microphone Transmitter



Type of Microphone


Dynamic



Polar Pattern


Unidirectional (Cardioid)



Battery Type/Approx. Life


Battery: 9V Alkaline

Battery Life: Up to 15 hours



Mute Switch


Off/On Switch



Display


Low-battery LED



Dimensions


8.9 x 1.4" (22.6 x 3.5cm)



Weight


5.4 oz (151 g)
