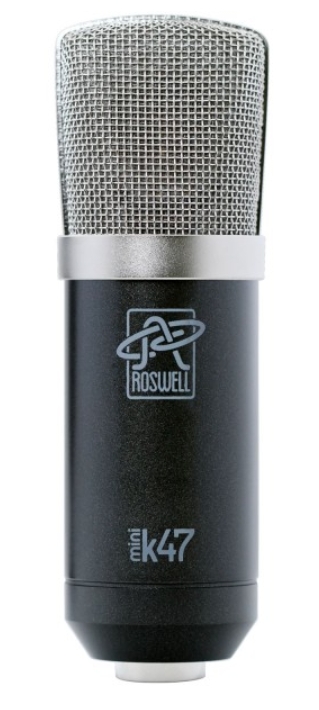

ROSWELL PRO AUDIO MINI K47 CONDENSER MICROPHONE (DEMO DEAL)

PRODUCT DESCRIPTION
The Roswell Pro Audio Mini K47 captures the tone of a vintage microphone, with modern performance specifications.
"K47" refers to the capsule design. The capsule in this microphone is modeled after the one in the most famous microphone of all time. It provides a full, balanced tone without any harshness or hype in the upper frequencies. It will record less sibilance and fewer mouth sounds on your next vocal track. It will add weight and body to high strings and electric guitars. It will reduce the jangle in strummed acoustic tracks.
For this microphone, a very clean and transparent circuit design was chosen. It lets the sound of the capsule pass through without alteration. Self-noise and distortion performance are on par with microphones costing significantly more. The circuit incorporates the best tricks learned from modifying and upgrading other companies’ products.
To ensure that every Mini K47 microphone delivers superior performance out of the box, every unit gets extensive testing prior to shipping: for polarity, noise, frequency response, and sensitivity.
The Mini K47 ships with a swivel mount and padded storage pouch. As of May 1, 2016, the Mini K47 also includes an elastic shockmount as a free upgrade.
Recording drum overheads or other stereo applications? Click for matched pairs of the Mini K47.
FEATURES:

True single-backplate 34mm K47 style capsule
3-micron diaphragm
Ultra-clean transformerless circuit
Imported, audiophile-grade capacitors
Heavy, solid steel body

BENEFITS:

Natural, unhyped frequency response
Enhanced articulation
Solid, high-quality construction
High sensitivity
Low self-noise and very low distortion
Modern performance with vintage tone

COMPONENT DETAILS:
The Mini K47 is built into a body used by several other manufacturers. But it differs extensively from those lookalike microphones, in its components, its performance, and its sound.
The most significant difference is in the capsule. While competing models use either a small-diaphragm capsule or an undersized 32mm K67 type, the Mini K47 -- as its name states -- uses a true 34mm K47 type capsule, modeled after the capsule in the most famous microphone of all time. Roswell selected this capsule because it delivers a sound that no K67-based microphone can ever achieve: beautiful midrange detail with a neutral, rather than a hyped, top end.
Most of the condenser microphones under $800 use the 2SK170 JFET, a low-cost, general purpose amplifier that can sound good when configured properly. But it usually used in circuits where its very high input capacitance (Ciss, 30pF) acts like a hardwired pad: it reduces the mic's sensitivity, which effectively raises the mic's noise floor. A JFET with a much lower input capacitance was used and each one biased individually within the microphone's circuit, to ensure the highest possible gain without distortion.
The input coupling cap is the first component most aftermarket "modders" would change, because so many condenser mics use a low-grade ceramic or generic polyester box film type in this critical position. For the Mini K47, a polystyrene part was used. Styrene capacitors are generally considered to be the most neutrally voiced, cleanest sounding capacitors.
The main signal capacitors in this circuit are polypropylene film types, imported from Germany.
This combination of components delivers a sonic profile that is much more musical and balanced than anything in its price category.





PRODUCT SPECIFICATIONS



CONDITION
Demo / B-Stock


PACKAGE CONTENTS
Swivel mount and padded storage pouch


TUBE OR SOLID STATE
Solid State


TRANSDUCER TYPE
Condenser


POLAR PATTERN
Cardioid


NUMBER OF MICROPHONES
Single Microphone


PHANTOM REQUIRED
Yes


FREQUENCY RANGE
20 - 16,000 Hz


SENSITIVITY
18 mV/Pa


ANALOG OR DIGITAL
Analog
