Audio-Technica AT4022 Omnidirectional Condenser Microphone

Audio-Technica


An omnidirectional mike ideal for recording acoustic instruments.

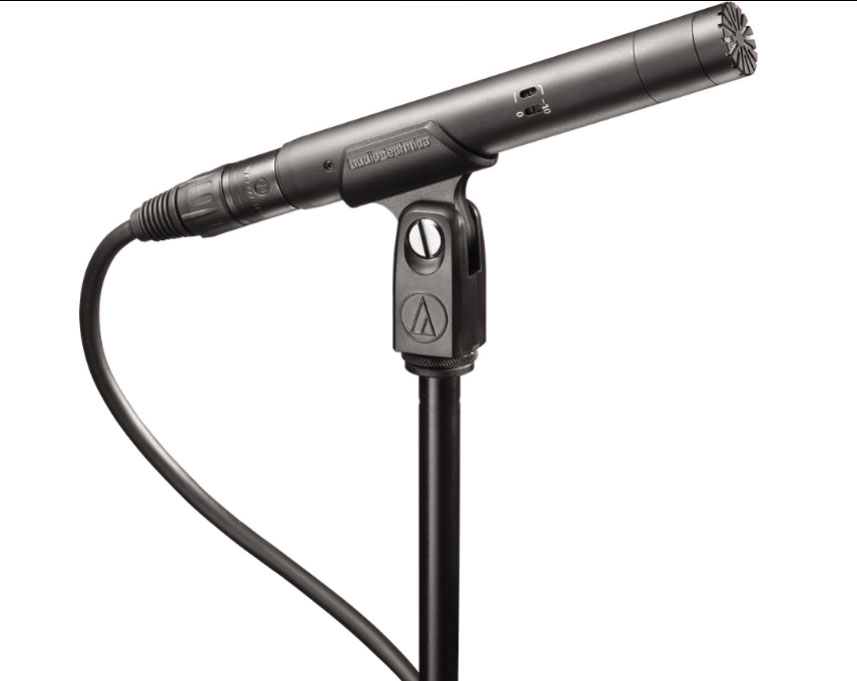

The low-profile Audio-Technica AT4022 is an
omnidirectional condenser recording mic that is outstanding for piano,
acoustic guitar, and other acoustic instruments. With a flat, extended
frequency response and wide dynamic range ideal for critical studio and
live applications, the AT4022 microphone handles high SPLs with ease.
The AT microphone's omnidirectional polar pattern preserves the "sound"
of the recording location, delivering flat response and freedom from
proximity effect. The Audio-Technica AT4022 mic's low-mass diaphragm
improves transient response and reduces handling and mechanical noise
transfer. Requires 48V DC phantom power.




Features

High SPL handling and wide dynamic range
Flat, extended frequency response
Switchable 80 Hz hi-pass filter and 10 dB pad
Omnidirectional polar pattern provides maximum ambient pickup
Low self noise perfectly suited for digital recording equipment
Exceptional reproduction of low frequency sounds
Low-mass element for superb transient response




Improve your studio recordings today!







AT4022 Omnidirectional Condenser Microphone Specifications:

Element: Fixed-charge back plate, permanently polarized condenser
Polar Pattern: Omnidirectional
Frequency Response: 20-20,000 Hz
Low Frequency Roll-Off: 80 Hz, 12 dB/octave
Open Circuit Sensitivity: -34 dB (19.9 mV) re 1V at 1 Pa
Impedance: 250 ohms
Maximum Input Sound Level: 146 dB SPL, 1 kHz at 1% T.H.D.; 156 dB SPL, with 10 dB pad (nominal)
Noise: 13 dB SPL
Dynamic Range (Typical): 133 dB, 1 kHz at Max SPL
Signal-To-Noise Ratio: 81 dB, 1 kHz at 1 Pa
Phantom Power Requirements: 48V DC, 3.0 mA typical
Switches: Flat, roll-off; 10 dB pad
Weight: 124 g (4.4 oz)
Dimensions: 144.0 mm (5.67") long, 21.0 mm (0.83") maximum body diameter
Output Connector: Integral 3-pin XLRM-type
Accessories Furnished: AT8405a stand clamp for 5/8"-27 threaded stands; windscreen; protective carrying case
Audio-Technica Case Style: S1
