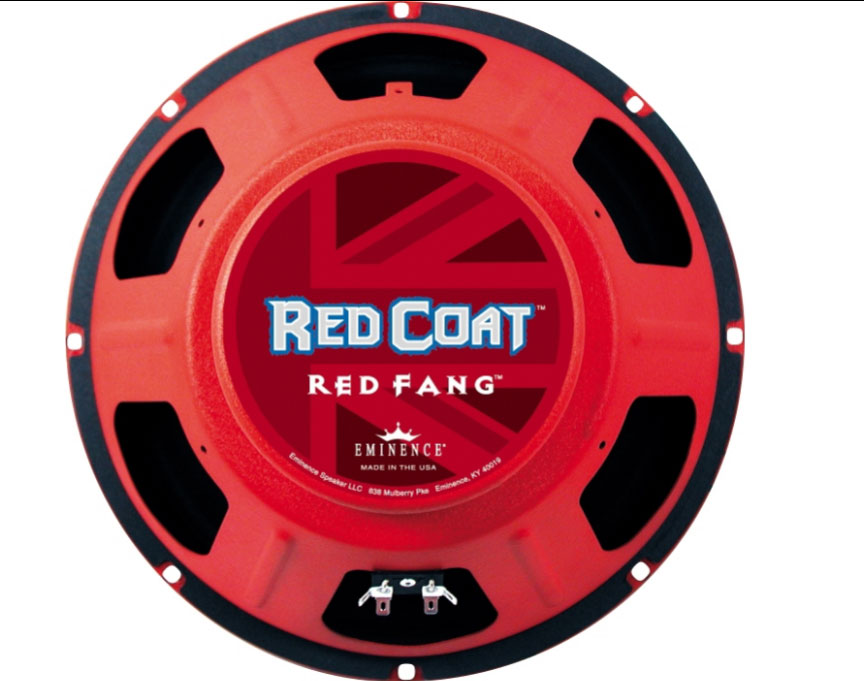

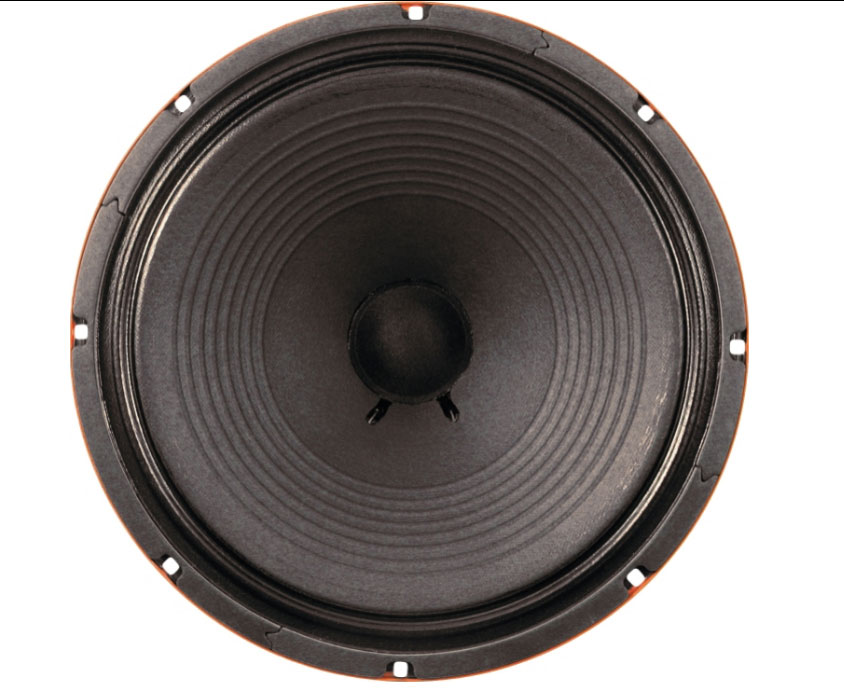

Eminence Red Fang 12" 50W Guitar Speaker

Vintage British voicing.




The Eminence Red Fang 12" Guitar Speaker is
perfect for blues, country, indie, and jazz. Warm undertones and
high-end sparkle. Great in a 1, 2, or 4 x 12" open- or closed-back
speaker cabinet setup. 30W RMS handling, 60W peak. 8 or 16 ohm
impedance.




Features



Get that beefy British sound you've been looking for. Call or click to order today!







Red Fang 12" 50W Guitar Speaker Specifications:

Specifications
Nominal Basket Diameter: 12", 304.8mm
Nominal Impedance: 16 ohms
Power Rating: 30 Watts
Resonance: 97Hz

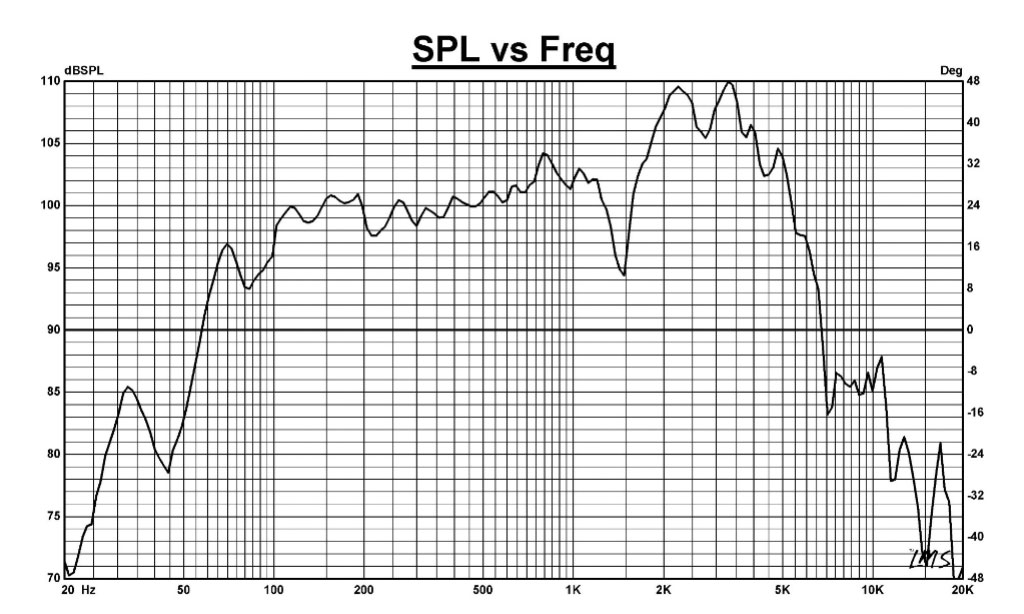

Usable Frequency Range: 70Hz-5.5kHz
Sensitivity: 103
Magnet Weight: 35 oz.
Gap Height: 0.312", 7.92mm
Voice Coil Diameter: 1.75", 44.5mm

Thiele & small parameters
Resonant Frequency (fs): 97Hz
DC Resistance (Re): 5.72
Coil Inductance (Le): 0.39mH
Mechanical Q (Qms): 13.39
Electromagnetic Q (Qes): 0.74
Total Q (Qts): 0.70
Compliance Equivalent Volume (Vas): 39.4 liters / 1.4 cu. ft.
Peak Diaphragm Displacement Volume (Vd): 25cc
Mechanical Compliance of Suspension (Cms): 0.10mm/N
BL Product (BL): 11.1 T-M
Diaphram Mass inc. Airload (Mms): 26 grams
Efficiency Bandwidth Product (EBP): 131
Maximum Linear Excursion (Xmax): 0.5mm
Surface Area of Cone (Sd): 519.5 cm2

Mounting information
Recommended Enclosure: Sealed and Vented Acceptable
Overall Diameter: 12.02", 305.3mm
Baffle Hole Diameter: 10.97", 278.6mm
Front Sealing Gasket: fitted as standard
Rear Sealing Gasket: fitted as standard
Mounting Holes Diameter: 0.25", 6.4mm
Mounting Holes B.C. D.: 11.63", 295.4mm
Depth: 6.2", 158mm
Net Weight: 9.3 lbs., 4.2 kg
Shipping Weight: 11.1 lbs., 5 kg

Materials of construction
Coil Construction: Copper voice coil
Coil Former: Nomex former
Magnet Composition: Alnico magnet
Basket Materials: Pressed steel basket
Cone Composition: Paper Cone
Cone Edge Composition: Paper cone edge
Dustcap Composition: Zurette





*Estimate Shipping between 5 - 12 weeks, or please call (083) 497-2227 for a faster air freight service with special price rate.
