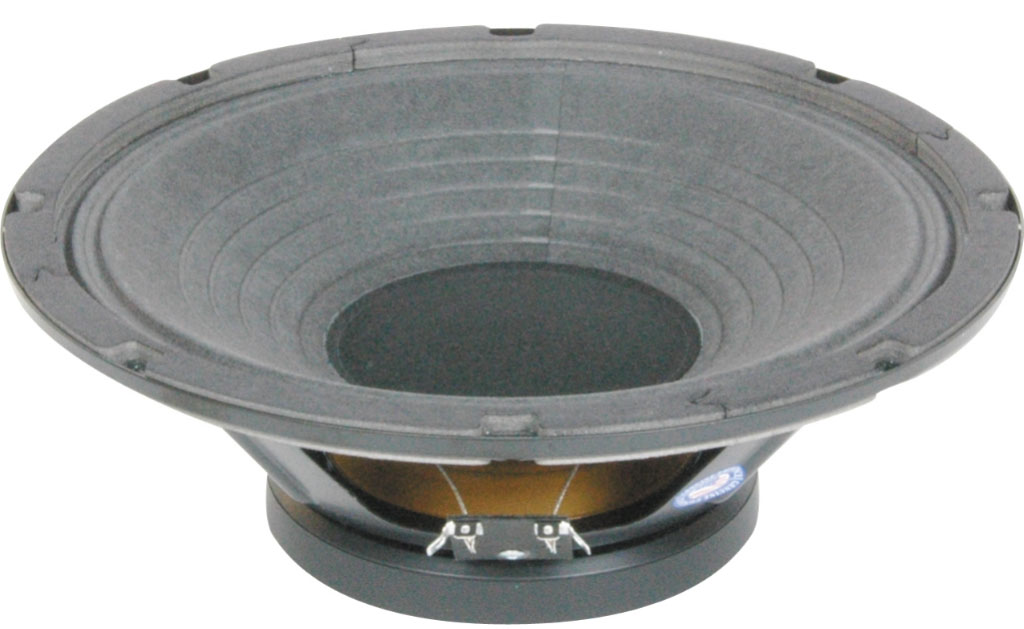

Eminence Legend 1058 10 In Guitar Speaker

The Eminence Legend 1058 10" Guitar Speaker has a
very meaty tone, but with sparkle, definition and a smooth top-end.
This Eminence Legend speaker is great for blues, country and rock. High
power, vintage, seamed cone tonality for guitar. It's an ideal Vintage
alnico Jensen replacement speaker.




Features

Voice Coil Diameter: 1.5", 38.1mm
Magnet Weight: 16 oz.
Power Rating.: 75W




Put this Eminence speaker in the cart.








Legend 1058 10 In Guitar Speaker Specifications:


Nominal Basket Diameter: 10", 254mm
Nominal Impedance: 8 ohms
Power Rating*: 75W
Resonance: 97Hz
Usable Frequency Range: 100Hz-6kHz
Sensitivity**: 98.7
Magnet Weight: 16 oz.

Thiele & Small Parameters
Resonant Frequency (fs): 97Hz
DC Resistance (Re): 7.49
Coil Inductance (Le): 0.56mH
Mechanical Q (Qms): 17.78
Electromagnetic Q (Qes): 1.21
Total Q (Qts): 1.13
Compliance Equivalent Volume (Vas): 26.4 liters / 0.9 cu. ft.
Peak Diaphragm Displacement Volume (Vd): 0cc
Mechanical Compliance of Suspension (Cms): 0.16mm/N
BL Product (BL): 8.0 T-M
Diaphragm Mass inc. Airload (Mms): 17 grams
Efficiency Bandwidth Product (EBP): 80
Maximum Linear Excursion (Xmax): 0.0mm
Surface Area of Cone (Sd): 344.9 cm2

Mounting Information
Recommended Enclosure Volume:
Sealed: Acceptable
Vented: Acceptable
Overall Diameter: 10.11", 256.8mm
Baffle Hole Diameter: 9.13", 231.8mm
Front Sealing Gasket: fitted as standard
Rear Sealing Gasket: fitted as standard
Mounting Holes Diameter: 0.23", 5.7mm
Mounting Holes B.C.D.: 9.6", 243.8mm
Depth: 4.1", 104mm
Net Weight: 4.4 lbs., 2 kg
Shipping Weight: 5.4 lbs., 2.5 kg

Materials of Construction
Copper voice coil
Polyimide former
Ferrite magnet
Non-vented core
Pressed steel basket
Paper Cone
Paper cone edge
Solid composition felt dust cap

*
Multiple units exceed published rating evaluated under EIA 426A noise
source and test standard while in a free-air, non-temperature controlled
environment.
**The average output across the usable frequency
range when applying 1W/1M into the nominal impedance. Ie: 2.83V/8ohms,
4V/16ohms.
Eminence response curves are measured under the
following conditions: All speakers are tested at 1w/1m using a variety
of test set-ups for the appropriate impedance " LMS using 0.25" supplied
microphone (software calibrated) mounted 1m from wall/baffle " 2ft. X
2ft. baffle is built into the wall with the speaker mounted flush
against a steel ring for minimum diffraction " Hafler P1500 Trans-Nova
amplifier " 2700 cu.ft. chamber with
fiberglass on all six surfaces (three with custom-made wedges)






*Estimate Shipping between 5 - 12 weeks, or please call (083) 497-2227 for a faster air freight service with special price rate.
