Eminence Basslite S2010 10" 150W Bass Speaker

Neodymium magnet for less weight, more punch.

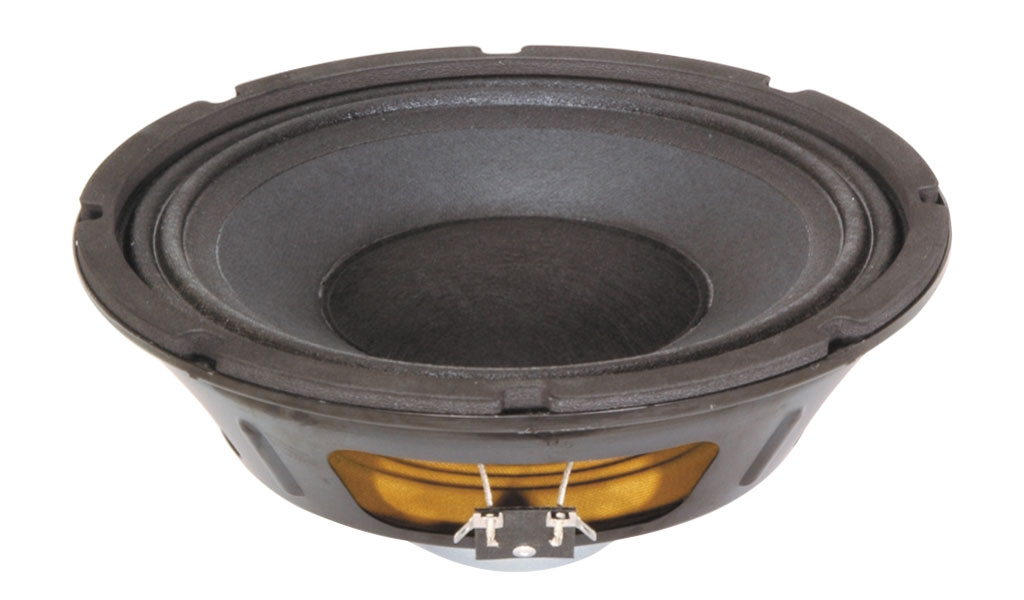

The Eminence Basslite S2010 10" Bass Speaker
delivers the tone you want. It's recommended for bass guitar and ideal
for vented 1x10", 2x10", and 4x10" enclosures.




Features

Neodymium magnet for lighter weight




Put this replacement speaker in the cart.







Basslite S2010 10" 150W Bass Speaker Specifications:

Nominal Basket Diameter: 10", 254mm
Nominal Impedance*: 8 ohms
Power Rating**: 150W
Resonance: 46Hz
Usable Frequency Range: 54Hz-4kHz
Sensitivity***: 96.2
Magnet Weight: 4 oz.
Gap Height: 0.28", 7.2mm
Voice Coil Diameter: 2", 50.8mm

Resonant Frequency (fs): 46Hz
DC Resistance (Re): 5.02
Coil Inductance (Le): 0.47mH
Mechanical Q (Qms): 4.16
Electromagnetic Q (Qes): 0.34
Total Q (Qts): 0.31
Compliance Equivalent Volume (Vas): 63.4 liters / 2.2 cu. ft.
Peak Diaphragm Displacement Volume (Vd): 140cc
Mechanical Compliance of Suspension (Cms): 0.36mm/N
BL Product (BL): 11.9 T-M
Diaphragm Mass inc. Airload (Mms): 33 grams
Efficiency Bandwidth Product (EBP): 135
Maximum Linear Excursion (Xmax): 4.0mm
Surface Area of Cone (Sd): 350.1 cm2
Maximum Mechanical Limit (Xlim): 8.0mm

Recommended Enclosure Volume:
Vented: 20-51 liters/ 0.7-1.8 cu.ft.
Overall Diameter: 10.08", 256mm
Baffle Hole Diameter: 9.05", 229.9mm
Front Sealing Gasket: fitted as standard
Rear Sealing Gasket:
Mounting Holes Diameter: 0.25", 6.4mm
Mounting Holes B.C.D.: 9.66", 245.4mm
Depth: 4.25", 108mm
Net Weight: 3.5 lbs., 1.6 kg
Shipping Weight: 4.6 lbs., 2.1 kg

Materials of Construction
Copper voice coil
Polyimide former
Neodymium magnet
Non-vented core
Pressed steel basket
Paper Cone
Cloth cone edge
Solid composition felt dust cap

*Please inquire about alternative impedances.
**Multiple
units exceed published rating evaluated under EIA 426A noise source and
test standard while in a free-air, non-temperature controlled
environment.
***The average output across the usable frequency
range when applying 1W/1M into the nominal impedance. Ie: 2.83V/8ohms,
4V/16ohms.
Eminence response curves are measured under the
following conditions: All speakers are tested at 1w/1m using a variety
of test set-ups for the appropriate impedance " LMS using 0.25" supplied
microphone (software
calibrated) mounted 1m from wall/baffle "
2ft. X 2ft. baffle is built into the wall with the speaker mounted flush
against a steel ring for minimum diffraction " Hafler P1500 Trans-Nova
amplifier " 2700 cu.ft. chamber with
fiberglass on all six surfaces (three with custom-made wedges)





*Estimate Shipping between 5 - 12 weeks, or please call (083) 497-2227 for a faster air freight service with special price rate.
