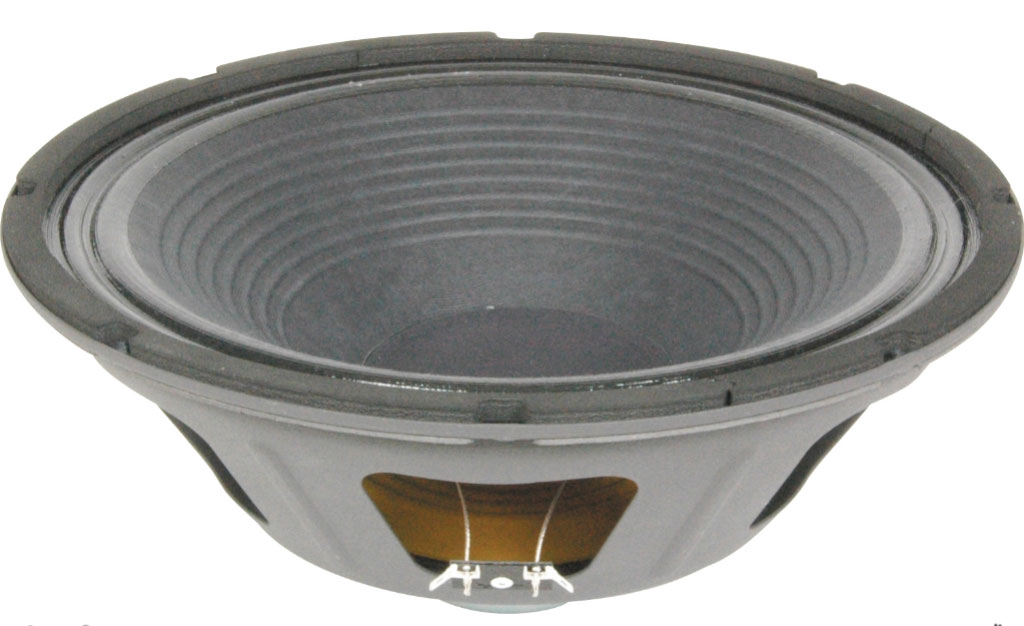

Eminence Lil' Texas 12" 125W Guitar Speaker

The Eminence Lil' Texas 12" Guitar Speaker is a
lightweight 12" speaker with a little Texas edge. Lil' Texas delivers a
very balanced tone with crisp mids and top end bite, tight bottom end,
and very American tonality. Great for classic rock, blues, and country.

Eminence
recommends the Lil" Texas speaker as an alternate replacement for the
Eminence Tonkerlite speaker in the Rocktron Velocity S1122 and the THD
Ported 2 x 12 cabinets.




Features



Put this replacement speaker in the cart.


Lil' Texas 12" 125W Guitar Speaker Specifications:


Nominal Basket Diameter: 12", 304.8mm
Nominal Impedance*: 8 ohms
Power Rating**: 125W
Resonance: 90Hz
Usable Frequency Range: 70Hz-5.5kHz
Sensitivity***: 101
Magnet Weight: 4 oz.
Gap Height: 0.28", 7.2mm
Voice Coil Diameter: 2", 50.8mm

Thiele & Small Parameters
Resonant Frequency (fs): 90Hz
DC Resistance (Re): 7.2
Coil Inductance (Le): 0.42mH
Mechanical Q (Qms): 11.29
Electromagnetic Q (Qes): 0.69
Total Q (Qts): 0.65
Compliance Equivalent Volume (Vas): 43 liters / 1.53 cu. ft.
Peak Diaphragm Displacement Volume (Vd): 66cc
Mechanical Compliance of Suspension (Cms): 0.11mm/N
BL Product (BL): 12.8 T-M
Diaphragm Mass inc. Airload (Mms): 28 grams
Efficiency Bandwidth Product (EBP): 130
Maximum Linear Excursion (Xmax): 1.3mm

Mounting Information
Recommended Enclosure Volume:
Sealed: Acceptable
Vented: Acceptable
Overall Diameter: 12.03", 305.5mm
Baffle Hole Diameter: 10.95", 278.1mm
Front Sealing Gasket: fitted as standard
Rear Sealing Gasket: fitted as standard
Mounting Holes Diameter: 0.25", 6.4mm
Mounting Holes B.C.D.: 11.59", 294.3mm
Depth: 5.07", 129mm
Net Weight: 4.1 lbs., 1.9 kg
Shipping Weight: 5.8 lbs., 2.6 kg

Materials of Construction
Copper voice coil
Polyimide former
Neodymium magnet
Non-vented core
Pressed steel basket
Paper Cone
Paper cone edge
Zurette dust cap

*Please inquire about alternative impedances.
**Multiple
units exceed published rating evaluated under EIA 426A noise source and
test standard while in a free-air, non-temperature controlled
environment.
***The average output across the usable frequency
range when applying 1W/1M into the nominal impedance. Ie: 2.83V/8ohms,
4V/16ohms.
Eminence response curves are measured under the
following conditions: All speakers are tested at 1w/1m using a variety
of test set-ups for the appropriate impedance " LMS using 0.25" supplied
microphone (software
calibrated) mounted 1m from wall/baffle "
2ft. X 2ft. baffle is built into the wall with the speaker mounted flush
against a steel ring for minimum diffraction " Hafler P1500 Trans-Nova
amplifier " 2700 cu.ft. chamber with
fiberglass on all six surfaces (three with custom-made wedges)





*Estimate Shipping between 5 - 12 weeks, or please call (083) 497-2227 for a faster air freight service with special price rate.
