Audio-Technica ATW-3110b 3000 Series UniPak Wireless System

Audio-Technica


A frequency-agile True Diversity UHF wireless receiver with convenient bodypack transmitter.

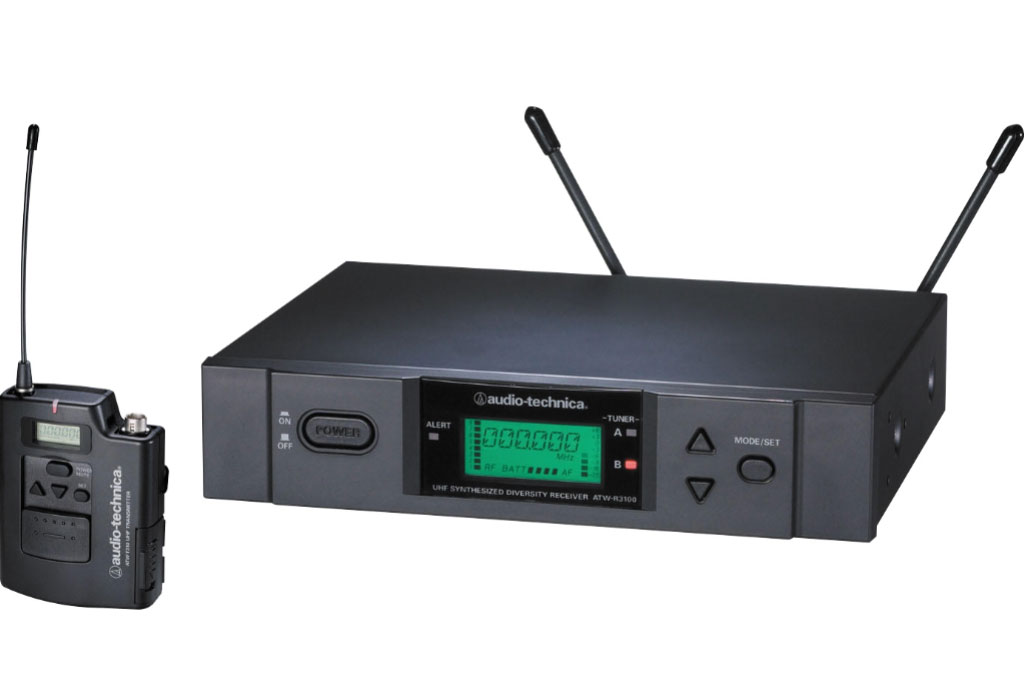

The Audio Technica ATW-3110b UniPak Wireless
System—part of Audio-Technica's third-generation 3000 Series wireless
systems—offers up to 996 selectable UHF frequencies. The ATW-3110b
delivers clear sound and intuitive operation. With the ATW-311b,
Audio-Technica has simplified the selection of usable frequencies,
increased system reliability, and illuminated transmitter screens for
clear reads on dark stages. It all adds up to the luxury of rock-solid,
richly detailed high-fidelity sound.

The versatile
Audio-Technica ATW-T310b UniPak body-pack transmitter is equipped with a
secure 4-pin locking connector compatible with a wide range of
microphones, as well as a guitar cable. A 3-position sliding cover on
the transmitter's control panel prevents accidental shut-off or
channel-switching. The UniPak's locking battery compartment provides a
more secure latch and more robust design.

The Audio-Technica
ATW-R3100b receiver is equipped with automatic frequency scanning for
easy setup. It also features true diversity reception. Two antennas feed
two completely independent RF sections on the same frequency; automatic
logic circuitry continuously compares and selects the superior received
signal, providing better sound quality and reducing the possibility of
interference and dropouts. Soft-touch controls provide convenient access
to a variety of functions, while a backlit LCD information display
provides constant monitoring of system operation, including indication
of the transmitter's battery status. The receiver is half-width for a
standard 1U 19" rack mount; rack-mount adapters are included.




Features

996 UHF frequencies
Antenna power available for powered antennas & other in-line RF devices
Nine pre-coordinated frequency scan groups simplify selection of usable frequencies in a multichannel wireless system
True Diversity operation reduces dropouts
Advanced digital Tone Lock squelch effectively blocks stray RF and communicates transmitter data for receiver display
Transmitter offer backlit LCD & dual-color LED
Locking battery compartment with secure latch and robust design
Ground-lift switch helps eliminate audible hum caused by ground loops




Get plenty of frequencies and freedom with this wireless system. Order today!








ATW-3110b 3000 Series UniPak Wireless System Specifications:


Overall System
UHF Operating Frequencies (Frequency Range/Number of Frequencies)
Band C: 541.500 to 566.375MHz/996
Band D: 655.500 to 680.375MHz/996
Not all frequencies are available in all areas. Please check with local regulations.
Minimum frequency: Step 25kHz
Modulation mode: FM
Maximum deviation: ±35kHz
Dynamic range: > 110dB (A-weighted), typical
Total Harmonic Distortion: < 1% (at 1kHz, ±17.5kHz deviation)
Operating range: 100m (300'), typical
Open range environment with no interfering signals.
Operating temperature range -5°C to +45°C, 23°F to 113°F
Battery and LCD performance may be reduced at very low temperatures.
Frequency response: 70Hz to 15kHz (+1dB, -3dB)

ATW-R3100b Receiver
Receiving system: True diversity
Image Rejection: 60dB nominal, 55dB minimum
RF Sensitivity: 20dBuV at 60dB S/N ratio (50Ω termination)
Maximum Output Level:
XLR, balanced: +9dBV
1/4" (6.3mm), unbalanced: +7dBV
Antenna Input:
BNC-type, 50Ω
Bias voltage 12V DC, 60 mA, each
Power Requirements: 12-18V DC, 500 mA
Dimensions (WxDxH): 210.0mm (8.27") x 164.4mm (6.47") x 44.0mm (1.73")
(Not including BNC connectors or feet)
Net weight: 1.1kg (38.8oz.), without accessories
Accessories:
Included Two flexible UHF antennas
AC adapter (country dependent)
Rack-mount adapters

ATW-T310b UniPak Transmitter
RF power output:
High: 30mW, Low: 10mW (switchable), at 50Ω
Spurious emissions: Following federal and national regulations
Input Connection Four-pin Locking Connector (Pin 1: GND, Pin 2: INST INPUT,
Pin 3: MIC INPUT, Pin 4: DC BIAS +5V)
Batteries: Two 1.5V AA, not included
Battery Life: High: 6 hours (alkaline), Low: 8 hours (alkaline), depending on battery type and use pattern
Dimensions (WxdxH): 66.0mm (2.60") x 24.0mm (0.94") x 87.0mm (3.43")
Net weight: 81g (2.9oz.), without batteries





*Estimate Shipping between 5 - 12 weeks, or please call (083) 497-2227 for a faster air freight service with special price rate.
