Audio-Technica ATW-3141b 3000 Series Dynamic Microphone Wireless System

Audio-Technica


A True Diversity UHF wireless receiver with dynamic handheld microphone/transmitter.

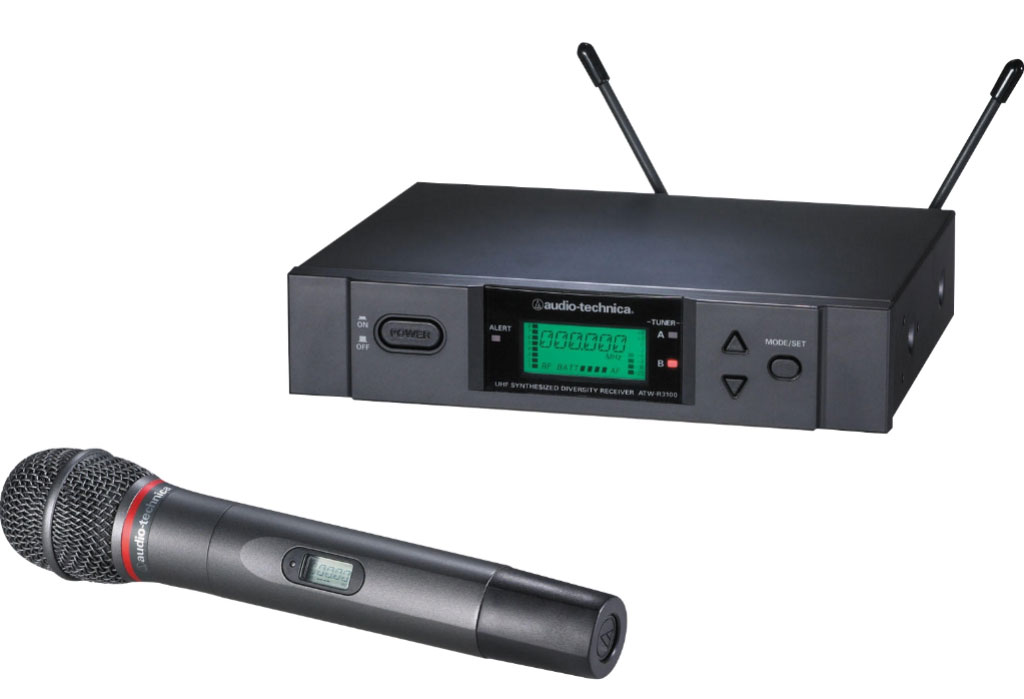

The Audio-Technica ATW-3141b Dynamic Microphone
Wireless System is part of Audio-Technica's third-generation 3000
Series. It includes an Audio-Technica ATW-R3100b receiver and an
Audio-Technica ATW-T341b handheld cardioid dynamic
microphone/transmitter.

The wireless system offers 996 selectable
UHF frequencies and features for clear sound and intuitive operation.
Audio-Technica has simplified the selection of usable frequencies,
increased system reliability, and illuminated transmitter screens for
clear reads on dark stages. It all adds up to the luxury of rock-solid,
richly detailed high-fidelity sound.

The Audio-Technica
ATW-R3100b receiver is equipped with automatic frequency scanning for
easy setup. It also features true diversity reception. Two antennas feed
two completely independent RF sections on the same frequency; automatic
logic circuitry continuously compares and selects the superior received
signal, providing better sound quality and reducing the possibility of
interference and dropouts. Soft-touch controls provide convenient access
to a variety of functions, while a backlit LCD information display
provides constant monitoring of system operation, including indication
of the transmitter's battery status. The receiver is half-width for a
standard 1U 19" rack mount; rack-mount adapters are included.

The Audio-Technica ATW-T341b handheld dynamic microphone/
transmitter
features the same element used in the Artist Elite AE4100 dynamic
handheld microphone created for professional live sound venues. This
transmitter
uses two 1.5V AA batteries for economical operation and wide
availability, and has a "fuel gauge" battery condition indicators with
low-battery warnings.

An advanced Digital Tone Lock tone squelch
system in the ATW-R3100b receiver opens only when a 3000 Series
transmitter 3000 Series Installation and Operation is detected, reducing
the possibility of interference. As a result, 3000 Series transmitters
and receivers must be used together and should not be used with
components from other Audio-Technica wireless systems, or with those of
other manufacturers. Exception: 3000 Series components are compatible
with Audio-Technica 1800 Series wireless system components.




Features

Includes ATW-R3100b receiver, ATW-T341b handheld transmitter
996 UHF frequencies
Antenna power available for powered antennas & other in-line RF devices
9 pre-coordinated frequency scan groups simplify selection of usable frequencies in a multichannel wireless system
True Diversity operation reduces dropouts
Advanced digital Tone Lock squelch effectively blocks stray RF and communicates transmitter data for receiver display
Transmitter offer backlit LCD & dual-color LED
Locking battery compartment with secure latch and robust design
Ground-lift switch helps eliminate audible hum caused by ground loops
Balanced and unbalanced audio output jacks




Keep on moving and grooving with this convenient wireless system. Order today.








ATW-3141b 3000 Series Dynamic Microphone Wireless System Specifications:


Overall System
UHF Operating Frequencies (Frequency Range/Number of Frequencies)
Band C: 541.500 to 566.375MHz/996
Band D: 655.500 to 680.375MHz/996
Not all frequencies are available in all areas. Please check with local regulations.
Minimum frequency: Step 25kHz
Modulation mode: FM
Maximum deviation: ±35kHz
Dynamic range: > 110dB (A-weighted), typical
Total Harmonic Distortion: < 1% (at 1kHz, ±17.5kHz deviation)
Operating range: 100m (300'), typical
Open range environment with no interfering signals.
Operating temperature range -5°C to +45°C, 23°F to 113°F
Battery and LCD performance may be reduced at very low temperatures.
Frequency response: 70Hz to 15kHz (+1dB, -3dB)

ATW-R3100b Receiver
Receiving system: True diversity
Image Rejection: 60dB nominal, 55dB minimum
RF Sensitivity: 20dBuV at 60dB S/N ratio (50Ω termination)
Maximum Output Level:
XLR, balanced: +9dBV
1/4" (6.3mm), unbalanced: +7dBV
Antenna Input:
BNC-type, 50Ω
Bias voltage 12V DC, 60 mA, each
Power Requirements: 12-18V DC, 500 mA
Dimensions (WxDxH): 210.0mm (8.27") x 164.4mm (6.47") x 44.0mm (1.73")
(Not including BNC connectors or feet)
Net weight: 1.1kg (38.8oz.), without accessories
Accessories:
Included Two flexible UHF antennas
AC adapter (country dependent)
Rack-mount adapters

T341b Handheld Transmitter
RF power output: High: 30 mW; Low: 10 mW, (switchable), at 50Ω
Spurious emissions: Following federal and national regulations
Microphone element: ATW-T341b Dynamic cardioid
Batteries: Two 1.5V AA, not included
Battery life: High: 6 hours (alkaline), Low: 8 hours (alkaline), depending on battery type and use pattern
Dimensions: ATW-T341b 237.0mm (9.33") long, 48.0mm (1.89") diameter
Net weight: ATW-T341b 284g (10.0oz.), without batteries
Accessory included: AT8456a Quiet-Flex stand clamp
