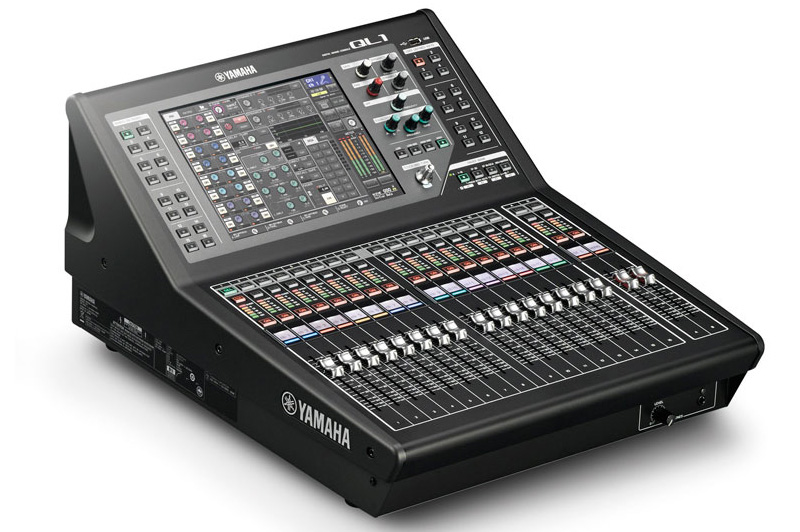

Yamaha QL1 Digital Mixer

The new QL Series is a little brother to the highly-acclaimed CL
Series, inheriting its natural sound quality, Dante networking
capability and many of its features like the Premium Rack. QL also
introduces some new talents such as built-in Dugan Automixing and Port
to Port routing which offers more flexibility, value and application for
you.

Key Features:

32 Mono + 8 Stereo Input Mix capability
16 + 2 Master Faders
16 Mic/Line inputs
8 Analog Omni Outputs
Built-in recallable HA, identical to CL and R-series
Direct file compatibility with CL. No need to use Console File Converter Software
16 Mix + 8 Matrix + Stereo + Mono outputs (Matrix can be utilized as additional Mix sends for a total of 24 Mix Outputs)
16 DCAs, 16 Mute Groups with Dimmer function
Large Touchscreen with excellent viewing angle and daylight visibility, same as CL
Touch-and-turn operation along with Selected Channel controls
Onboard Dante network with Primary/Secondary ports for redundancy or daisy chain
2 MY-Card Slots for additional I/O expansion or DSP processing such as Lake or Waves SoundGrid
8U Premium Rack featuring digital emulations of classic devices,
Rupert Neve Designs Portico 5033 5-Band EQ and 5043 Compressor, as well
as a unique Dynamic EQ
8U Effect Rack with enhanced presets for Sound Reinforcement
16U GEQ Rack featuring the Flex15 option for 32 GEQs
8 or 16 channels of Dugan Automixing. These units can be used in exchange for GEQ units
Built-in 2-Track Recording to an external USB memory stick
Control of Nuendo Live software (sold separately)
Dante Virtual Soundcard License included
QL Editor for PC/Mac and StageMix for iPad® will also be available at no charge










Sampling frequency rate (internal)
44.1kHz / 48kHz


Sampling frequency rate (external)
44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm), 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm)


Signal delay
Less than 2.5ms, INPUT to OMNI OUT, Fs= 48kHz


Fader
100mm motorized, Resolution=1024steps, +10dB to –138dB, –∞dB all faders


Total harmonic distortion
Less than 0.05% 20Hz-20kHz@+4dBu into 600Ω, INPUT to OMNI OUT, Input Gain= Min.


Frequency response
+0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, INPUT to OMNI OUT


Dynamic range
112dB typ.: DA Converter / 108dB typ.: INPUT to OMNI OUT, Input Gain = Min.


Hum & noise level (Equivalent input noise)
-128dBu typ., Equivalent Input Noise, Input Gain=Max


Hum & noise level (Residual output noise)
-88dBu, Residual output noise, ST master off


Crosstalk
-100dB*1, adjacent INPUT/OMNI OUT channels, Input Gain = Min.


Power requirements
100-240V 50/60Hz


Power consumption
135W


Dimensions
468mm(18.4in)x272mm(10.7in)x562mm(22.1in)


Net weight
14.7kg(32.4lb)


Accessories
Owner’s Manual, power cord, DVS license sheet


Options
Rackmount kit RK1, Mini-YGDAI cards *2 , Gooseneck Lamp LA1L, Nuendo Live


Others
Operating temperature range: 0 - 40℃, Storage temperature range: -20 - 60℃
