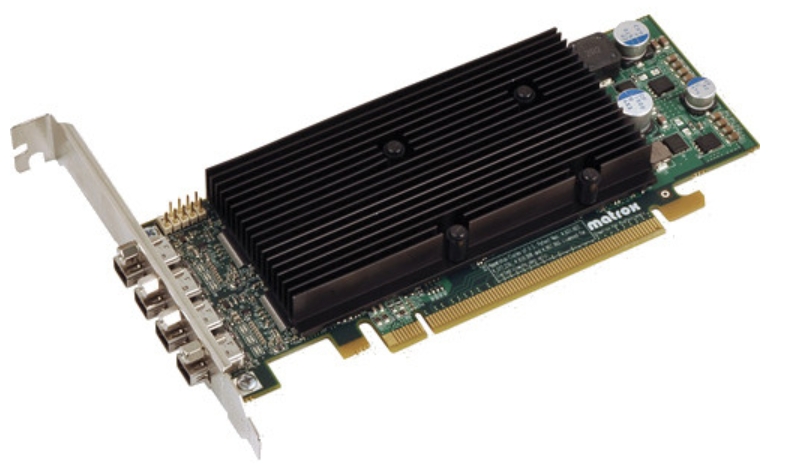

Matrox M9148 Low-Profile PCIe x16 Graphic Display Card

Matrox M9148 Overview





The Matrox M9148 Low-Profile PCIe x16 Graphic Display Card is a quad graphics card that renders pristine image quality for up to four DisplayPort monitors at resolutions up to 2560 x 1600 per output for an exceptional multi-monitor user experience. With 1 GB of memory and advanced desktop management features, the M9148 LP PCIe x16 card supports independent or stretched desktop modes and drives business, industrial and government applications with extraordinary performance. Its low-profile form factor makes it easy to integrate into a wide variety of systems. It offers multiple operating system support and can be paired with another M9148 graphics card to support up to eight DisplayPort monitors from a single system.







High-Resolution Four DisplayPort Monitor Support

Support resolutions up to 2560 x 1600 per output





Native PCI Express x16 Performance

Maximum bandwidth to ensure best performance





1 GB of Memory

For enhanced performance in demanding multi-monitor applications





Low-Profile Form Factor

To fit in a wide variety of systems; includes bracket for full-height ATX form factor





Passive Cooling and Low Power Consumption

Fanless design eliminates noise and increases product reliability





Edge Overlap New for Windows 7

Easily and intuitively adjust the number of overlapping pixels to create a seamless, unified image on up to eight edge blending projectors





Stretched and Independent Desktop Modes

Expand your desktop across multiple monitors or set each monitor independent of each other





M-Series Multi-Card Support

Add an additional M-Series card into the same system to drive up to 12 displays from two cards

Note:
Operating system, hardware and driver compatibility need to be verified for large monitor configuration arrays.





Joined Graphics Card Mode

Insert two M-Series cards into the same system to drive even more monitors across a stretched desktop

Note:
Available only under Microsoft XP and Windows 7 XDDM mode when M9188 is the additional card





Matrox Clone

View a copy of one display on the other displays





Wide Enterprise Flexibility

Unified driver package compatible with other Matrox products





Matrox PowerDesk Software

Easily configure and manage program windows on multiple monitors





Multiple Operating System Support

Display drivers for Windows 7 (32/64 bit), Windows Vista (32/64 bit), Windows XP (32/64 bit), Windows Server 2003/2008 (32/64 bit) and Linux


www.music-blvd.com $542.99 / $599
