RME Babyface 22-Channel Mobile USB Audio Interface (Snow Edition)

RME Babyface USB Audio Interface (Snow Edition) Details

The RME Babyface USB Audio Interface (Snow Edition) is a very limited edition of the RME Babyface with a white matte body and glossy white knob.


RME has given a face to digital audio. Starting with the Multiface as
first serious/professional mobile I/O solution ever we raised the bar
further and further, up to the extremely popular and successful Fireface
series. So now that the racks are filled we will start to rock your
desktop!


The Babyface is smooth on the outside for looks and feel, but has the
balls inside: latest 192 kHz AD- and DA-converters, two reference class
microphone preamps, SteadyClock - analog circuit design, features and
function are truly RME - we wouldn't give our newborn anything second
class!


That includes the new TotalMix FX, a TotalMix on steroids, with tons
of new features, improvements and 3-band parametric EQs, plus added echo
and reverb: anything you need right out of the box and with near zero
latency!


The Babyface uses RME's Hammerfall USB audio core from the Fireface
UC - another milestone in low latency audio interfaces, and will give
you outstanding performance and top sound in an ultra-portable, nicely
designed and attractively shaped enclosure.

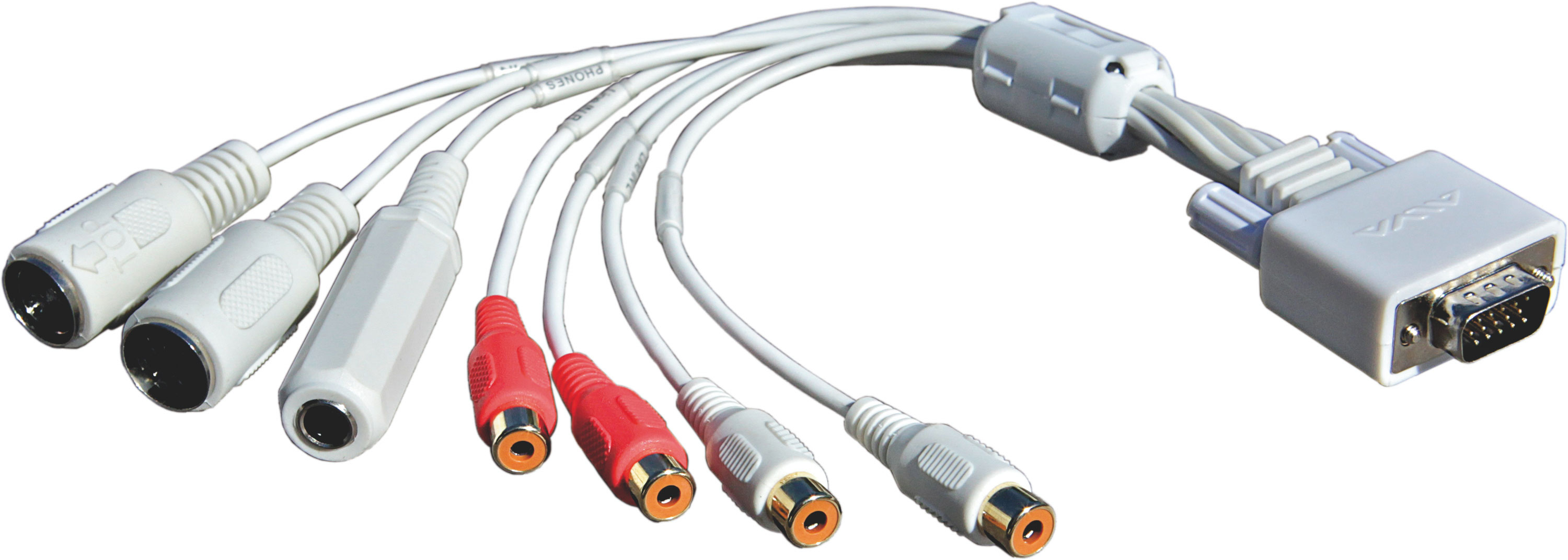

The RME Babyface USB Audio Interface (Snow Edition) comes with a
white leather Babyface carry bag, white extension and USB cables and a
black XLR breakout cable. It also includes a white unbalanced RCA
breakout cable.

RME Babyface USB Audio Interface (Snow Edition) Features

10 Input / 12 Output channels
2 x Analog Input:

2 x XLR balanced with MicPreamp and digitally controlled gain (or 2 x RCA on white cable)
1 x Hi-Z Input for instruments (alternative)


4 x Analog Output

2 x XLR balanced (or 2 x RCA on white cable)
2 x TRS (2 x Phones/Line, identical Signal)


1 x ADAT or 1 x SPDIF I/O (optical)
1 x MIDI I/O
TotalMix FX (with EQ, Reverb, Echo)

RME Babyface USB Audio Interface (Snow Edition) Specifications

Input AD: 2 x XLR (2 x Mic/Line), servo-balanced.
Output DA (Main, 2 Channels): 2 x XLR, servo-balanced
Output DA (Phones, 2 Channels): 2 x 1/4" TRS (Stereo), unbalanced (on breakout cable and interface)
Input Digital: 1 x ADAT optical or SPDIF optical
Output Digital: 1 x ADAT optical or SPDIF optical
MIDI: 1 x MIDI I/O via breakout cable (2 x 5-pin DIN jacks), for 16 channels low jitter hi-speed MIDI
Dynamic range AD: 108 dB RMS unweighted, 111 dBA
THD AD: < -100 dB (< 0.001 %)
THD+N AD: < -98 dB (< 0.0012 %)
Crosstalk AD: > 110 dB
Dynamic range DA: 112 dB RMS unweighted, 115 dBA
THD DA: < -104 dB (< 0.00063%)
THD+N DA: < -100 dB (< 0.001%)
Crosstalk DA: > 110 dB
Maximum Input Level for 0 dBFS: +12 dBu
Maximum Output Level @ 0 dBFS Line: +15 dBu
Maximum Output Level @ 0 dBFS Phones: +8 dBu
Sample rate internally: 32, 44.1, 48, 64, 88.2 kHz, 96 kHz, 176.4, 192 kHz
Sample rate externally: 28 kHz - 200 kHz
Frequency response AD/DA, -0.5 dB: 5 Hz - 22 kHz (sf 44.1 kHz)
Frequency response AD/DA, -0.5 dB: 5 Hz - 34 kHz (sf 96 kHz)
Frequency response AD/DA, -1 dB: 5 Hz - 50 kHz (sf 192 kHz)
Jitter: Typical < 1 ns for internal, ADAT in
Jitter suppression: >30 dB (2.4 kHz)
Jitter sensitivity: PLL operates error-free even at 100 ns
Driver support

Windows 7 / Vista / XP SP2 (32 & 64 bit)
Apple Mac OS X 10.5 or up (Core Audio)


System Requirements: Computer with at least Pentium Core 2 Duo CPU (see the list of Tested Systems with USB chipsets).
