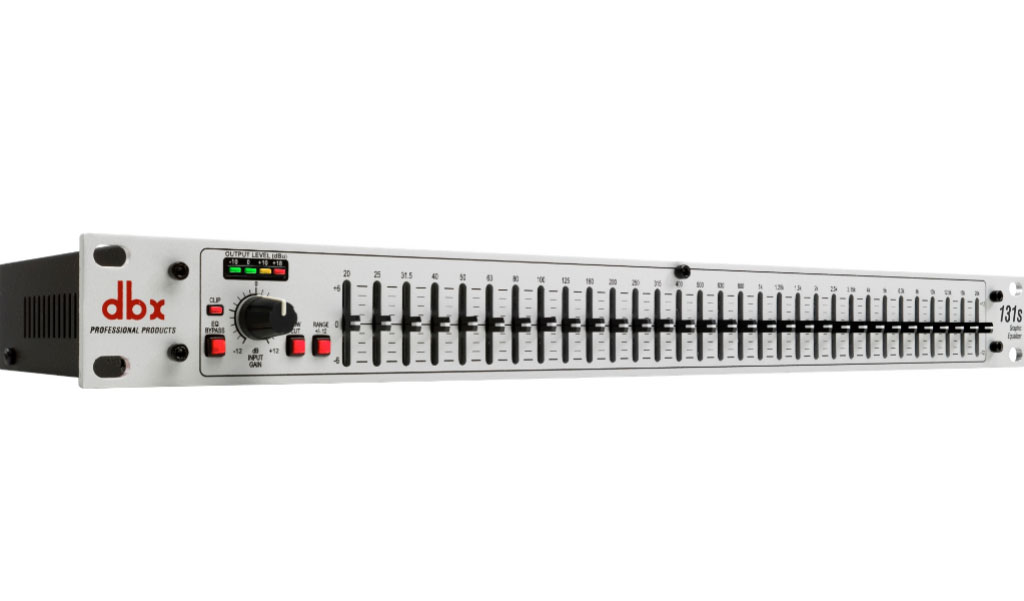

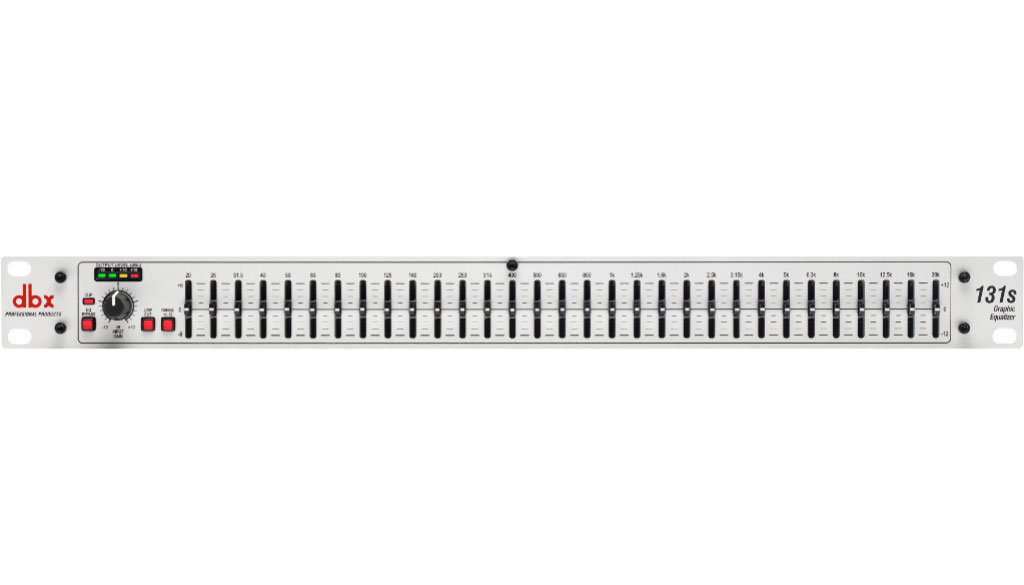

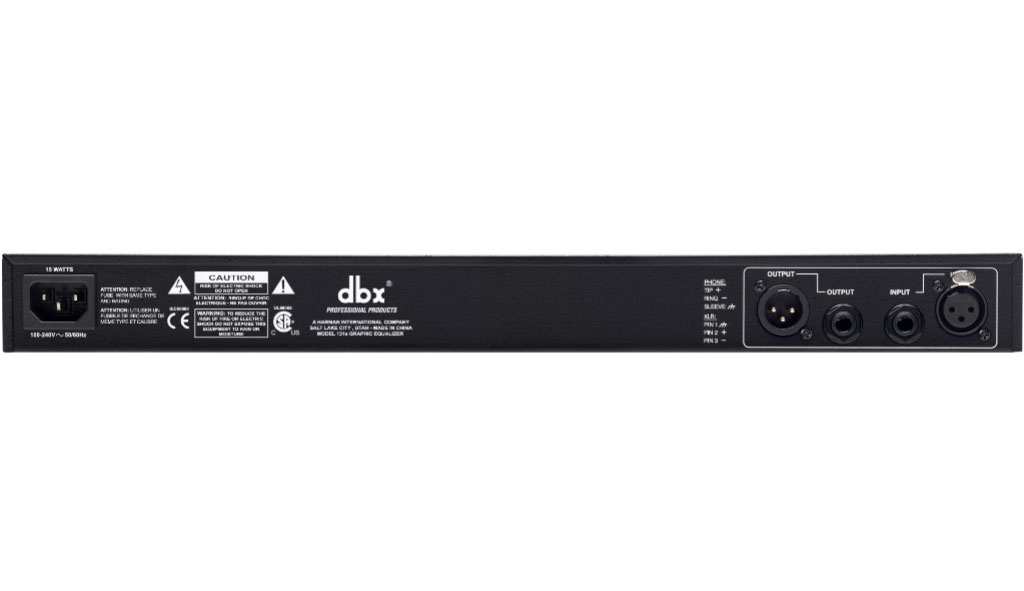

dbx 131s Single Channel 31-Band Graphic Equalizer

Exceptional sound and rugged reliability.




When the pros need an EQ, they turn to dbx. With a
proven track record that spans four decades, dbx EQs are the industry
standard for touring, studios, and audio installations. With the dbx
heritage of revered pro EQs, the 131s meets the needs of the most
demanding sound reinforcement environments, while offering the
simplicity of straightforward controls.

The dbx 131s includes a
single 31-band channel of 1/3-octave equalization, ±12 dB input gain,
switchable ±6 dB or ±12 dB boost/cut range, 20mm nonconductive sliders,
an intuitive user interface, and output level metering. From its
extended 10Hz to 50kHz frequency response and 110 dB dynamic range to
the quality componentry and meticulous attention to detail, the 131s
offers exceptional sound and rugged reliability that guarantees you will
always sound your best.

Sure to find a home in the studio, on
tour and with installed sound venues, the dbx 131s is destined to take
its rightful place in the lineage of great dbx signal processors that
are the professional's choice in signal processing. With such affordable
quality, there's no longer any excuse for compromising your sound.




Features

Single 31-band, 1/3-octave Constant Q frequency bands
Switchable boost/cut ranges of ±6 or ±12dB
12dB per octave, 3dB down @ 50Hz low-cut filter
Front panel bypass switch
±12 dB input gain range
4-segment LED ladders for monitoring output levels
XLR and TRS Inputs and Outputs
Frequency Repsonse of 50kHz
Dynamic range of greater than 108dB




With such affordable quality, there's no excuse for compromising your sound.







131s Single Channel 31-Band Graphic Equalizer Specifications:

Input
Connectors: 1/4" TRS, female XLR (pin 2 hot)
Type: Electronically balanced/unbalanced, RF filtered
Impedance: Balanced 40k ohm, unbalanced 20k ohm
Max Input Level: >+21dBu balanced or unbalanced
CMRR: >40dB, typically >55dB at 1kHz

Outputs
Connectors: 1/4" TRS, male XLR (pin 2 hot)
Type: Impedance-balanaced/unbalanced, RF filtered
Impedance: Balanced 100 ohm, unbalanced 50 ohm
Max Output Level: >+21dBu balanced/unbalanced into 2k ohm or greater
>+18dBm balanced/unbalanced (into 600 ohm)

System Performance
Bandwidth: 20Hz to 20kHz, +0.5/-1dB
Frequency Response: <10Hz to >50kHz, +0.5/-3dB
Dynamic Range: Typicall >112dB
Signal-to-Noise: Typically >95dB
THD+Noise: <0.003%
Interchannel Crosstalk: <-90dB, 20Hz to 20kHz

Function Switches
EQ Bypass: Bypasses the graphic equalizer section in the signal path
Low Cut: Activates the 50Hz 12dB/octave high-pass filter
Range: Selects either +/- 6dB or +/- 12dB slider boost/cut range

Power Supply
Operating Voltage: 100VAC-240VAC 50/60Hz
Power consumption: 15W
Mains Connection: IEC receptacle

Physical
Weight: 4.8 lbs. (2.17 kg) Shipping weight 6.2 lbs. (2.81 kg)
Dimensions: 1.75" (4.44 cm) H x 6"(15.24 cm) D x 19" (48.26 cm) W
