TASCAM US-366 4X6 or 6X4 USB Audio Interface

USB 2.0 audio interface with on-board DSP mixer and up to 96/192kHz recording.




The Tascam US-366 USB audio interface is made for professionals, and offers a combination of 4 in and 6 out, or 6 in and 4 out with its unique I/O structure. The US-366 also features an on-board DSP mixer with high-quality DSP effects perfect for sweetening any project.

High-Quality HDDA – High Definition Discrete Architecture – Mic Pre-Amplifiers
To ensure superior sound, TASCAM organized months of tests and trials to design the HDDA mic pre-amplifier. Manufactured with a discrete structure and select premium parts, the HDDA pre-amp achieves a wide frequency response (10Hz to 68kHz), high S/N ratio, low noise and low THD+N.


Up to 192kHz/24bit Recording
In the process of creating music, many engineers have started utilizing high-resolution formats while recording to ensure the best quality sounds. The US-366 is suited perfectly for these high-quality minded recordings. (Included CUBASE LE can not record by 192kHz)

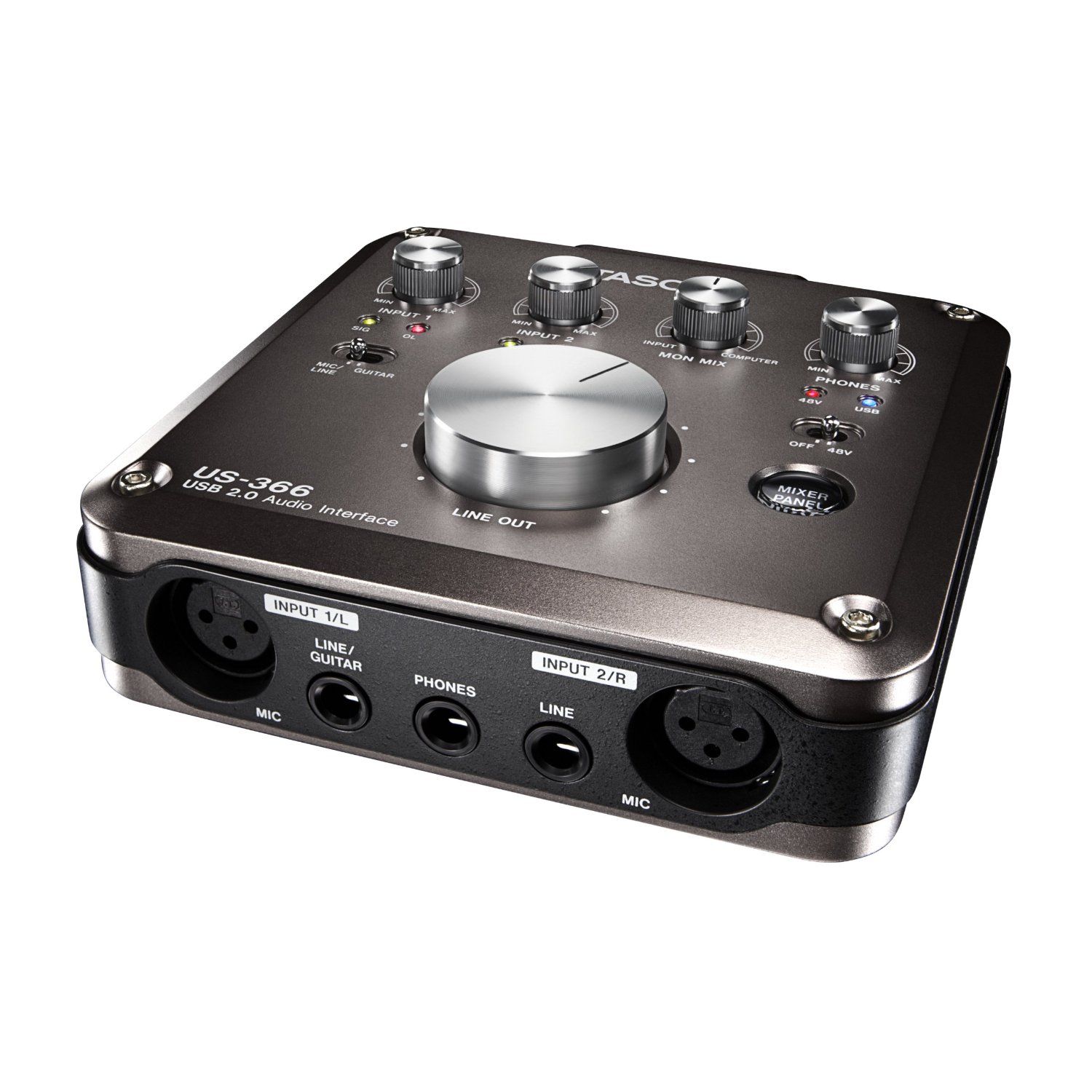

Two XLR/TRS (MIC/LINE) Inputs with Full +48V Phantom Power Supply
The US-366 is designed with two XLR with +48V phantom power and two TRS inputs. Having both options for condenser mics and line level inputs ensures you are getting the best possible sound and lowest-noise when recording. In addition, INPUT-1 can connect any high-impedance equipment directly, like a guitar.


DSP Mixer Designed for Music Creation and Podcasting
The DSP mixer function provides a multi-track mode and a stereo-mix mode.

Multi-track Mode
The multi-track mode is ideal for music creation. This mode delivers independent monitor-mixing from a send-level like an inline-console to a PC. In addition, this mode delivers monaural-monitoring.

Stereo-mix Mode
The stereo-mix mode makes podcast recording or broadcasting convenient and easy. An output audio signal from any PC can relay that signal back to the PC again via your DSP mixer. Any BGM from a PC can mix your voice by microphone then the mixed sound will transfer back to the PC again.


On-Board Effects Supports High-Quality Recording (Send Effects and Insert Effects)
The US-366 is designed with on-board effects such as compressor, 3-band EQ and Reverb all located on-board the DSP. While recording, you can use the input effects for any input signal and the reverb effect on any monitoring signal at the same time. (DSP effects can use on 44.1/48kHz operating)

Insert Effects
The input effects can be selected from compressor or 3-band EQ. Input effects can use various recording. For example, while recording vocals you can boost your high-frequency range with the 3-band EQ. Also, the compressor effect is very convenient at recording especially for bass guitar, vocal and drums.

Send Effect
The send effect include just reverb. The reverb effect is necessary articles at recording. Monitoring sound will get wet-sound by this reverb effect, but a send-sound to a PC keeps just dry sound.

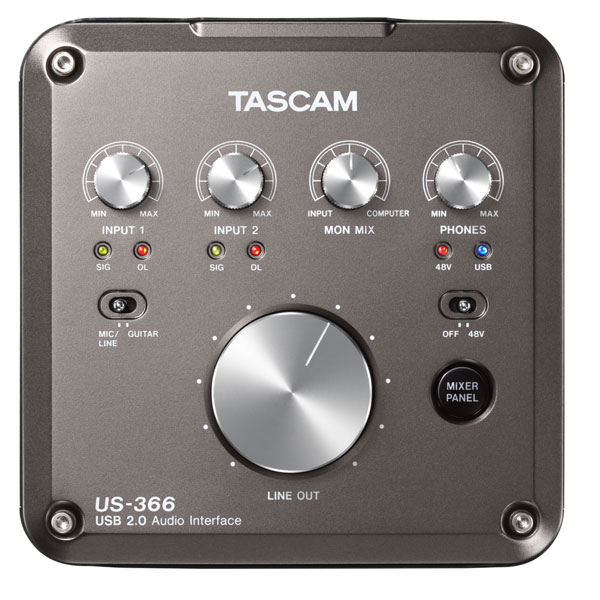

Dedicated MIXER PANEL Button Recalls The DSP Mixer with One-Click
The US-366 is built with a "MIXER PANEL" button located conveniently on top. This button provides a one-click recall function for the DSP-mixer. When pushed a second time the mixer panel will be conveniently hidden.

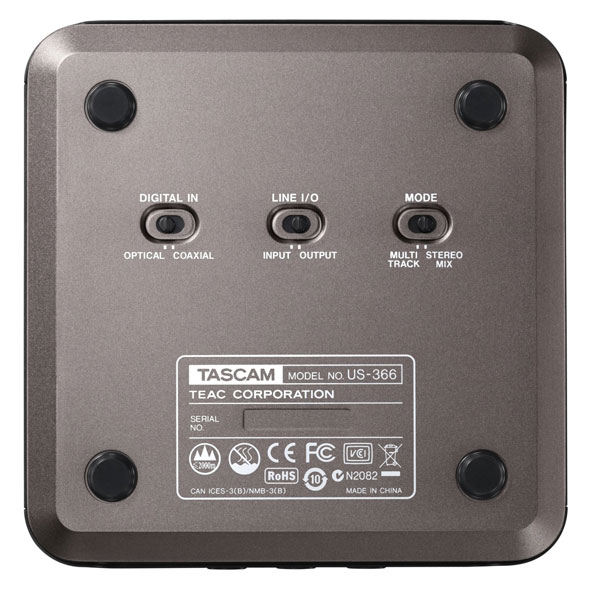

LINE 3-4 Analog Connectors – Select Between Input or Output, Up to Six Inputs or Six Outputs
The US-366's LINE 3-4 connectors can be selected between input and output to customize TASCAM's US-366 to any recording environment. When "INPUT" is selected, you can connect an abundance of line-level audio devices. When selecting "OUTPUT", connect to devices such as multiple headphone amplifiers. This system provides dedicated monitoring management for each player.
(When operating on 192kHz, LINE 3-4 connectors outputs same signal as digital output.)

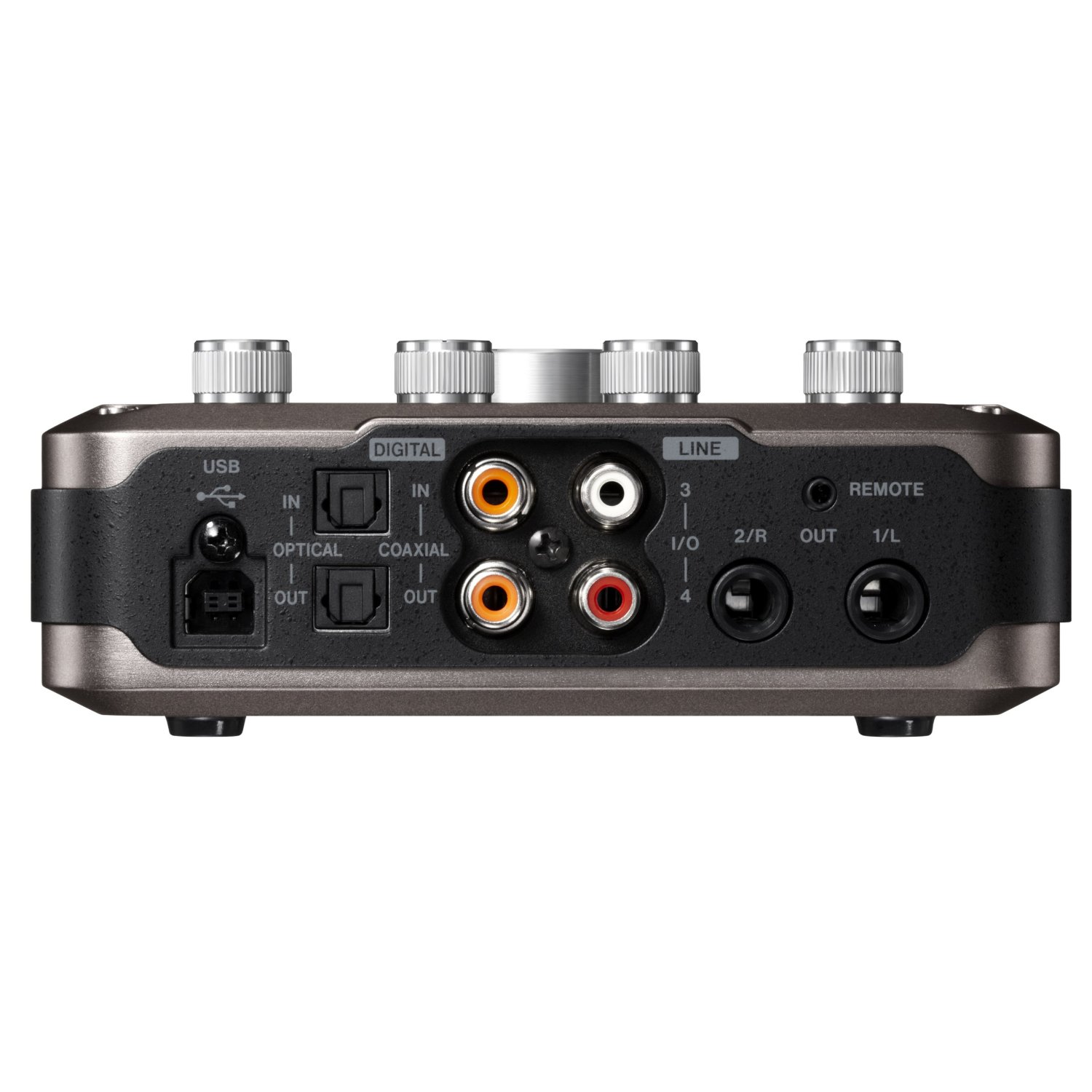

Coaxial/Optical Digital Inputs/Output
The US-366 has two types of digital input/output connectors (RCA Coaxial and TOS-link Optical). Two outputs can transmit the same signal at the same time but when input is selected, only one connector is available at a time.



Features

High-quality HDDAHigh Definition Discrete Architecture) mic pre-amps
Up to 24bit/96kHz recording
Two XLR/TRS (MIC/LINE) inputs with full +48V phantom power supply
Low-latency monitoring via DSP mixer
On-board digital mixer(DSP mixer) delivers two operation modes
On-board digital effects(DSP effects)
Dedicated "MIXER PANEL" button recalls DSP mixer with one-click
Oversized LINE OUT volume knob
Two TRS analog balanced outputs
Two RCA analog unbalanced outputs
18mW+18mW headphone output
Desktop design provides highly stability and usability
Aluminum body provides premium looks and luxurious feel
USB bus-powered for mobile recording
Steinberg Cubase LE6 bundle
LINE 3-4 connectors can select between input or output, up to six inputs or six outputs(When operating on 192kHz, LINE 3-4 connectors outputs same signal as digital output.)
Coaxial/Optical digital input and output (one input connector available at a time)




Four or six inputs, you choose what you need. Order the US-366 today!


US-366 4X6 or 6X4 USB Audio Interface Specifications:


Supported sampling frequency
44.1/48/88.2/96/176.4/192kHz
Supported bit rate
16/24bit (Internal operation is 24bit)
Analog audio Inputs
MIC IN
(INPUT 1/L, 2/R)
XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
Input impedance
2.2kohms
Nominal input level
(INPUT:MAX) -65dBu
Nominal input level
(INPUT:MIN) -22dBu
Maximum input level
(INPUT:MIN) -6dBu
LINE IN (INPUT 1/L, 2/R)
6.3mm(1/4") TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
Input impedance
15kohms(LINE)/1Mohms(GUITAR)
Nominal input level
(INPUT:MAX) -39dBu(LINE)/-55dBV(GUITAR)
Nominal input level
(INPUT:MIN) +4dBu(LINE)/-12dBV(GUITAR)
Maximum input level
(INPUT:MIN) +20dBu(LINE)/+4dBV(GUITAR)
LINE IN (LINE I/O 3-4)
RCA pin-jack (When set to "INPUT" at LINE I/O switch) -
Input impedance
15kohms
Nominal input level
-10dBV
Maximum input level
+6dBV
Analog audio outputs
LINE OUT (LINE OUT 1/L, 2/R)
6.3mm(1/4") TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
Output impedance
100ohms
Nominal output level
+4dBu
Maximum output level
+20dBu
LINE OUT (LINE I/O 3-4)
RCA pin-jack
(When set to "OUTPUT" at LINE I/O switch)
Output impedance 200ohms
Nominal output level -10dBV
Maximum output level +6dBV
Digital audio inputs
COAXIAL
(DIGITAL IN) RCA pin-jack
(When set to "COAXIAL" at DIGITAL IN switch) -
Format IEC60958-3(S/P DIF)
OPTICAL
(DIGITAL IN) TOS (JEITA RC-5720C)
(When set to "OPTICAL" at DIGITAL IN switch) -
Format IEC60958-3(S/P DIF)
Digital audio outputs
COAXIAL
(DIGITAL OUT) RCA pin-jack
Format IEC60958-3(S/P DIF)/ IEC60958-4(AES/EBU)*
OPTICAL
(DIGITAL OUT) TOS (JEITA RC-5720C)
Format IEC60958-3(S/P DIF)/ IEC60958-4(AES/EBU)*
*Output format can be selected ”S/P DIF” or ”AES/EBU” on INTERFACE tab of DSP mixer.
PHONES

Connector 6.3mm(1/4") stereo phone jack
Maximum output level 18mW+18mW or more(THD+N 0.1% or less, 32ohms loaded)
USB
Connector USB B type 4-pin
Format USB2.0 HIGH SPEED mass storage class
REMOTE
Connector 2.5mm TRS-jack
Supported protcol Dedicated protocol for RC-3F
(Mackie Control or HUI emulation) -
Power
USB bus powered (5V, Max 500mA)
Power consumption
2.5W
Dimensions
140(W)×42(H)×140(D)mm
Weight
500g
Operating temperature
5-35˚C
Bundle software
Cubase LE6
Accessories
CD-ROM (includes dedicated driver), USB cable (1.5m), DVD-ROM (Cubase LE6),
Insert sheet for Cubase LE, Warranty card
Audio performance

ADC chip set dynamic range 102dB *1
DAC chip set dynamic range 106dB *2
Frequency response
Mic preampr 10Hz to 68kHz, +0.5/-3.0dB
MIC IN to LINE OUT 10Hz to 68kHz, +0.5/-3.0dB
MIC IN to PHONES 10Hz to 30kHz, +0.5/-1.0dB
THD 0.0045% or less *3
S/N ratio 98dB or more *4
EIN -120dBu or less *5
Operating system requirements

Windows
OS Windows XP:32bit SP3 or more, 64bit SP2 or more
Windows 7:32bit, 64bit
Windows 8:32bit, 64bit
DRIVER ASIO2.0, WDM(MME)
Macintosh
OS Mac OS X Snow Leopard(10.6.8), OS X Lion, OS X Mountain Lion
DRIVER Core Audio
